TRANSDUCERS direct TD1A Series Quick Start Manual

Alloy fill melt pressure transducers
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

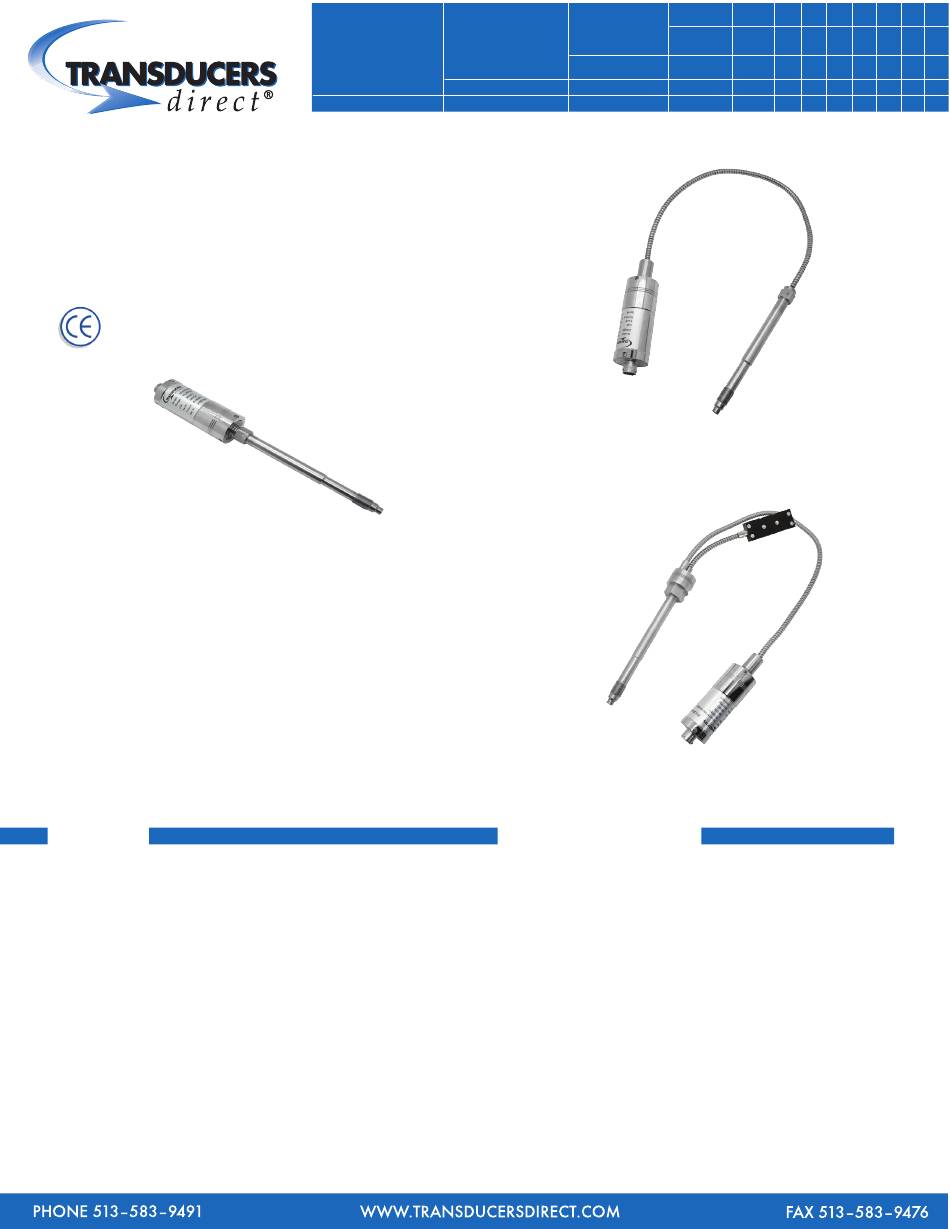

Introducing the TD1A, 2A, 3A
Series Alloy Fill Melt Pressure
Transducers
SERIES: TD1A-Rigid Stem
FEATURES
• Standard 3.33mV/V, 6 pin Bendix Connector
• 6" Stem (standard), 18" Flex (standard) (TD2A)
• 0.5% or 0.25% Accuracy
• Ranges from 500 to 30,000 psi
• 750º F (400º C) Diaphragm Rating
• Thermocouple Type J (TD3A)
• 80% Output Calibration
• Standard Diaphragm Type 17-4 SS with
Titanium-Aluminum Nitride Coating
• Non-Mercury Alloy Fill
FOR INDUSTRIAL AND HOME AUTOMATION
SERIES: TD2A-Stem/Flex
SERIES: TD3A-Stem/Flex with Thermocouple
TD1A, 2A, 3A OPTIONS
• Connector: 8 pin Screw
• 12" Stem, 30" Flex
• Outputs: 4-20mA, 0-10 VDC
INNOVATIVE SENSORS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD1A Series and is the answer not in the manual?

Questions and answers

Related Manuals for TRANSDUCERS direct TD1A Series

Summary of Contents for TRANSDUCERS direct TD1A Series

  • Page 1 INNOVATIVE SENSORS FOR INDUSTRIAL AND HOME AUTOMATION Introducing the TD1A, 2A, 3A Series Alloy Fill Melt Pressure Transducers SERIES: TD2A-Stem/Flex SERIES: TD1A-Rigid Stem SERIES: TD3A-Stem/Flex with Thermocouple TD1A, 2A, 3A OPTIONS FEATURES • Standard 3.33mV/V, 6 pin Bendix Connector • Connector: 8 pin Screw •...

  • Page 2: Specifications

    Specificationsmay change without notice. The informationwe supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use. While we provide application assistance REV: 10.21 personally, through our literature and the Transducers Direct web site, it is up to the customer to determine the suitability of the product in the application.

  • Page 3: Mechanical Installation

    INNOVATIVE SENSORS FOR INDUSTRIAL AND HOME AUTOMATION MECHANICAL INSTALLATION 1. MOUNTING HOLE All holes must be concentric within 0.002” 1/2-20 UNF-2A M18 x 1.5 (STANDARD) AVAILABLE DRILL KITS : Page 4 Millimeters 2. PROTECTIVE CAP Millimeters 1/2-20UNF-2A Leave cap on until installation - FRAGILE tip 45°...
  • Page 4 INNOVATIVE SENSORS FOR INDUSTRIAL AND HOME AUTOMATION DIMENSIONS TD3A TD2A TD1A 10.5 10.5 10.5 7.8 - 0.05 7.8 - 0.05 7.8 - 0.05 10.7 10.7 10.7 12.7 Optional M18 x 1.5 12.7 12.7 15.5 9.8 - 0.05 31.8 17.5 12.7 ®...

  • Page 5: Troubleshooting

    INNOVATIVE SENSORS FOR INDUSTRIAL AND HOME AUTOMATION GENERAL OPERATION GUIDES 1. START UP Before starting the extruder drive, ensure that the extruder is at operational temperature and plastic at tip is mol- ten. A cold start can literally rip off the fragile diaphragm. 2.

This manual is also suitable for:

Td2a seriesTd3a series
