The ASK-4 #101-E is a single zone audio monitoring system designed to interface with a DVR,
VCR or other recording devices that accept line level input. The APR-1 Audio Base Station
contains a built-in 3" speaker and volume control for producing live audio and audio playback.
®
The Verifact E microphone is designed for outdoor or moist environment and can be mounted
on a single gang Bell Box (included).
VERIFACT™ E MICROPHONE

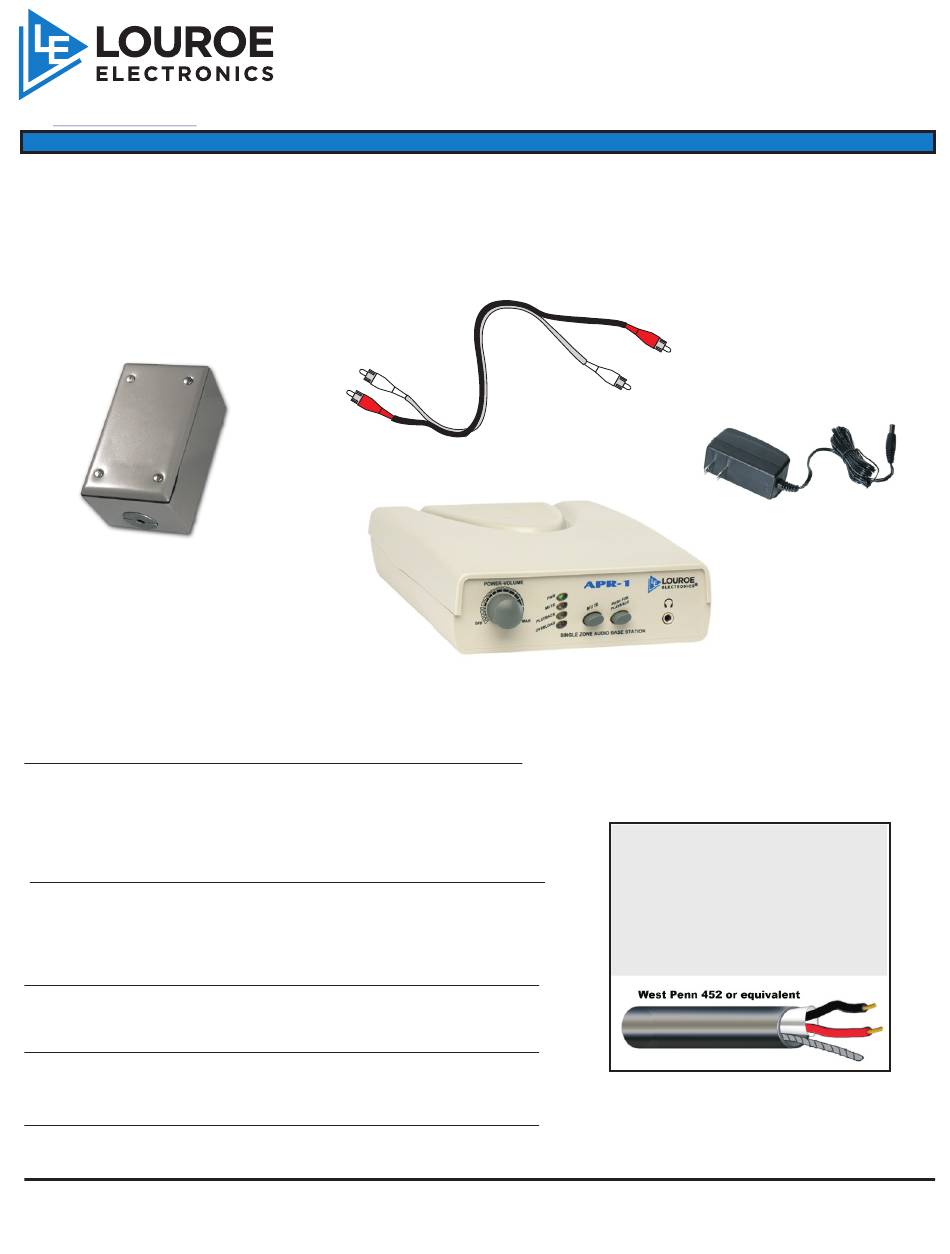

Contents of Kit
APR-1
®
Verifact E Microphone
AD-1
Dual RCA Cable
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406
®
INSTALLATION AND OPERATING INSTRUCTIONS
DUAL RCA Cable
Description

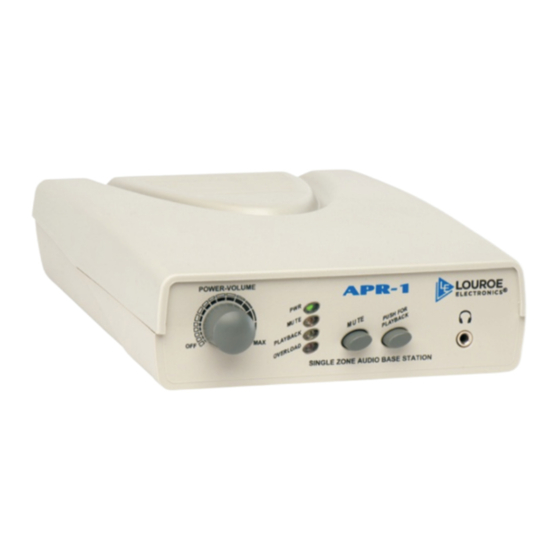

Audio Base Station. Used for listening to live
audio from microphone, as well as
playback from DVR's, VCR's or other external
audio sources.
UL® listed
Electret condenser microphone with preamp.
Picks up normal sounds 15' away (wall
mounted) or within a 30' diameter (ceiling
mounted). May be located Up to 1000' from
APR-1 Base Station. UL® listed
UL® listed AC ADAPTER.
Supplies 12 Vdc to APR-1 and
Microphone.
RCA cable for connections to a DVR/VCR or
other audio devices that accept line level input
®
website: www.louroe.com
ASK-4 #101E
AUDIO MONITORING SYSTEM
APR-1 AUDIO BASE STATION
WIRING REQUIREMENTS
e-mail: sales@louroe.com
Page 1 of 8
Page 1 of 8
®
AD-1
2 Conductor shielded cable, 22
gauge with a 24 gauge drain
wire.
NOTE: Unshielded cable is not
satisfactory for audio
systems.
TEL (818) 994-6498 FAX
ASK4_101E_inst 2/15
