Summary of Contents for Kellfri 27-EA52

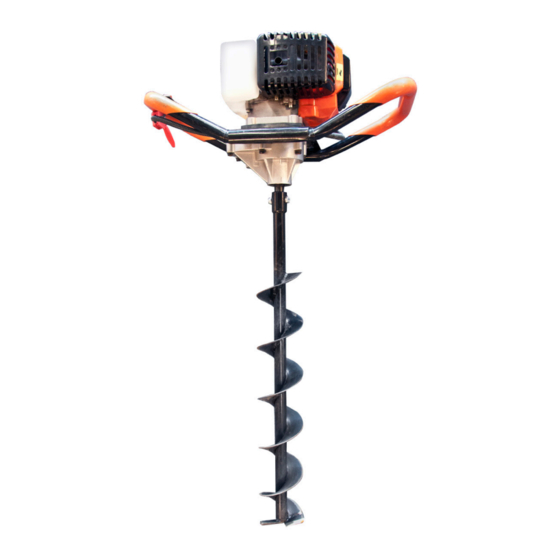

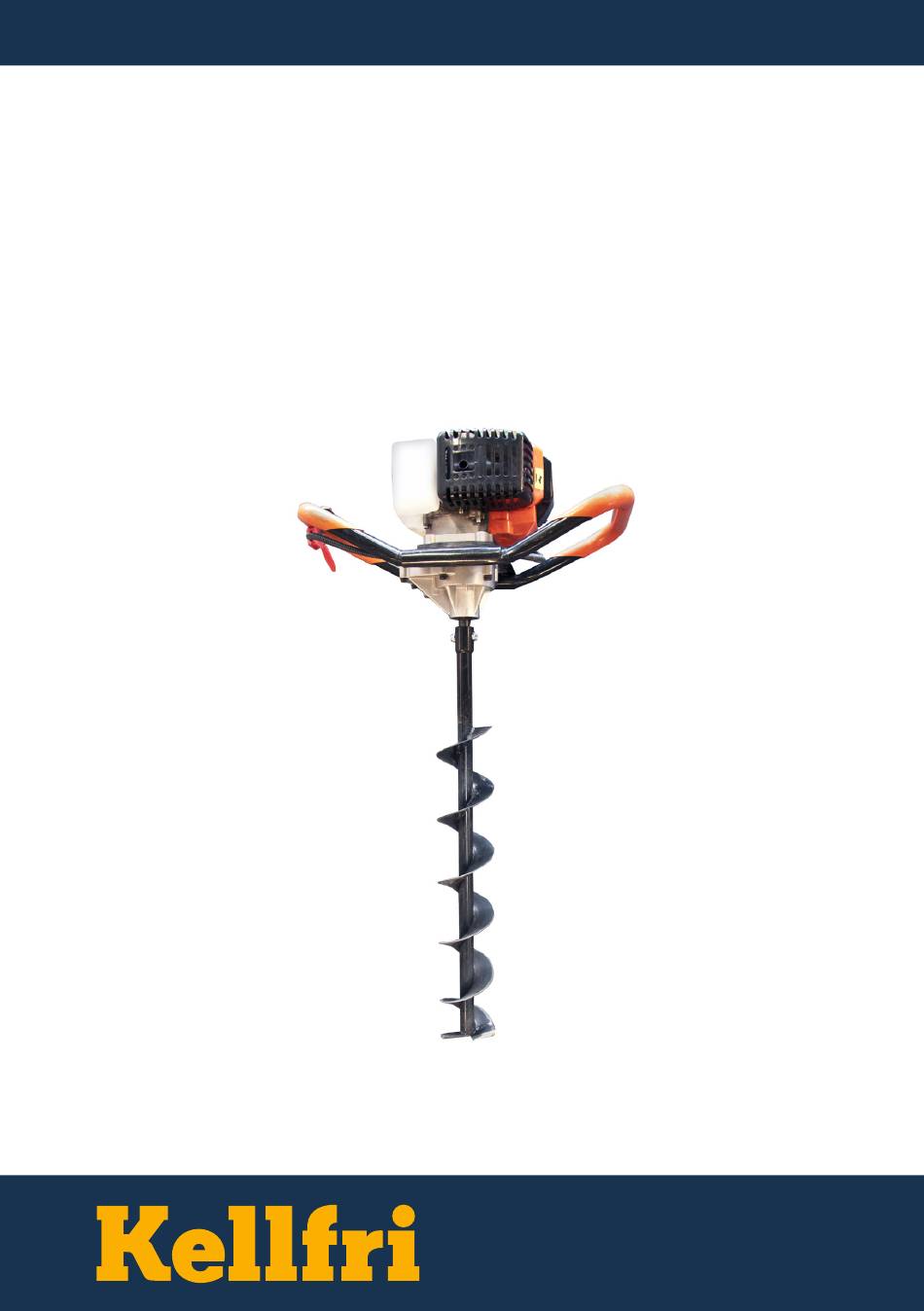

- Page 1 27-EA52 EARTH AUGER Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. Please note that the information in this document is general and may not pertain to your particular product. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511-242 50 The safety instructions can also be downloaded from the Kellfri website: www.kellfri.co.uk... -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product and only use it in the way described in the operating manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: Product Safety Information
PRODUCT SAFETY INSTRUCTIONS • Carefully read the operating manual before using the machine! • Do not run the engine in an enclosed space, as the exhaust fumes contain carbon monoxide, which is lethal if inhaled. Not for indoor use. • The machine may only be used in the way described in this operating manual. -
Page 9: Warning Labels
WARNING LABELS Make sure warning labels are always visible and clean them when necessary. Do not use a high- pressure washer directly on the warning label. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 10: Steps To Take Before Use
STEPS TO TAKE BEFORE USE • Fill with fuel. Ensure that you use the right mix (25:1) of petrol and 2-stroke oil to avoid damaging the engine. • Inspect the work area before starting work and remove objects that can cause accidents. Make sure that there are no underground power lines or water pipes in the area to be drilled. -
Page 11: Mounting The Drill
MOUNTING THE DRILL Connect the drill to the engine’s drive shaft, attach and secure with nut and bolt and tighten. DRILLING 1. Hold the earth auger with both hands. Hold the auger steadily in place so that you do not spin when the drill tip rotates. The auger can also be used by two people, one on each side. -
Page 12: Service And Maintenance
• Never use dirty oil/fuel as this can lead to serious damage of the engine. • Always check the condition of the drill to be used. For spare parts: Contact Kellfri Service MAINTENANCE MEASURE BEFORE USE After 10 hours... -
Page 13: Inspection, Cleaning And Replacement Of Spark Plugs
TROUBLESHOOTING CAUSE MEASURE The machine does • The fuel valve is closed • Open the valve not start • The fuel tank is empty • Fill the tank with fuel • The choke valve is open • Close the choke valve •... -
Page 14: Exploded Diagram Of Engine
ENGINE... -
Page 15: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. The manual can also be downloaded from manual.kellfri.co.uk... -
Page 16: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
