Summary of Contents for Tomar 948L-DCP

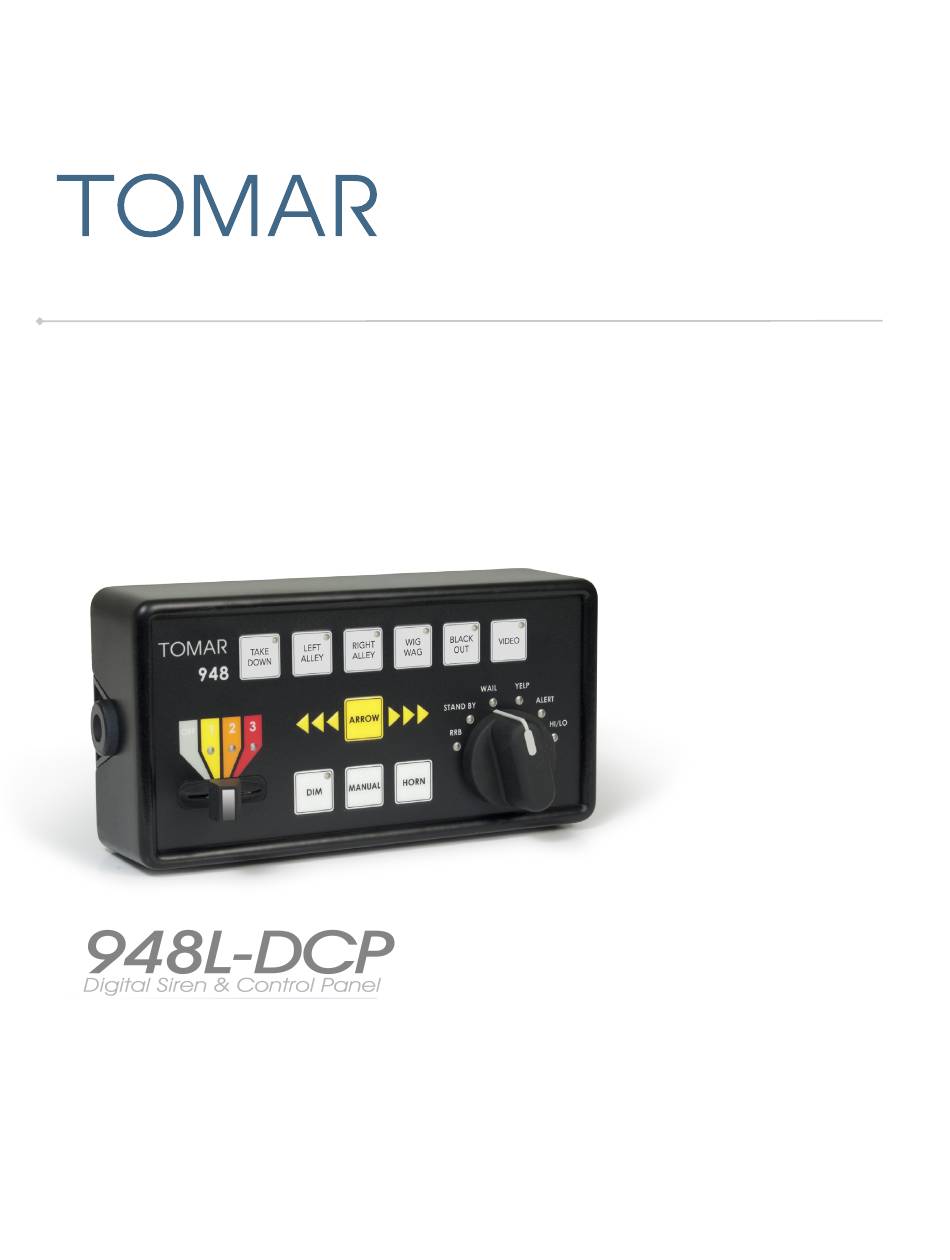

- Page 1 Instruction Manual IS0948L-01 07.30.2013 TOMAR Electronics, Inc. 2100 W. Obispo Ave. Gilbert, AZ 85233 USA 800.338.3133 ph 800.688.6627 fax www.tomar.com...

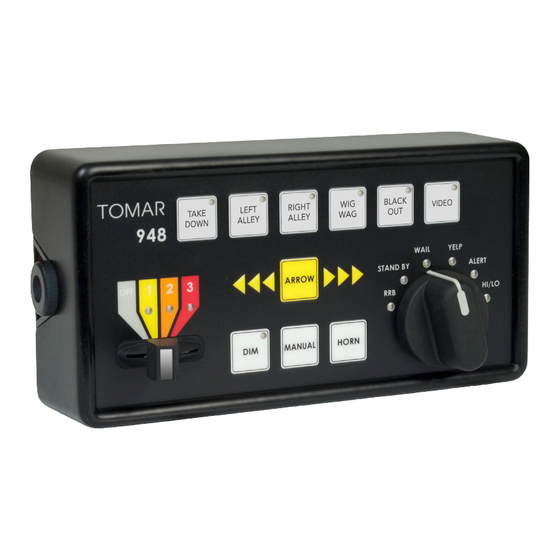

- Page 2 SWITCH FUNCTIONS: The 948L-DCP is a digital output switch interface that can be used to directly control a Tomar 930L or 970L series lightbar equipped with a digital cable, or the 940-AMP. Switch Functions When Directly Controlling a Lightbar Auxiliary Switch 1...
- Page 3 DIM Switch Toggle-ON/OFF and Illuminated when low intensity activated PROGRAMMING THE 948L-DCP: To enter Programming Mode set the Rotary Switch to STAND-BY, press and hold the MANUAL and HORN buttons simultaneously for 2 seconds . AUXILIARY 1 through 6 will flash 3 times to indicate...
- Page 4 Programming AUX Switch Functionality: Press the individual AUX switch you wish to change. The default for AUX switches 1 through 5 is ON/ OFF, pressing a switch once will change the function to MOMENTARY, a second press will change it to TIME DELAY, a third press back to ON/OFF.
- Page 5 Attach the 948L-DCP to be programmed to the SLAVE port on the 940-AMP using a CAT5 cable. The AUX 1 indicator led on the SLAVE 948L-DCP will flash indicating the unit is waiting to receive a program. Press the MANUAL button on the MASTER 948L-DCP, AUX 1-6 led indicators on the MASTER 948L-DCP will flash three times to indicate the program has been sent.
