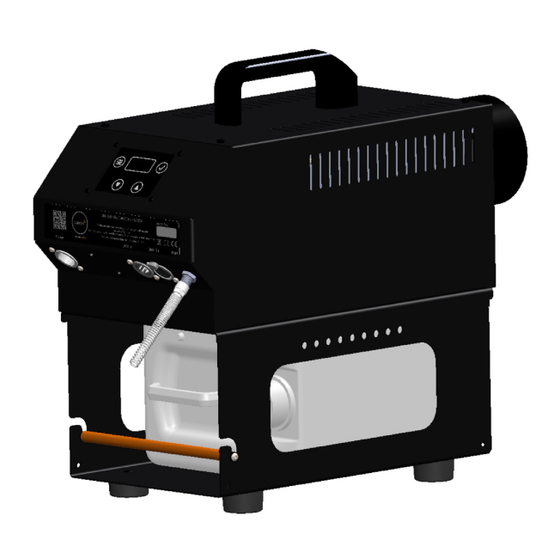

Summary of Contents for Froggy's Fog firebase SG-1700
- Page 1 Instruction Manual SG-1700/3100 Smoke Generator Froggys Fog 302 Rutherford Lane Columbia, TN 38401 615-469-4906 sales@froggysfog.com...
-
Page 2: Table Of Contents
SG-1700/3100 Smoke Generator __________________________________________________________________________ Table of Contents INTRODUCTION .......................... 2 PACKAGE CONTENTS ........................2 SAFETY INSTRUCTIONS ....................... 3 MACHINE DIAGRAM ........................4 PREPARATION ..........................5 5.1........................5 ELECTION OF THE SITE 5.2........................5 HANGING THE CANISTER 5.3........................... 5 UCTING ADAPTER 5.4. -
Page 3: Introduction
SG-1700/3100 Smoke Generator __________________________________________________________________________ 1. Introduction The SG-1700 and SG-3100 are powerful fog machines with classic accumulating evaporators. The large storage volume allows large amounts of fog to be generated. Likewise, the smallest fog clouds can be generated. The SG-3100 also has an alternating nozzle system. Here, a choice can be made between a wide-jet nozzle and a noise-reducing nozzle. -
Page 4: Safety Instructions
SG-1700/3100 Smoke Generator __________________________________________________________________________ 3. Safety instructions • Very hot steam escapes from the mist outlet. Caution: Danger of burns! During the fogging process, very hot fluid droplets may occasionally escape from the fog outlet opening. Therefore, there must be no persons or heat-sensitive objects within 1.5 m from the fog outlet opening. -
Page 5: Machine Diagram
SG-1700/3100 Smoke Generator __________________________________________________________________________ 4. Machine Diagram FRONT VIEW REAR VIEW... -
Page 6: Preparation
SG-1700/3100 Smoke Generator __________________________________________________________________________ 5. Preparation 5.1. Selection of the site The location where the SG-1700/3100is operated must be Have good ventilation, with cold and fog-free air Be dry Be vibration and shock free Consist of a non-flammable footprint Be far enough away from easily flammable objects Have an ambient temperature between 5 °C and 45 °C Have a relative humidity of less than 80%. -
Page 7: Fluid Selection
SG-1700/3100 Smoke Generator __________________________________________________________________________ screw the new nozzle onto the nozzle adapter. The nozzle should be screwed on tightly without overtightening the thread. If leaks occur at the copper sealing ring, tighten the nozzle again. If necessary, replace the sealing ring if it is worn. 5.5. -
Page 8: Operation In Stand-Alone Mode
SG-1700/3100 Smoke Generator __________________________________________________________________________ The SG-1700/3100is operated via the four keys (menu, minus, plus, confirmation) and the OLED display. The menu field tabs are in the corners of the display, and the value field, which displays the value of the selected menu field, is in the center. The menu key is used to select the individual menus counterclockwise. -
Page 9: Operation Via Modbus Rtu
SG-1700/3100 Smoke Generator __________________________________________________________________________ 6.4. Operation via Modbus RTU When operating via Modbus RTU, the XLR input (2) must first be set Modbus (see chapter Options). interface is designed as RS485 half-duplex connection. The communication parameters of the connection can be set in the "Modbus" submenu. First, the Modbus menu item must be selected. -
Page 10: Operation Via Cable Remote Control
SG-1700/3100 Smoke Generator __________________________________________________________________________ 6.5. Operation via cable remote control When operating via the cable remote, the XLR input (2) must first be set to Remote (see chapter Options). After plugging in the cable remote control, SG-1700/3100automatically recognizes that an analog cable remote control has been plugged in. -
Page 11: Operation Via The Internal Timer
SG-1700/3100 Smoke Generator __________________________________________________________________________ In the Remote submenu, the menu fields are replaced. The channel (key on the handheld transmitter) can be selected at the top left. At the bottom left, a new hand-held transmitter is taught-in and at the bottom right, the taught-in hand-held transmitters are deleted again. -
Page 12: Options Menu Tab
SG-1700/3100 Smoke Generator __________________________________________________________________________ the waiting time can be set in 0.1 minute ( 6 sec.) steps. Analogously, the fogging time can be set in steps of seconds at the bottom right. To activate the timer, the confirmation key can be pressed for both the waiting time or the fogging time. -
Page 13: Full Power
SG-1700/3100 Smoke Generator __________________________________________________________________________ 7.2. Full power The pump is not regulated down, regardless falling temperature heating element. 7.3. Max. Time The pump is regulated down depending temperature in the heating element. This extends the time of the fogging process. Nevertheless, the pump switches off as soon as the... -
Page 14: Care And Maintenance
SG-1700/3100 Smoke Generator __________________________________________________________________________ Remote (cable or radio) ● Please select the desired protocol and confirm it with the confirmation button. 8. Care and maintenance Avoid running the SG-1700/3100without fluid. The pump will otherwise run dry. Avoid overheating the device due to direct sunlight or direct spotlight. The permissible ambient temperature can be found in the technical data. -
Page 15: Technical Data
SG-1700/3100 Smoke Generator __________________________________________________________________________ • Check suction strainer in tank for contamination • Check fluid hose and connector for tightness The SG-1700/3100 hums loudly when fogging • Refill fluid • The pump runs dry. This must be avoided at all costs. •... - Page 16 SG-1700/3100 Smoke Generator __________________________________________________________________________ Supported protocols DMX512, RDM, Modbus RTU, JT-Remote DMX/RDM, cable remote control, radio remote Control control, integrated timer, stand alone Accessories (option) Radio remote control, cable remote control Fog Time up to 20 sec. at full power mode, up to 50 sec.
-
Page 17: Warranty
Weight 14 kg 11. Warranty For the purchased fog machine SG-1700/3100, Froggy's Fog provides warranty according to the following conditions: We shall remedy free of charge in accordance with the following conditions (Nos. 2 to 6) damage or defects to the device which are demonstrably due to factory defects if they are reported to us immediately upon discovery and within 24 months of delivery to the end user. - Page 18 SG-1700/3100 Smoke Generator __________________________________________________________________________ Warranty services do not cause an extension of the warranty period, nor do they start a new warranty period. The warranty period for installed spare parts ends with the warranty period for the entire device. If a damage or defect cannot be remedied by us, or if the remedy is refused or unreasonably delayed by us, within 6 months from the date of purchase/delivery, at the request of the end user either a.
-
Page 19: Appendix
SG-1700/3100 Smoke Generator __________________________________________________________________________ 12. Appendix...
