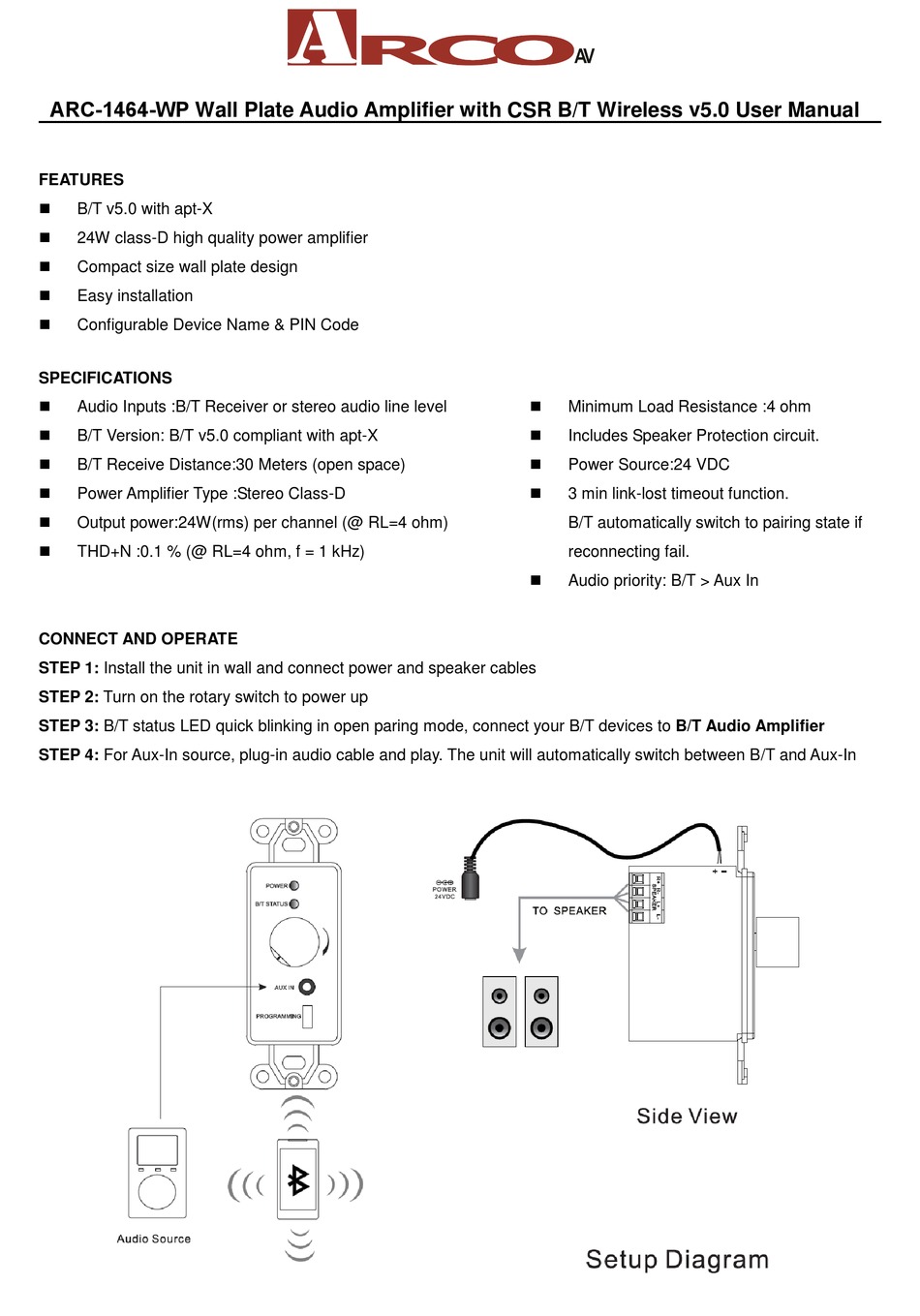

ARCO ARC-1464-WP User Manual

ARC-1464-WP Wall Plate Audio Amplifier with CSR B/T Wireless v5.0 User Manual
FEATURES

B/T v5.0 with apt-X

24W class-D high quality power amplifier

Compact size wall plate design

Easy installation

Configurable Device Name & PIN Code
SPECIFICATIONS

Audio Inputs :B/T Receiver or stereo audio line level

B/T Version: B/T v5.0 compliant with apt-X

B/T Receive Distance:30 Meters (open space)

Power Amplifier Type :Stereo Class-D

Output power:24W(rms) per channel (@ RL=4 ohm)

THD+N :0.1 % (@ RL=4 ohm, f = 1 kHz)
CONNECT AND OPERATE
STEP 1: Install the unit in wall and connect power and speaker cables
STEP 2: Turn on the rotary switch to power up
STEP 3: B/T status LED quick blinking in open paring mode, connect your B/T devices to B/T Audio Amplifier
STEP 4: For Aux-In source, plug-in audio cable and play. The unit will automatically switch between B/T and Aux-In

Minimum Load Resistance :4 ohm

Includes Speaker Protection circuit.

Power Source:24 VDC

3 min link-lost timeout function.
B/T automatically switch to pairing state if
reconnecting fail.

Audio priority: B/T > Aux In
