AST AccuGauge AG200 Manual

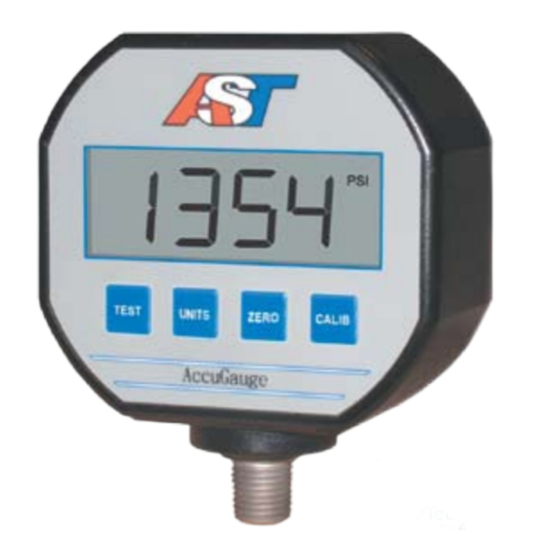

AccuGauge AG200
Media Isolated Digital Pressure Gauge
The AG200 is a media-isolated, digital pressure gauge that
offers a 4-20mA output signal with a large LCD display.
Utilizing Krystal Bond™ Technology, the AG200 provides
the same quality and performance as AST's sensors, with a
local readout. The AG200 also has the option of zero and
span calibration, allowing the user to reset the gauge, or
adjust the calibration points to their exact needs.
Performance @ 25°C (77°F)
Pressure Range
Measurement Units
Accuracy
Stability (1 year)
Over Range Protection
Burst Pressure
Pressure Cycles

Environmental Data

Krystal
Bond
Temperature
TM
Technology
by AST
Media
Operating (Ambient)
Storage

Thermal Limits

Compensated Range
TC Zero
TC Span

Specifications

Loop Current Update Rate
Display Update Rate
Power
Output
Reverse Polarity Protection Yes

Ordering Information

AG200
Series Type
A=1/4" NPT Male
J= 1/8" NPT Female
Pin 3
Pressure range
Insert 5-digit pressure range code
Pin 2 Pin 1
Pressure Unit
P=PSI
Outputs
4=4-20mA (loop powered)
Wide Pin
Electrical
E=Mini DIN 43650 (mate included)
Pin 2 Pin 3
Wetted Material
0=17-4
Ground +V
Options
A number of preset ranges are available
PSI, BAR, kg/cm, ATM, InH
<±0.5% BFSL (Includes Non-linearity,
Hysteresis and Non-repeatability)
±0.25% FS (typical)
2X Rated Pressure
5X or 20,000 PSI whichever is less
>100 Million
-55 to 125°C (-67 to 257°F)
-10°C to 70°C (14°F to 158°F)
-10°C to 85°C (14°F to 185°F)
0°C to 55°C (32°F to 131°F)
<±1.5% of FS
<±1.5% of FS
32 times per Second
3 times per second
7.5 to 32VDC
4-20mA loop powered
A 00100 P 4 E 0 000
TM
0, InHg, mAmps
2
Pressure Ranges
Pressure
Gage
Range
PSIG
Code
0-50 00050
0-100 00100
0-250 00250
0-500 00500
0-1000 01000
