Summary of Contents for SEVEN L270IPS-HAS

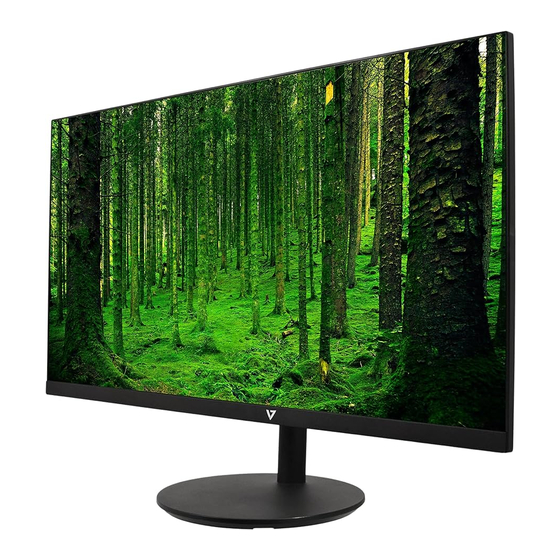

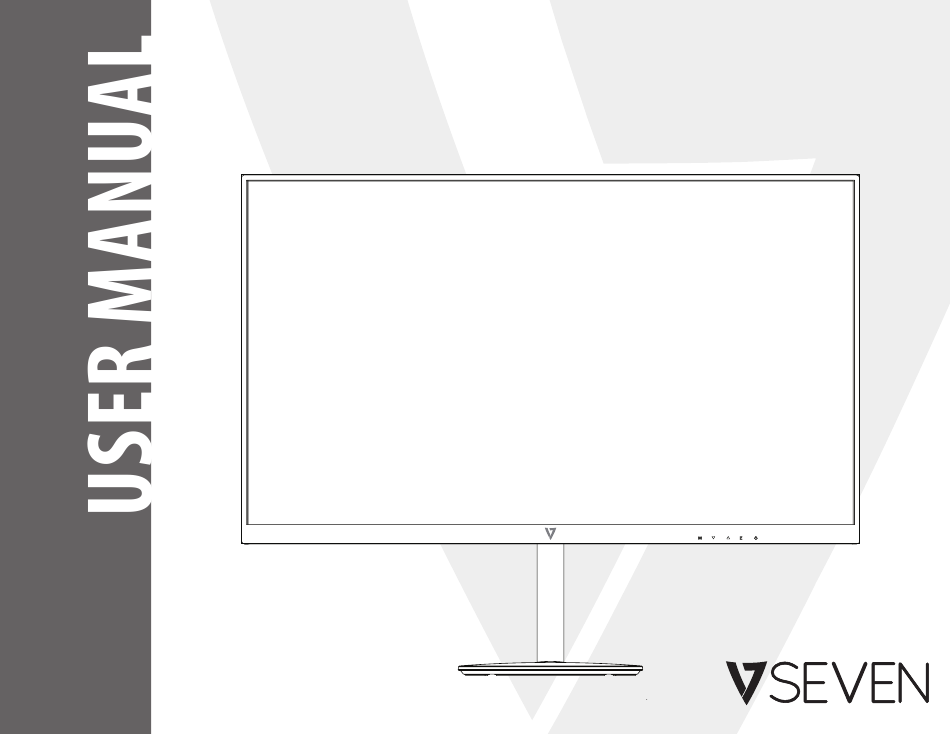

- Page 1 FHD 1920x1080 Height Adjustable IPS LED Monitor L270IPS-HAS L238IPS-HAS...
-
Page 2: Power Cord
Im Lieferumfang Enthalten Le paquet contient El paquete incluye La confezione contiene A csomag tartalma 2pcs M4x12 -OR- HDMI 2pcs M4x30 POWER CORD AC/DC POWER ADAPTER 12V/2.5A 30W... - Page 4 MOUNT OPTION (Wall Mount Sold Separately) 2pcs M4x30 2pcs M4x12...
- Page 5 HDMI AUDIO IN...
- Page 6 Return Enter the main menu ; Enter Up / Down, Right / Left Turn on or off the machine...
- Page 7 Picture Color Audio System Information...
- Page 8 Brightness: To adjust the luminance of the video Contrast: To adjust the foreground white level of screen image Black Boost: To adjust black levels to display darker areas such as shadows to be more visible Blue Light: To adjust Blue Light levels OFF/25%/50%/75%/100%. Blue Light Disabled if DCR is ON DCR: Dynamic Contrast Ratio Note:...
- Page 9 Gamma: To adjust Gamma 1.8/2.2/2.4 Color: To adjust color temperature: Warm/Normal/Cool/Blue Light/User RGB Values can be individually adjusted...
- Page 10 Volume: To adjust internal speakers...
- Page 11 Language: To select desired language OSD Time Out: To adjust time limit of OSD Transparency: To adjust OSD visibility in foreground...
- Page 12 Input: To select desired input source: HDMI/VGA/DP Auto Source: To select On/Off Wide Mode: To select Aspect/Full. When some input signals are 4:3 the display can extend to 16:9 full screen mode. Full Screen mode does not apply at high resolution settings. DDC/CI: To turn On/Off Display Data Channel (DDC) / Command Interface (CI) Quick Start Mode:...
- Page 14 23.8” FHD 1920x1080 Height Adjustable IPS LED Monitor General: Technical: Model: L238IPS-HAS MTBF: 30,000 hrs Warranty: 3 years Panel Size: 23.8 in Compliance: CE, Energy Star, FCC, RoHS, UKCA, WEEE Panel Type: IPS Country Of Origin: China Power Input: AC 100V-240V 50-60Hz Package Includes: Monitor with Height Adjustable Aspect Ratio: 16:9 Stand, VESA Adapter, 2 x M4x12, 2 x M4x30, Quick...
- Page 15 27” FHD 1920x1080 Height Adjustable IPS LED Monitor General Technical Model: L270IPS-HAS MTBF: 30,000 hrs Warranty: 3 years Panel Size: 27 in Compliance: CE, Energy Star, FCC, RoHS, UKCA, WEEE Panel Type: IPS Country Of Origin: China Power Input: AC 100V-240V 50-60Hz...
- Page 16 Care • Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. • Put your monitor in a well ventilated area. • Do not place any heavy things on top of your monitor •...
- Page 17 No Power • Make sure A/C power cord is securely inserted to both the AC-INLET socket on the monitor and wall outlet. • Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage. •...
-
Page 18: Fcc Radio Frequency Interference Statement
Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. WARNINGS •...
