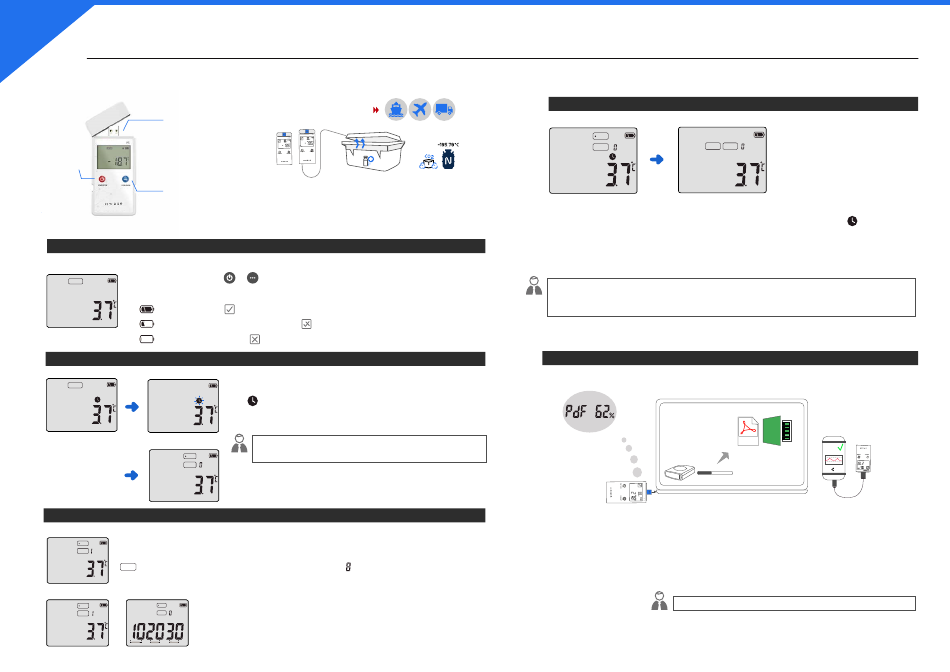

Tempilot VS Series User Manual

User Guide - Tempilot-
VS Series Temperature Data Logger
USB Interface
Start/Stop
View/Mark
I. Inspecting the Logger
Single press any button
READY
The battery indicates the power of the logger.
Full power, easy using.
Low power, not suggest using, be aware the device
may possibly stop during monitoring.
Empty power, cannot be started.
II. Start the Logger
READY
REC
MARK
III. Mark and View in Transit
REC Tempilot loggers provide an option that user could double press "VIEW/MARK" button to mark an event
MARK
at any time during the logger recording period; the mark will show in the report, the number beside the
indicates the times that has marked, the maximum mark is
MARK
used for some important events or urgent matters happen.
REC REC
Single-press "VIEW/MARK" button to check the time has been recorded and the
MARK MARK
MIN / MAX / AVG / MKT temperature since recording.
MAX MIN AVG MKT
The example shows: The logger has been recording 10 days 20hrs 30mins.
DAY(S) HR(S) MIN(S)
Multi-use/Single-use Dry Ice Logger
Tempilot (multi) series could monitor the temperature for different applications
which support a minimum temperature of -35 ,-50 ,-100 ,-200
℃ ℃ ℃
Without installing any software, end-user could quickly acquire detailed data reports
in both PDF and CSV format.
or to wake the device, "READY" means logger is OK for a start.
Device programmed a start-delay:
Press and hold "START/STOP" button for more than 4 secs until the "CLOCK"
icon appears then release the button within 2 secs, once see the clock
flashing indicates start successfully. After delay ends, the device will record, and
the LCD will turn to "REC." automatically.
Hi: Start-delay means a period that device is starting/working but not recording
after delay passed the device will start recording automatically. In other words,
when you see the clock flashing or "REC" both means start successfully.
Device not programmed a start-delay:
If the logger doesn't programme a "start-delay", the LCD will show "REC."
directly, which means start successfully and is recording now.
times. This optional function mostly
(Single-press shows in turn)
IV. Stop the Logger
REC
MARK
respectively.
℃
Press and hold "START/STOP" button for more than 4secs until the "CLOCK" icon
release the button within 2secs to stop, then LCD will show "STOP" which indicates stop successfully.
Note: if the logger is not stopped manually, the device will continue to record the data until it is plugged into
a USB port on a PC or until the programmed trip length is reached.
Hi: To Start or Stop the device: when hold and press the START/STOP button, a clock will show firstly;
Release the pressing means execute the action. If continue pressing, the clock will disappear shortly
afterwards which means cancel the action.
V. Get the Reports
Connect the unit to PC, and the LCD will show the progress % of generating. Once the progress reaches
100% the file generating process is complete, then a flash disk named "Tempilot" will pop up automatically
with data reports. Also via an OTG line user could acquire the reports through an Android Smartphone.
STOP MARK
X
PDF
CSV
Data Report
Temp Summary
℃
Tempilot(H:)
Share
Hi: Please do not pull off the logger during the process of generating!
appears , then
