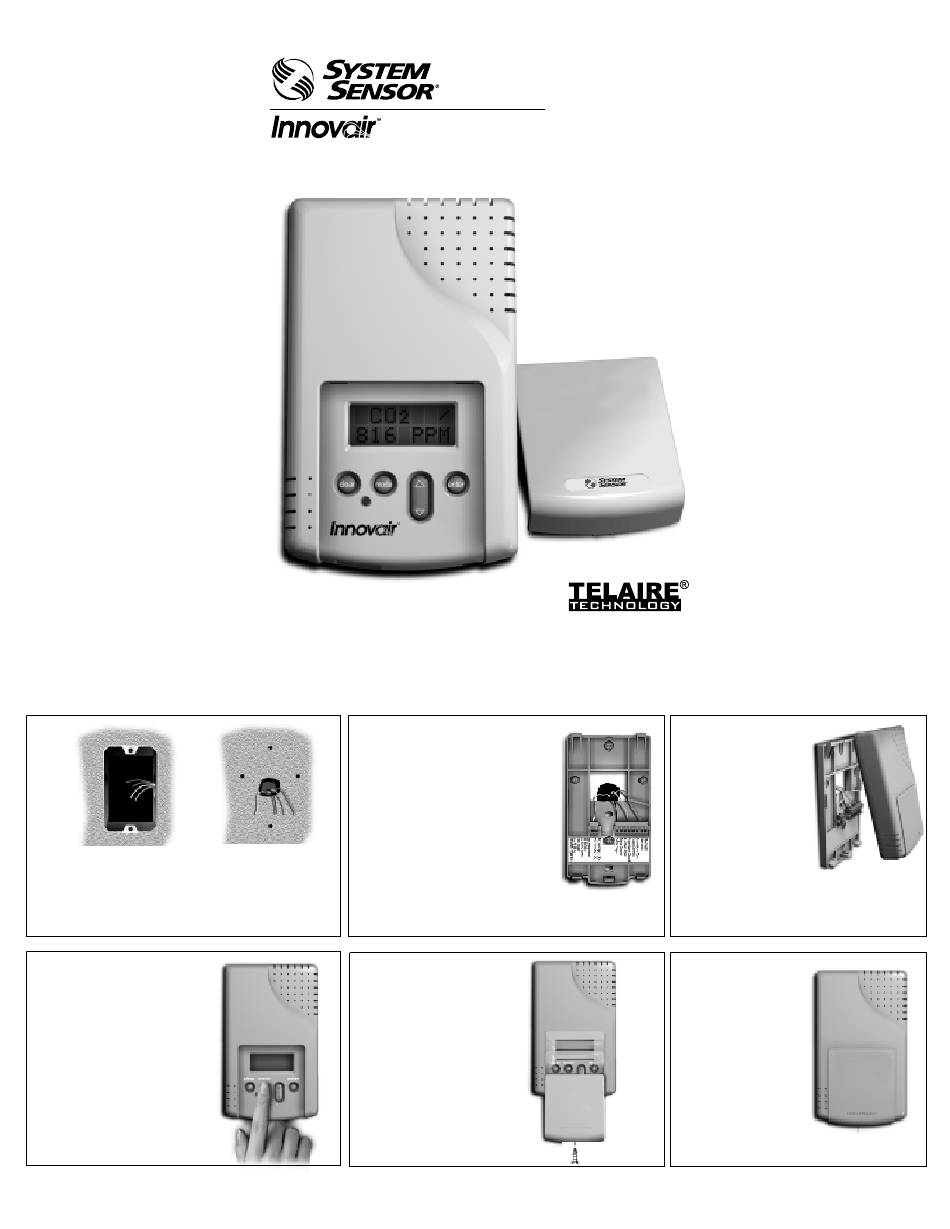

Installation
1 .
OR
Prepare for installation by
using the mounting holes
configured for US or
European junction boxes.
4 .
In less than 2 minutes, the
sensor will stabilize and display
the "Normal Mode" (current
CO
readings).
2
At this point one of nine
preset programs or one
custom channel can be
selected for operation. Use
the charts below to select a
preset or to select/modify
sensor settings.

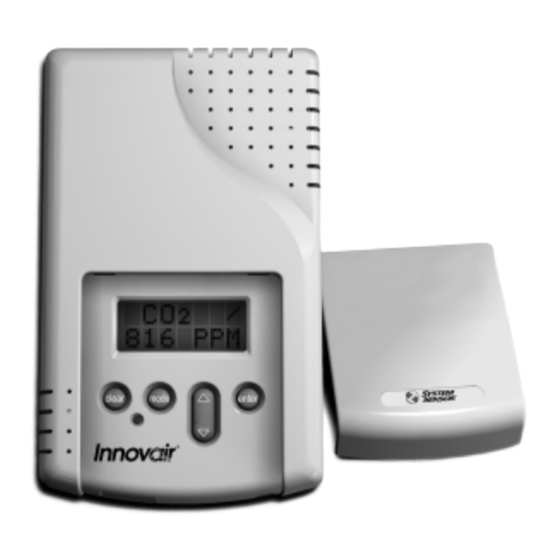

CD100VC
CO
Ventilation Controller
2
User Manual
2 .
Use the mounting plate
as a template to mark
mounting and wiring
holes.
5 .
firealarmresources.com
Featuring
Secure the Mounting Plate to
the wall or junction box and
make necessary wire
connections.
Terminal Block Designations
1 Not Used
2 Not Used
3 Relay Norm Open
4 Relay Common
5 Relay Norm Closed
6 4-20mA Output
7 Signal Ground
8 0-10V Output
1 AC+ / DC+
2 AC- / GND
Finish installation by
sliding the cover over
the menu keys and
secure with the
supplied screw.
3 .
Mount the
Controller on the
base by aligning
the top clips and
then securing to
the bottom clips. A
"snap" sound will
indicate that the
sensor is secure.
The sensor will
now have power.
6 .
Ready for
operation!
Advertisement
Related Manuals for System Sensor TELAIRE Innovair CD100VC
Summary of Contents for System Sensor TELAIRE Innovair CD100VC
- Page 1 CD100VC Ventilation Controller User Manual Featuring Installation Secure the Mounting Plate to Mount the the wall or junction box and Controller on the make necessary wire base by aligning connections. the top clips and then securing to Terminal Block Designations the bottom clips.
- Page 2 Software Operation Your new Innovair™ CD100VC CO Ventilation Controller uses state-of-the-art dual beam Absorption Infrared™ Technology. This patented technology provides a stable, accurate and reliable sensor. The sensor is also equipped with Engelhard Sensor Technologies’ patented TEMA (Time Extended Measurement Algorithm) software. The TEMA software will automatically sense and adjust for any sensor drift minimizing calibration frequency to once every five years.
- Page 3 Warranty System Sensor warrants its enclosed sensor to be free from defects in materials and workmanship under normal use and service for a period of 18 months from date of purchase by the original owner. System Sensor makes no other express warranty for this sensor. No agent, representative, dealer, or employee of the Company has the authority to increase or alter the obligations or limitations of this Warranty.
