Sonoff DIY BASIC User Manual

Sonoff DIY BASIC User Manual

Wi-fi smart switch
Hide thumbs Also See for DIY BASIC:

Advertisement

Quick Links

BASIC
User manual V1.1
Wi-Fi Smart Switch
· 中
文 -----------------------1-6
· Deutsch --------------- - 13-18
· Français----------------- 25-30
· Русский язык----------37-42
· FCC Warning
49
------------
· English--------------------6-12
· Español---------------- -19-24
· Italiano---------------- 31-36
· Português--------------43-48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIY BASIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sonoff DIY BASIC

  • Page 1 BASIC User manual V1.1 Wi-Fi Smart Switch · English--------------------6-12 · 中 文 -----------------------1-6 · Español---------------- -19-24 · Deutsch --------------- - 13-18 · Italiano---------------- 31-36 · Français----------------- 25-30 · Português--------------43-48 · Русский язык----------37-42 · FCC Warning ------------...
  • Page 2 SONOFF TECHNOLOGIES CO., LTD. English Operating Instruction 1. Power off To avoid electric shocks, please consult the dealer or a qualified professional for help when installing and repairing! Please do not touch the switch during use. 2. Wiring instruction Remove the Protective cover, then connect wires before fixing the wire fastener.
  • Page 3 English SONOFF TECHNOLOGIES CO., LTD. One live wire wiring instruction: N In 100-240V AC L In L Out Make sure the neutral wire and live wire connection is correct. 3. Download APP eWeLink eWeLink Android™ & iOS 4. Power on...
  • Page 4: Specifications

    English SONOFF TECHNOLOGIES CO., LTD. 5. Add the device Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 5: Product Introduction

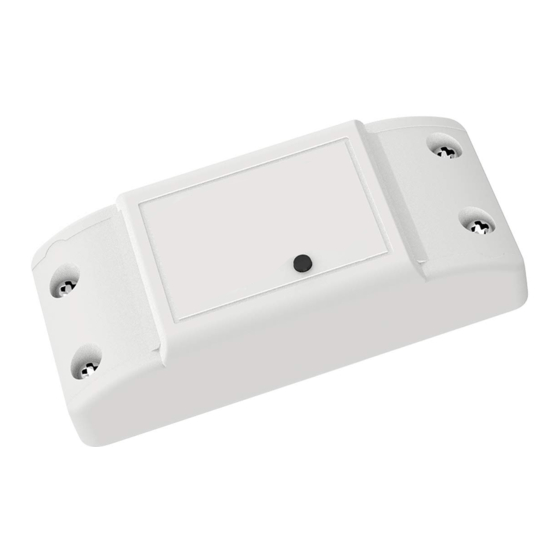

    English SONOFF TECHNOLOGIES CO., LTD. Product Introduction Wi-Fi LED indicator(Blue) Wire Fastener Cover Pairing button BASICR3: On/off LED indicator(Red) Manual switch BASICRFR3: Remote-controlled LED indicator(Red) The device weight is less than 1 kg. The installation height of less than 2 m is recommended.
  • Page 6: Factory Reset

    English SONOFF TECHNOLOGIES CO., LTD. RF Remote Controller Pairing The BASICRFR3 supports the remote controller with 433.92MHz frequency brand to turn on/off, and each channel can learn it independently, which is local short-range wireless control not Wi-Fi control. Pairing Method: Long press the pairing button for 3s until the red LED indicator flashesred once, then...
  • Page 7: Common Problems

    English SONOFF TECHNOLOGIES CO., LTD. Common Problems Q: Why my device stays “Offline”? A: The newly added device needs 1 – 2mins to connect Wi-Fi and network. If it stays offline for a long time, please judge these problems by the blue Wi-Fi indicator status: 1.
  • Page 8: Fcc Warning

    FCC Warning SONOFF TECHNOLOGIES CO., LTD. FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following...
  • Page 9 Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type BASICR3/BASICRFR3 is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals TX Frequency: WiFi: 2412-2472MHz RX Frequency: WiFi: 2412-2472MHz SRD: 433.92MHz Output Power:...

This manual is also suitable for:

Basicr3Basicrfr3
