König Electronic Sec-UTS31 Quick Start Manual

Passive YPbPr Transceiver
The product is single channel passive (non-amplified) YPbPr/Composite A/V transceiver.It allows transmission
of real-time and high-performance YPbPr or Composite Audio&Video over one piece UTP
cable.It can be used as either transmitter or receiver.

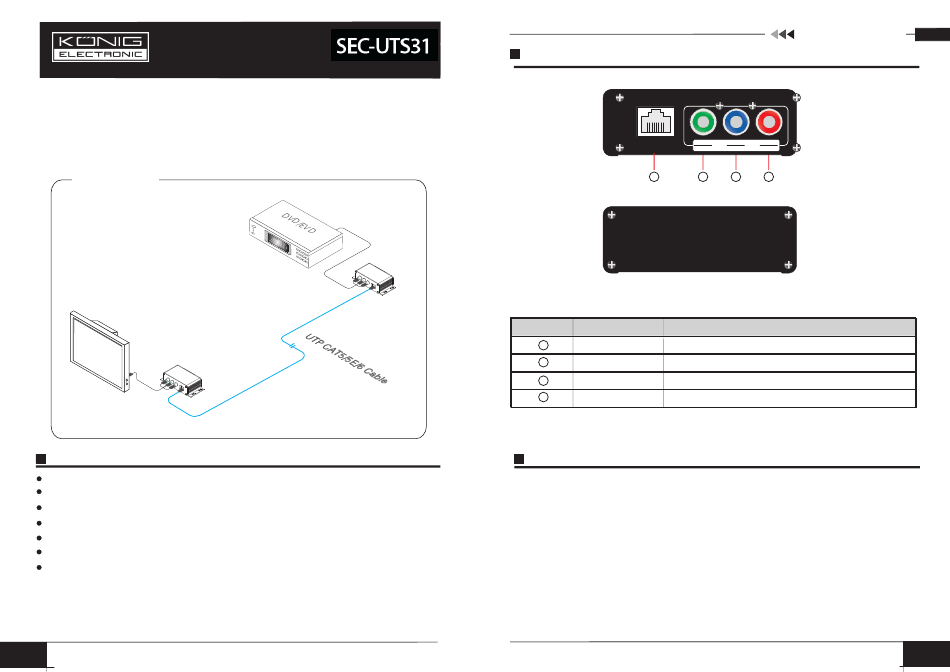

Typical Application
M
o n
i t o
r
Features
Passive,no need for additional power supply
Using single piece CAT5/5E/6 cable;
Extend YPbPr or composite video&audio up to 60m;
Real-time transmission,no delay;
P lug and play,simple installation;
Metal outer shell,super interference rejection
Super surge&transcient protection;
1
Panel Diagram
Front
RJ45
1
Rear
NO. Component
1 Please refer to "how to make RJ45 plug"
RJ45
2
RCA-F
Y/Video signal input/output
3 RCA-F Pb/Audio signal input/output
4 RCA-F
Pr/Audio signal input/output
Installation Procedure
Please follow the next installation steps:
1.Switch off power supply,or else installation with power may damage devices;
2.Check if UTP cables to be used are available;
3.Connect the source of signal with transmitter via RCA cable;
4.Connect the transmitter and the receiver via UTP cable;
5.Connect the receiver with remote devices(for example:monitor) via RCA cable
6. Power relative devices.
Passive YPbPr Transceiver
Y Pb Pr
Video Audio L Audio R
3
2 4
Description
2
