Conquer the Waters
Remote Controller Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dory Remote Controller and is the answer not in the manual?

Questions and answers

Related Manuals for Chasing Dory Remote Controller

Summary of Contents for Chasing Dory Remote Controller

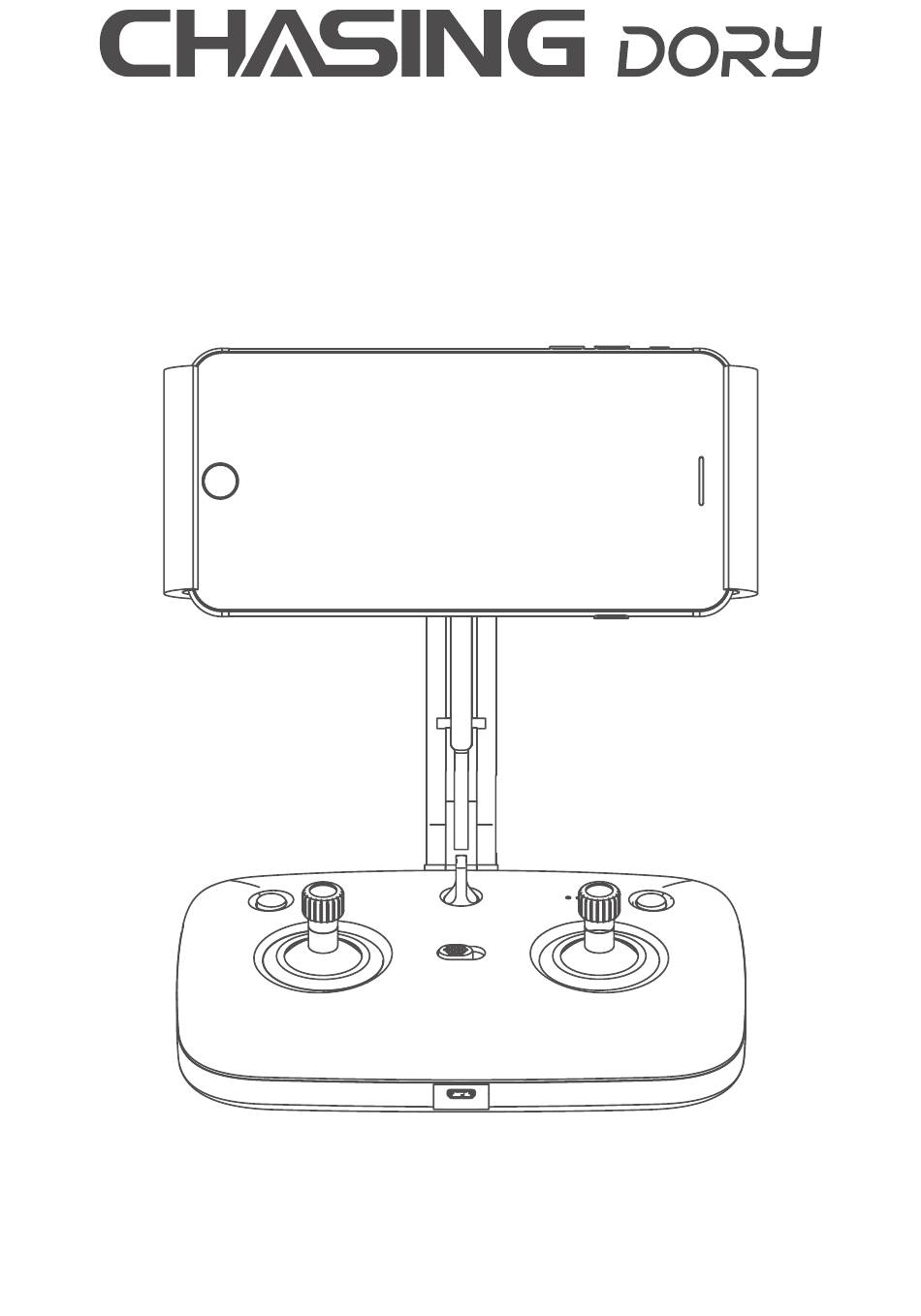

  • Page 1 Conquer the Waters Remote Controller Manual...

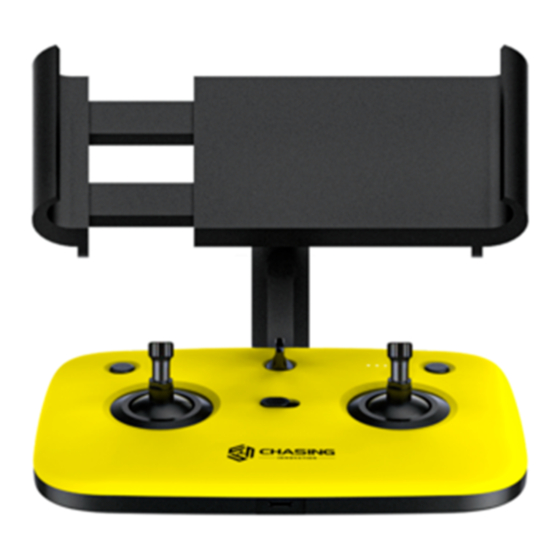

  • Page 2 Remote controller The remote controller is used to control the drone. It connects wirelessly via Bluetooth to your mobile phone/tablet. The remote controller's phone/ tablet mount supports devices ranging from 5 inches to 10.5 inches. 1 Power Switch: Turns controller on/off. 2 Mode Switch: Depth-lock mode is default and unique for Dory, so you do not need to press it.
  • Page 3 Phone/Table Mount Phone/Tablet Mount: Supports devices from 5 inches to 10.5 inches. Adjustable Nut A: Used to attach phone/tablet mount to mounting bracket. Adjustable Nut B: Used to adjust mounting bracket angle. Adjustable Nut C: Used to secure mounting bracket to controller. Built-in Tool: Stored in bracket arm and used to tighten/ loosen Adjustable Nut B.
  • Page 4 Phone/Tablet Mount Assembly Insert the mounting bracket into the mounting slot on the back of the controller. Insert and tighten mounting Remove the nut on the back bracket screw (M5*8). of thephone/tablet mount. Insert phone/tablet and adjust Place nut over mounting bracket swivel to desired position.
  • Page 5 Connection Tutorial Turn on Dory and Connect Wi-Fi When the Dory is turned on, use your phone or tablet to connect to the Dory_xxxx WiFi. Turn on Bluetooth On phone/tablet, go to Bluetooth settings and make sure it is set to the ON position.
  • Page 6 2) The adapter output voltage must be 5V to avoid damaging the remote controller. 3) Do not put the remote controller in the water to avoid damaging the device. 4) Remote control bracket, remote control water damage or appearance damage is out of warranty. www.chasing.com support@chasing-innovation.com...
