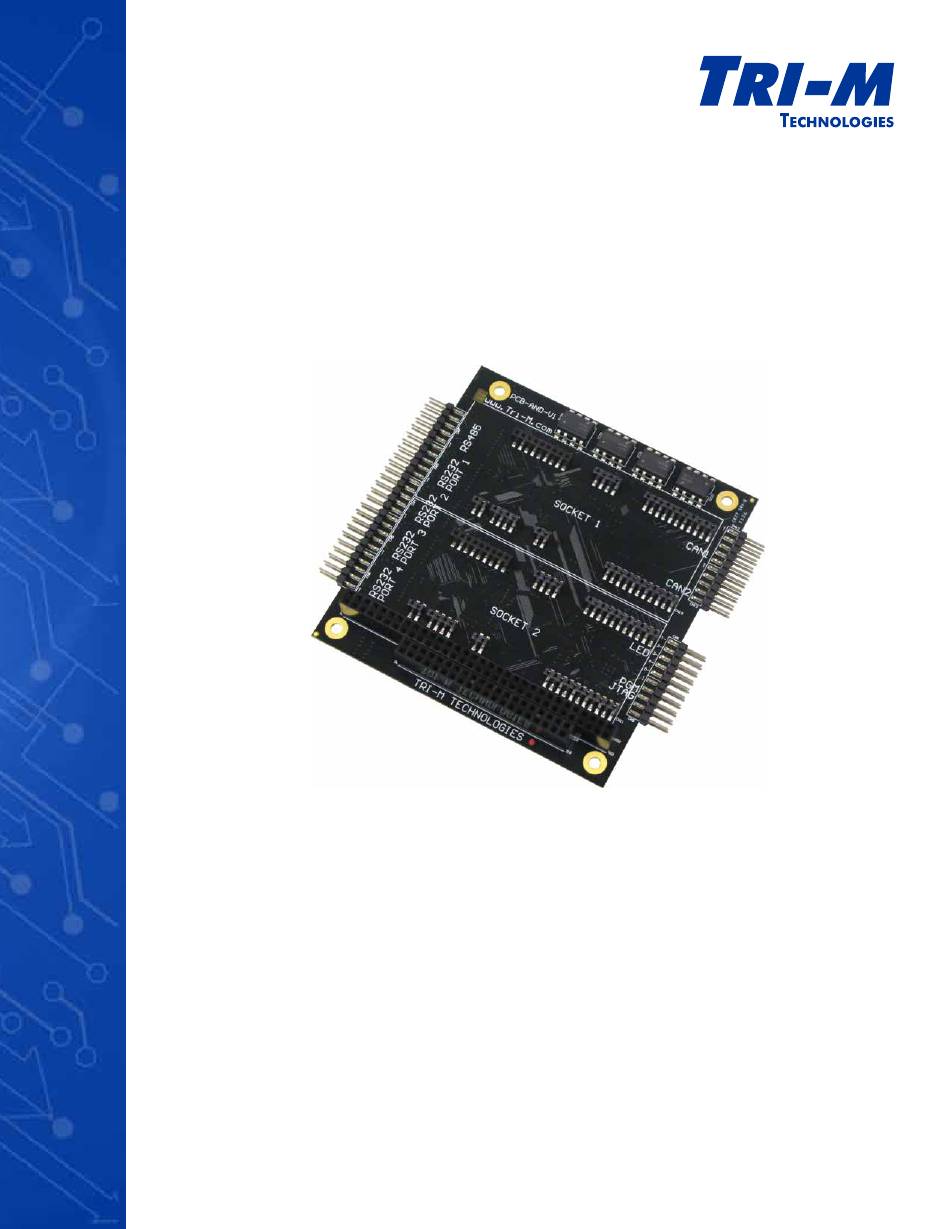

- Page 1 User Guide TCB1000 Series CANbus, Socket Modem & Serial Communication Rev 09/11 Tri-M Technologies Inc. 101 – 1530 Kingsway Avenue Port Coquitlam, BC V3C 6N6 Toll Free: 800.665.5600 Direct: 604.945.9565 Fax: 604.945.9566 Web: www.tri-m.com Email: info@tri-m.com...
-
Page 2: Preface
Tri-M reserves the right to revise this publication from time to time without obligation to notify any person of such revisions. COPYRIGHT © 2011 TRI-M TECHNOLOGIES INC. TCB1000 Series Page 2 Rev 09/11... -
Page 3: Table Of Contents
Dimensions ......................8 Connector Layout ....................9 CONNECTORS Connector Specifications ..................10 PC/104 8bit Bus (CN1) ................... 10 PC/104 16bit Bus (CN2) ................. 11 RS232 Ports (CN3, CN4, CN5, CN6) ............. 12 RS485 Port (CN7) ..................13 TCB1000 Series Page 3 Rev 09/11... - Page 4 RS485 ......................23 SOCKET RESET ..................23 CAN MODE ....................24 CAN 1 ......................24 CAN 2 ......................25 HEART BEAT..................... 25 TEMP ......................25 ALARM MESSAGE ................... 26 CONFIG ..................... 26 APPENDIx A ......................27 TCB1000 Series Page 4 Rev 09/11...
-
Page 5: Introduction
• Extended operating temperature -40°C to +85°C (-40°F to 185°F), suited for outstanding performance and reliability in harsh environments Optional Items Tri-M offers the following options for the TCB1000 Series. For more information please visit us at http://www.tri-m.com/products/trim/conformal.html or call 1.800.665.5600. •... -
Page 6: Specifications
2 x MultiTech Compatible Sockets, 921Kbp/s maximum LED Indicators 5 x Isolated LED’s, built-in limiting resistors USB/JTAG 1 x USB/JTAG port for easy installation setup Certifications Manufactured in ISO 9001:2008, ISO 14001:2004 & RoHS ANSI/ESD S20.20 compliant Environments TCB1000 Series Page 6 Rev 09/11... -
Page 7: Block Diagram
For a detailed block diagram, please see Appendix A. Dual Isolated PORT 1 CAN SJA1000 PORT 2 MCU & Isolated RS232 Logic 4x RS232 Isolated RS485 1x RS485 Universal 2x Universal MultiTech Slots Sockets JTAG TEMP TCB1000 Series Page 7 Rev 09/11... -
Page 8: Dimensions
Introduction Dimensions Note Dimensions are in mil (.001 inch) and millimeters (mm) TCB1000 Series Page 8 Rev 09/11... -
Page 9: Connector Layout
Supports Tri-M and Universal MultiTech Modules CN11 SOCKET PORT 2 Supports Tri-M and Universal MultiTech Modules CN12 CAN BUS 1 2x5 right-angle shroud 0.1” pins CN13 CAN BUS 2 2x5 right-angle shroud 0.1” pins TCB1000 Series Page 9 Rev 09/11... -
Page 10: Connectors
/IOCHCK SA14 /DACK1 RESETDRV SA13 DRQ1 SA12 /REFRESH IRQ9 SA11 SYSCLK SA10 IRQ7 DRQ2 -12V IRQ5 /0WS IRQ4 +12V IRQ3 IOCHRDY /DACK2 /SMEMW SA19 /SMEMR BALE SA18 /IOW SA17 /IOR SA16 DACK3 SA15 DRQ3 TCB1000 Series Page 10 Rev 09/11... -
Page 11: Pc/104 16Bit Bus (Cn2)
Signal Signal /SBHE /MEMCS16 LA23 /IOCS16 LA22 IRQ10 LA21 IRQ11 LA20 IRQ12 LA19 IRQ15 LA18 IRQ14 LA17 /DACK0 /MEMR DRQ0 /MEMW /DACK5 DRQ5 /DACK6 SD10 DRQ6 SD11 /DACK7 SD12 DRQ7 SD13 SD14 /MASTER SD15 TCB1000 Series Page 11 Rev 09/11... -
Page 12: Rs232 Ports (Cn3, Cn4, Cn5, Cn6)
RS232 Port 4 Port 3 Port 2 Port 1 100mil (2.54mm) SIDE VIEW RS232 Ports 1 to 4 (CN3, CN4, CN5, CN6) Bottom Signal Signal GNDISO VCC5VISO Note GNDISO and VCC5VISO are independently isolated TCB1000 Series Page 12 Rev 09/11... -
Page 13: Rs485 Port (Cn7)
921Kbp/s. The port isolation reduces noise and increases system protection. The port also features a terminating 120Ω resistor setting which can be set to open or closed. Please see the Configuration section for more details. The pin spacing is 2.54mm(0.1”). RS485 PORT 5 RS485 Port 100mil (2.54mm) SIDE VIEW RS485 Port (CN7) Bottom Signal Signal Z120Ω Enable GNDISO VCC5VISO Note The software configuration command ‘RSZ’ will take precedence when set. Please see the Configuration section for more details. TCB1000 Series Page 13 Rev 09/11... -
Page 14: Jtag Port (Cn8 Top)
PORT CN8 Signal VCC3V3 JTAG 100mil (2.54mm) SIDE VIEW uSB Port (CN8 Bottom) The bottom side of CN8 is the USB Port, used to setup and configure the TCB1000. For configuration details, please see the Configuration section. The pin spacing is 2.54mm(0.1”). J TA G / u S B Port CN8 uSB Port (CN8) Signal JTAG VCCUSB 100mil (2.54mm) SIDE VIEW TCB1000 Series Page 14 Rev 09/11... -
Page 15: Led Port (Cn9)
+ + + + + SIDE VIEW LED Port (CN9) Bottom Signal Signal LED- LED+ LED1 LED- LED+ LED2 LED- LED+ LED3 LED- LED+ LED4 LED- LED+ LED5 Note LED- and LED+ are independently isolated TCB1000 Series Page 15 Rev 09/11... -
Page 16: Universal Multitech Sockets (Cn10, Cn11)
-DTR (I) (I) GND -DCD (O) (I/O) USB_DP -CTS (O) (I/O) USB_DN -DSR (O) (O) LED DCD -RI (O) (O) LED RX -TXD (I) (O) LED DTR -RXD (O) (O) LED TX -RTS (I) TCB1000 Series Page 16 Rev 09/11... -
Page 17: Can Bus (Cn12, Cn13)
SIDE VIEW CAN BuS (CN12, CN13) Bottom Signal Signal N.C. GND ISO CAN- CAN+ GND ISO LOAD ON LOAD T +5VDC ISO N.C. N.C. Note To enable Z, connect LOAD T and LOAD ON TCB1000 Series Page 17 Rev 09/11... -
Page 18: Configuration
TCB1000 directly accessed using a uSB Cable as a Virtual COM Port TCB1000 USB Cable (Powered) USB Virtual COM Port Terminal Command-Line Application TCB1000 remotely accessed via a Stack TCB1000 (Powered in a Stack) Terminal Command-Line Application Monitor connected to the Stack Note If you lock your configuration settings, they can only be unlocked using the USB Virtual COM in CDC mode TCB1000 Series Page 18 Rev 09/11... -
Page 19: Mass-Storage Configuration Setup
25 seconds to identify and mount the device (NXP LPC1342). CAuTION Although the device is recognized as a Mass-Storage device, space in limited, approximately 4kb. The intended use is strictly for storing the configuration file, config. txt. The Mass-Storage memory should not be used for any other purposes as if there any other files are present, they will be lost when the system power cycles. TCB1000 Series Page 19 Rev 09/11... -
Page 20: Command-Line Configuration
ADDRESS RANGE is from 0x100 to 0x3E0 by steps of 0x20. For instance, 0x100, 0x120...0x3E0, 0x3C0, 0x3E0. U1I= Assign an IRQ (5,6,7,9,10,11,12,15) Note ADDRESS values are encoded and must be entered in hexadecimal. IRQ values are in decimal. All other values are NUMERICAL, UPPER CASE. TCB1000 Series Page 20 Rev 09/11... -
Page 21: Uart 2
Assigns a value to the divider for the UART Clock (f=14.7456MHz). For instance, if UCD=1, then the UART Clock will be 14.7456MHz; if UCD=2, then f=7.3728MHz; if UCD=4, then f=3.6864MHz; if UCD=8, then f=1.8432MHz. TCB1000 Series Page 21 Rev 09/11... -
Page 22: Serial Port Enable/Disable
Connect/Disconnect the DSR signal of Serial Port 3 (RS232 Port 3) to DTR DSR4= C or D Connect/Disconnect the DSR signal of Serial Port 4 (RS232 Port 4) to DTR DSR5= C or D Connect/Disconnect the DSR signal of Serial Port 5 (RS485 Port) to DTR TCB1000 Series Page 22 Rev 09/11... -
Page 23: Rs485
Description S1R= Y or N Manually resets Socket 1 S2R= Y or N Manually resets Socket 2 Note If the socket is reset, S1R=Y, it will remain in reset mode until S1R=N is entered. TCB1000 Series Page 23 Rev 09/11... -
Page 24: Can Mode
Assigns an IRQ (5,6,7,9,10,11,12,15) to CAN controller 1 C1S= F or S Assigns the Slew Rate for CAN controller 1, FAST or SLOW Note If BASIC CAN: CAN2 address= CAN1 address + 0x20, if PeliCAN CAN2 address= CAN1 address + 0x80 TCB1000 Series Page 24 Rev 09/11... -
Page 25: Can 2
Returns the temperature low limit in Kelvin TAH? Returns the temperature high limit in Kelvin Write Command Value Default Description TAL= TEMPERATURE Assigns the low limit temperature in Kelvin, 0-999 TAH= TEMPERATURE Assigns the high limit temperature in Kelvin, 0-999 TCB1000 Series Page 25 Rev 09/11... -
Page 26: Alarm Message
CFG? Displays the entire configuration settings VER? Displays the firmware version, revision and build HLP? Displays a list of all the Read and Write Commands Write Command Description Applies all the Write Commands entered while the system in running Saves the configuration profile, Config.txt, located on the device, when in the Mass-Storage mode Loads the configuration profile, Config.txt, located on the device, when in the Mass-Storage mode Locks and prevents any configuration changes to the device CAuTION Locked configuration settings can only be unlocked by accessing Serial Port 8 from a USB Virtual COM (USB in CDC mode). TCB1000 Series Page 26 Rev 09/11... - Page 27 Control CAN CONTROLLER CPLD Control PORT 1 CAN CONTROLLER ADM3053 SJA1000 ISOLATED Control CAN CONTROLLER CAN CONTROLLER PORT 2 JTAG LPC1342 ISOLATION 14.7456 Mhz 5xLEDs JTAG PORT TEMP OSCLTR Note For technical reference only TCB1000 Series Page 27 Rev 09/11...
