For more cartridges or fresh batteries, go to buy.taser.com

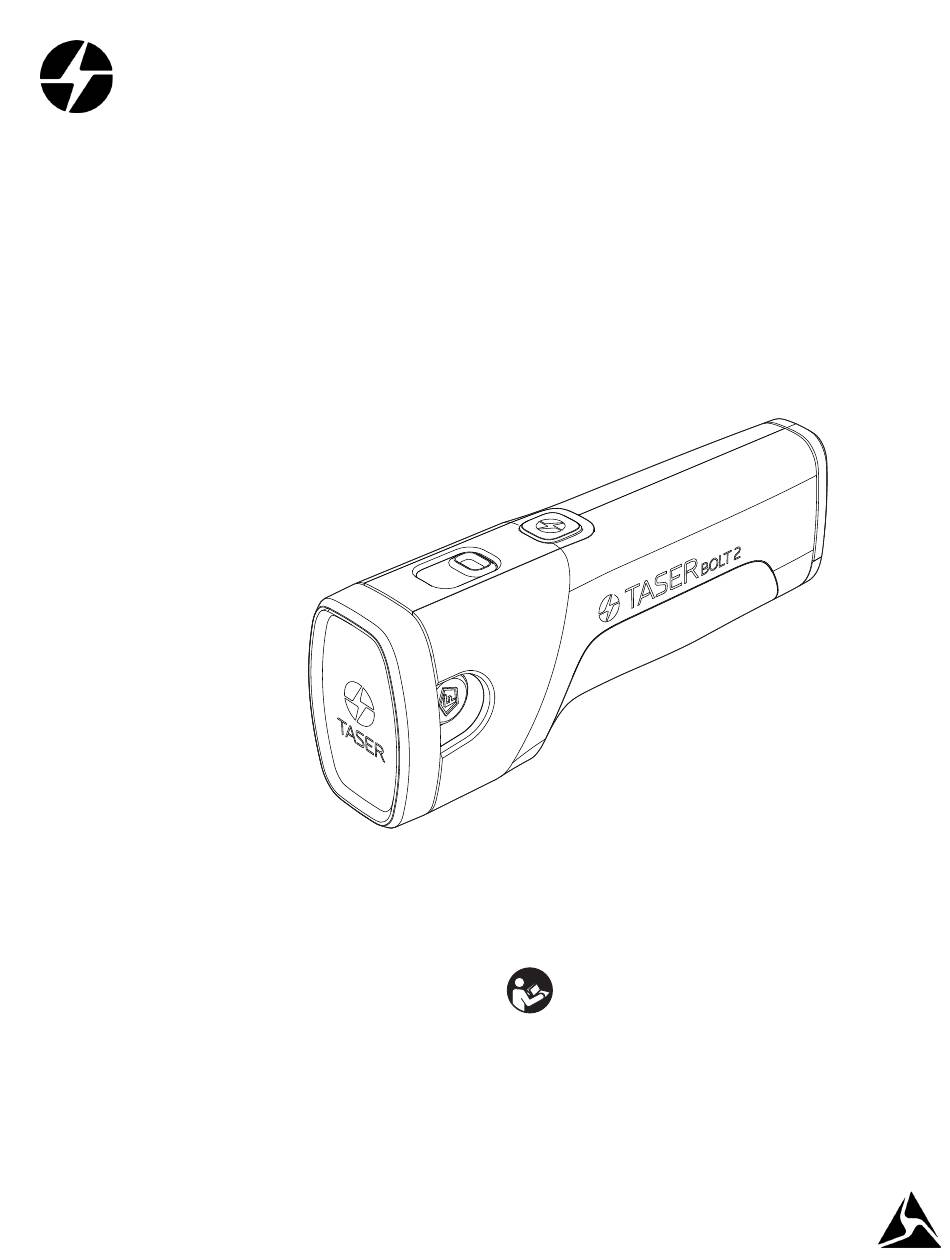

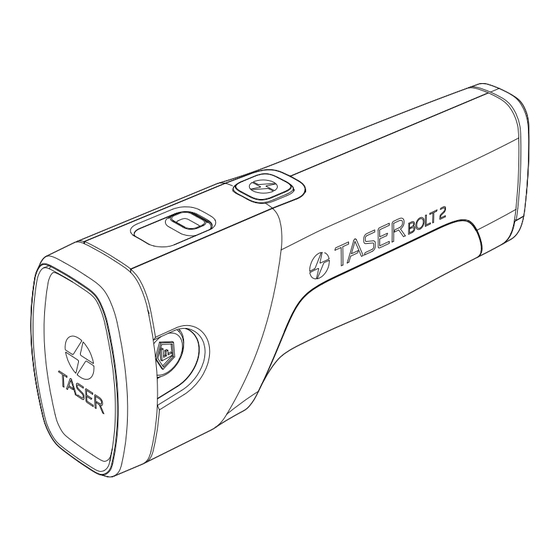

TASER Bolt 2 Energy Weapon
User Manual
Model TS1022
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions. Save these instructions.
The most up-to-date warnings and instructions are
available at www.axon.com
MMU0080 Rev: A
April 2022
Advertisement
Table of Contents
Summary of Contents for Axon TASER Bolt 2 Energy Weapon
- Page 1 TASER Bolt 2 Energy Weapon User Manual Model TS1022 IMPORTANT SAFETY INSTRUCTIONS Read all warnings and instructions. Save these instructions. The most up-to-date warnings and instructions are available at www.axon.com MMU0080 Rev: A April 2022 For more cartridges or fresh batteries, go to buy.taser.com...
-
Page 2: Table Of Contents
Chapter 3: General Information What Is the TASER Bolt 2 Energy Weapon? Neuro Muscular Incapacitation (NMI) Basic Bolt 2 Electrical Theory Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features Safety Switch Safety Cap Safety Cap Leash Power Supply... - Page 3 TASER Bolt 2 Energy Weapon User Manual What if I Miss? Contact Stun Backup TASER Safe Escape Policy Chapter 5: Smart Device Application The Axon Protect Application Installing Axon Protect Uninstalling Axon Protect Stopping False Alarms Using Training Mode Chapter 6: Maintenance and Care...
-
Page 4: Chapter 1: Warnings
Chapter 1: Warnings Important Safety and Health Information These safety warnings posted at www.axon.com are for your protection as well as the safety of others. Disregarding this information could result in death or serious injury. WARNING Read and Obey Significant differences exist between different TASER Energy Weapon models. Do not use... - Page 5 TASER Bolt 2 Energy Weapon User Manual WARNING LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 2 LASER PRODUCT WARNING AVOID EXPOSURE – LASER RADIATION IS EMITTED FROM THIS APERTURE CAUTION The use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Chapter 1: Warnings...
-
Page 6: Chapter 2: Ownership
Chapter 2: Ownership Do not point the energy weapon at any law enforcement officer or do anything that would cause law enforcement officers to feel threatened by your use of the energy weapon. Because the TASER energy weapon is able to incapacitate a person, law enforcement officers may be justified to use lethal force to protect themselves. Do not give a TASER energy weapon away as a gift or sell it without providing the new owner’s name, email address, and phone number to customer service at team@taser.com. For more information, see Legality (Chapter 7). -
Page 7: Chapter 3: General Information
Chapter 3: General Information What Is the TASER Bolt 2 Energy Weapon? The TASER Bolt 2 is a self-defense energy weapon manufactured by Axon Enterprise, Inc. TASER-brand energy weapons are designed to use propelled wires or direct contact to conduct energy to affect the sensory and/or motor functions of the nervous system. The Bolt 2 energy weapon uses a replaceable cartridge containing compressed nitrogen to deploy two small probes that are attached to the Bolt cartridge by insulated conductive wires with a maximum length of 15 feet (4.6 m). The Bolt 2 energy weapon transmits electrical pulses along the wires and... - Page 8 TASER Bolt 2 Energy Weapon User Manual TASER energy weapon, and will not increase significantly even with environmental changes). Medical studies have found that modern pacemakers and implanted cardiac defibrillators withstand external electrical defibrillators that are stronger than the TASER conducted energy pulses. For more information go to www.axon.com. Chapter 3: General Information...
-
Page 9: Chapter 4: Taser Bolt 2 Energy Weapon And Cartridge Features
Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features Safety Switch Firing Button Smart Probe AFIDs Battery Door Safety Cap LED Flashlight Blast Door LASER Sight Safety Switch The safety switch is designed to minimize the possibility of inadvertent activation of the firing button. When the safety switch is in the forward position, the energy weapon is ARMED, and an LED illuminates to indicate power to the energy weapon. -
Page 10: Safety Cap
Confirm that the weapon is unloaded. See Unloading a Cartridge for more information. Put the safety cap on the energy weapon. Remove the adhesive backing from the wing-shaped part of the leash by pulling on the two tabs. Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... - Page 11 Press the leash to the underside of the weapon, beginning at the center. Press the sides down to the energy weapon. Use the edge of the Bolt housing as a guide. Remove the adhesive backing from the front of the leash. Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features...
-
Page 12: Power Supply
Before a new Bolt 2 energy weapon can be used, a tab separating the batteries must be removed. Follow these steps: Ensure the Bolt 2 energy weapon is unloaded. Remove the battery door. Step 2 Step 3 Remove the battery pack. Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... -
Page 13: Firing Button
When the Bolt 2 energy weapon is deployed with a single push of the button, it delivers an approximately 30-second Shaped Pulse energy burst of short-duration electrical pulses. This sparking will continue for 30 seconds unless the safety switch is moved to the rearward (SAFE) position. If the firing button is pushed a second time while the weapon is arcing, the weapon will stop arcing. To start a new energy cycle, you must press the firing button again. Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... -
Page 14: Electrodes
Never attempt to open or modify a Bolt 2 cartridge. Tampering with a live Bolt 2 cartridge could cause it to discharge or malfunction, which may result in serious injury. Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... -
Page 15: Protective Anti-Felon Identification (Afid) Tags
Every time a Bolt 2 cartridge is deployed, 20–30 small confetti-like AFID tags are ejected. Each AFID tag is printed with the serial number of the cartridge. This revolutionary technology allows Axon to assist law enforcement in arresting criminals who would use our weapons for nefarious purposes. -
Page 16: Unloading A Cartridge
Depress both tabs until the cartridge releases. Note that it might take two hands to depress the tabs. Be sure to not press the firing button. Re-install the clear cartridge cover on the cartridge. Removal of an expended cartridge does not require as much force because the wires are no longer Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... -
Page 17: Practicing With The Bolt 2 Energy Weapon
• Do not inadvertently point any cartridges at yourself or at anyone when loading. • Cartridge covers must be removed prior to attempting to load. • If you are using the Axon Protect application, turn on training mode to avoid false alarms. See Using Training Mode (Chapter 5) for more information. -
Page 18: Aiming And Probe Placement
Deployment Instructions for Self-Defense Remove the Bolt 2 energy weapon from its holster. If a person approaches in a suspicious or threatening manner, move the safety switch to the Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... -
Page 19: 16 "Silence Is Golden
The LASER sight is an extremely valuable aid for proper aiming. However, there is always the chance for a missed shot, especially in a dynamic, stressful situation, and you must be prepared to take alternative actions to protect yourself in case of a missed shot or reduced effectiveness. In the event Chapter 4: TASER Bolt 2 Energy Weapon and Cartridge Features... -
Page 20: Contact Stun Backup
Do not hesitate to place the Bolt 2 energy weapon on the ground and leave it at the scene of the attempted assault. At Axon, we value your life more than a piece of plastic and metal. If you successfully deploy your TASER Bolt 2 to defend yourself, leave it at the scene and take advantage of the 30 seconds to escape. -
Page 21: Chapter 5: Smart Device Application
Chapter 5: Smart Device Application The Axon Protect Application Axon Protect is a personal security application that can be paired with the Bolt 2 energy weapon for services such as rapid support when the device is discharged and for device status checks such as remaining battery life. The Bolt 2 energy weapon does not require the Axon Protect app to function... -
Page 22: Uninstalling Axon Protect
TASER Bolt 2 Energy Weapon User Manual Uninstalling Axon Protect If you wish to remove Axon Protect, use your smart phone’s settings as you would to uninstall other applications. Stopping False Alarms If you unintentionally deploy your energy weapon and/or do not want Axon Protect to contact emergency services on your behalf, follow these steps: Wait for a call from an Axon agent to your phone. -
Page 23: Chapter 6: Maintenance And Care
• To verify the Bolt 2 energy weapon is working. • To verify that the batteries are in good condition. To perform a function test: If you are using the Axon Protect application, ensure training mode is turned on. See Using Training Mode (Chapter 5) for more information. Shift the safety switch to the forward (ARMED) position so the safety cap pops off. -
Page 24: Changing The Batteries
TASER Bolt 2 Energy Weapon User Manual cycle to run for the full 30 seconds. Shift the safety switch to the rearward (SAFE) position. If necessary, turn training mode off. Changing the Batteries To install or change the battery pack: Shift the safety switch to the forward (ARMED) position so the safety cap pops off. Shift the safety switch to the rearward (SAFE) position. Safely remove the Bolt 2 cartridge. To remove the battery pack, slide the battery door off the energy weapon. Replace the batteries. Reinstall the battery pack. Ensure that the battery pack is fully inserted into the Bolt 2 energy weapon. -
Page 25: Chapter 7: Additional Items
Hawaii, Massachusetts, New Jersey, New York, Rhode Island, and certain cities and counties. Check our website at www.axon.com for a list of known state and local laws concerning TASER energy weapons. Because state and local laws may change frequently, be sure to research the applicable laws in your area prior to using, possessing or transporting the energy weapon. -
Page 26: Medical Research
TASER Bolt 2 Energy Weapon User Manual Medical Research Medical studies have found that modern pacemakers and implanted cardiac defibrillators withstand external electrical defibrillators many orders of magnitude stronger than the TASER conducted energy pulses. Radio Waves An Axon Bolt 2 system transmission is in the frequency range of 2402 – 2480 MHz. Federal Communications Commission (FCC) Statement It contains FCC ID: RYYEYSHSN Changes or modifications to the equipment not expressly approved by the manufacturer could void the product warranty and the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 27 Apple, Inc., iOS is a tradmeark of Cisco, and QR Code is a trademark of Denso Wave Incorporated. a, c, Axon, Bolt 2, TASER, ©, and d are trademarks of Axon Enterprise, Inc., some of which are registered in the US and other countries.
