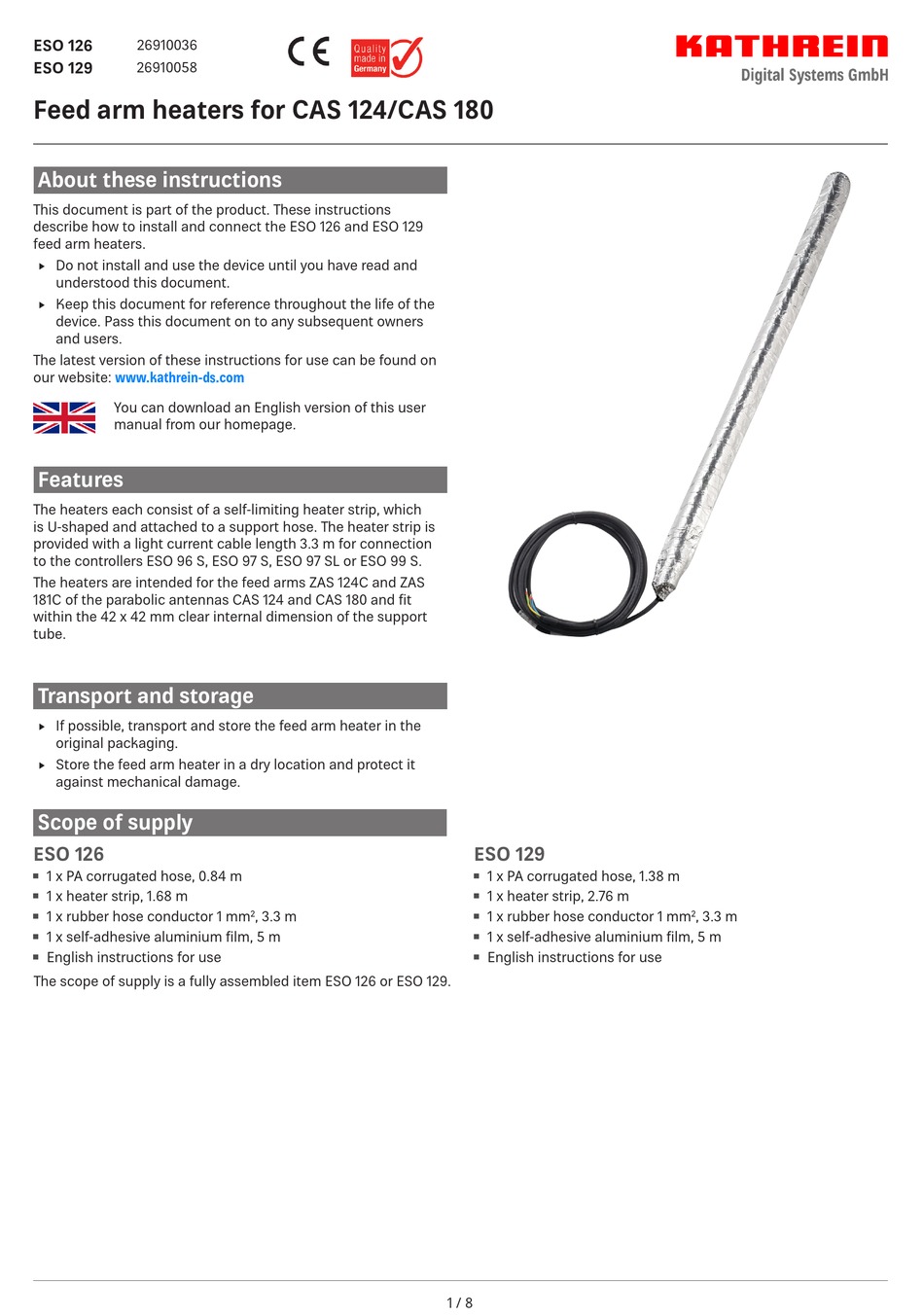

Kathrein ESO 126 Instructions Manual

ESO 126 26910036
ESO 129 26910058
Feed arm heaters for CAS 124/CAS 180

About these instructions

This document is part of the product. These instructions
describe how to install and connect the ESO 126 and ESO 129
feed arm heaters.
▶ Do not install and use the device until you have read and
understood this document.
▶ Keep this document for reference throughout the life of the
device. Pass this document on to any subsequent owners
and users.
The latest version of these instructions for use can be found on
our website: www.kathrein-ds.com
You can download an English version of this user
manual from our homepage.

Features

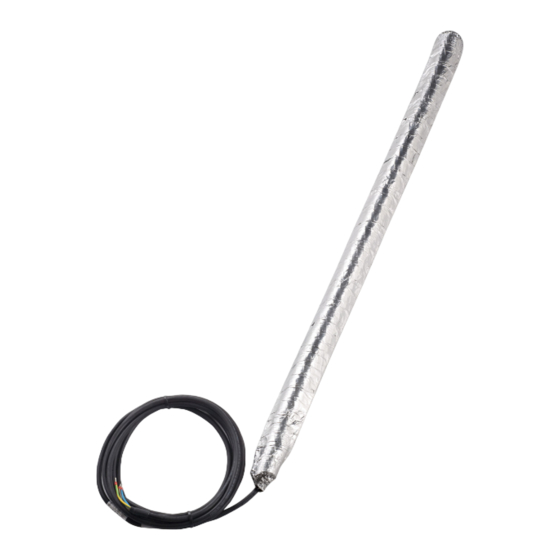

The heaters each consist of a self-limiting heater strip, which
is U-shaped and attached to a support hose. The heater strip is
provided with a light current cable length 3.3 m for connection
to the controllers ESO 96 S, ESO 97 S, ESO 97 SL or ESO 99 S.
The heaters are intended for the feed arms ZAS 124C and ZAS
181C of the parabolic antennas CAS 124 and CAS 180 and fit
within the 42 x 42 mm clear internal dimension of the support
tube.

Transport and storage

▶ If possible, transport and store the feed arm heater in the
original packaging.
▶ Store the feed arm heater in a dry location and protect it
against mechanical damage.
Scope of supply
ESO 126
• 1 x PA corrugated hose, 0.84 m
• 1 x heater strip, 1.68 m
• 1 x rubber hose conductor 1 mm
• 1 x self-adhesive aluminium film, 5 m
• English instructions for use
The scope of supply is a fully assembled item ESO 126 or ESO 129.
, 3.3 m
2
ESO 129
• 1 x PA corrugated hose, 1.38 m
• 1 x heater strip, 2.76 m
• 1 x rubber hose conductor 1 mm
• 1 x self-adhesive aluminium film, 5 m
• English instructions for use
1 / 8
, 3.3 m
2
