Motor Guard M-60R Instructions

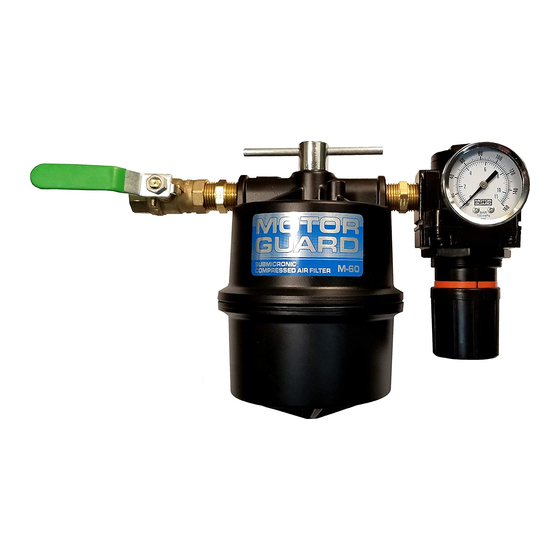

The Motor Guard M-60R combines a sub-micronic compressed air filter with a precision true-diaphragm regulator and gauge for a powerful point-of-use
air preparation unit.
Install unit at or near point of use with at least 20 feet of supply line between unit and compressor. Failure to maintain this distance will cause excessive
water vapor to pass through unit. Unit is designed for installation in a 1/2" line; use appropriate fittings for installation in other line sizes. Apply pipe
thread compound to male thread connections. Before installing unit, relieve upstream pressure completely. Install unit level and in direction of airflow as
noted. Unit should be mounted to a rigid structure and should not be supported by the supply line.
WARNING: This product is intended for use in industrial compressed air systems only. Do not install where pressures or temperatures can
exceed those listed above.
Before pressurizing, be T-Handle is fully hand tightened by turning clockwise. Pressurize slowly to avoid high-pressure surge.
Open service valve (2) fully so that handle is parallel to inlet pipe. Turn knob on regulator clockwise to increase air pressure, counter-clockwise to
decrease. To reduce pressure setting, first reduce pressure to a setting lower than desired, then increase to the desired setting. Push knob up firmly to
lock and prevent accidental adjustment.
Inspect daily for leaks.
Regulator should be disassembled, cleaned and serviced periodically.
580 CARNEGIE STREET
MANTECA, CA 95337
SUB-MICRONIC COMPRESSED
www.motorguard.com
AIR FILTER w/ REGULATOR
FEATURES
M-60 Sub-Micronic Compressed Air Filter designed for
installation at to the point of use. Removes particulates,
condensed moisture and oil aerosols down to an
incredible .01 microns in size and absorbs large
quantities of moisture and oil. Uses (1) M-723
replacement element.
MHT-7300 High-capacity, true diaphragm regulator
designed to set and hold pressure over a wide range of
flows and conditions. High-visibility, multi-scale pressure
gauge features a scratch and solvent resistant glass
lens. Large, ergonomic adjustment knob locks to hold
pressure setting.
SPECIFICATIONS
Port Size:
Nominal Filtration Rating:
Nominal Airflow Rating:
Maximum Inlet Pressure:
Outlet Pressure Range:
Operating Temperature Range:
INSTRUCTIONS
.
MODEL M-60R

INSTALLATION

.
1/2NPT
.01 Microns
100 SCFM
125 PSIG
2-125 PSI
40-120 °F

OPERATION

.
1-800-227-2822
FAX 209-239-5114
Rev 19/19 33176
