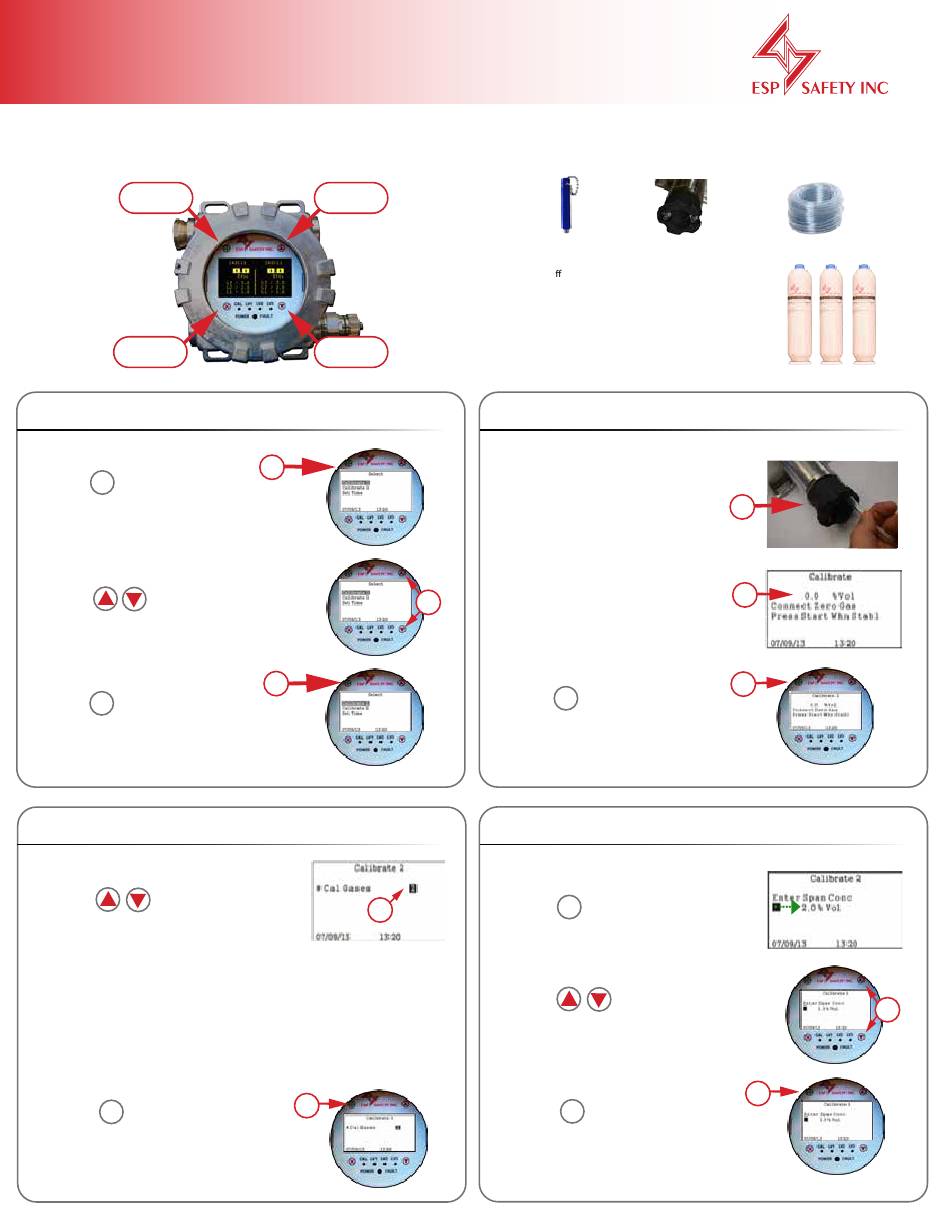

ESP Safety VECTOR Calibration Manual

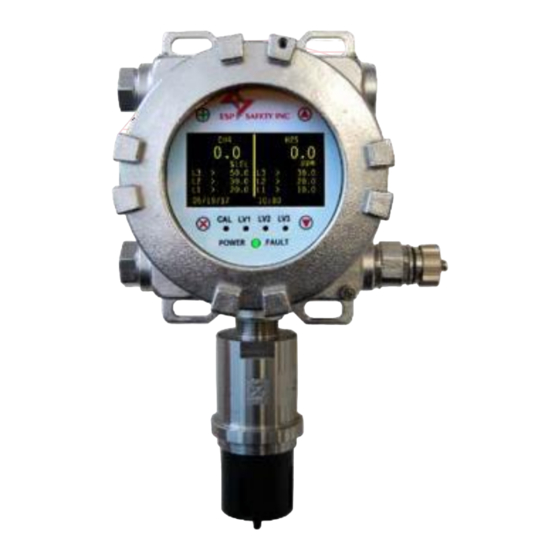

VECTOR FIELD CONTROL UNIT
SENSOR MAGNETIC CALIBRATION GUIDE
OVERVIEW
TAP the Magnetic Wand against glass to activate buttons.
START / ENTER
BACK / CANCEL
STEP ONE
1.a
+
TAP the Button with the
Magnetic Wand (MW) to access
the Menu.
1.b
TAP the Buttons to highlight
"Calibrate 1" .
1.c
+
TAP the Button to Select
"Calibrate 1" and begin calibrating Sensor 1.
STEP THREE
3.a
TAP the Buttons to adjust
number of gases for span calibration
3.b
Select 1 for mid-span gas only (1 gas cylinder)
Select 2 for full & mid span gases (2 gas cylinder)
3.c
+
TAP the Button to Enter selection
UP Button
DOWN Button
1.a
1.b
1.c
3.a
3.c
What you'll need...
Tools:
1. Magnetic Wand 2. Calibration Cap
Gases:
1. Zero Gas: a gas that is free of any substance that will
adversely a ect the operation of or cause a response of the
instrument.
2. Mid span Gas: a reference gas used in calibration of a
concentration _20% from 50% of sensor's full range. +
3. Full span Gas: a reference gas used in calibration of a
concentration higher 75% of sensor's full range.
STEP TWO
2.a
Connect the zero gas cylinder to the
inlet of the calibration cap.
2.b
Apply the zero gas at NO MORE than
0.5 l/min, for at least 1 Minute; wait
for gas reading to STABILIZE.
2.c
+
TAP the Button to Set zero
point calibration.
STEP FOUR
4.a
+
TAP the Button to Advance
cursor to the next digit.
4.b
TAP the Buttons to adjust value
of each digit. Refer to the gas concentra-
tion on the gas cylinder
4.c
+
TAP the Button after the last digit
has been edited to proceed
3. 1/4" Clear Tubing
2.a
2.b
2.c
4.b
4.c
