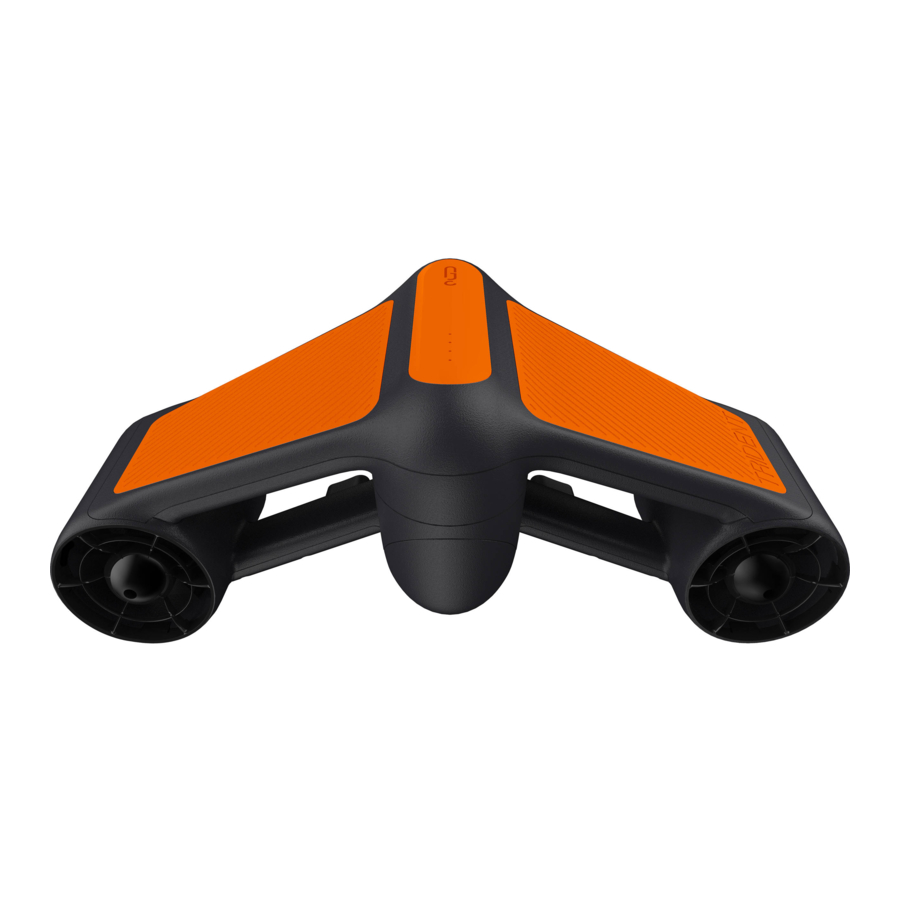

Geneinno Trident Maintenance Instruction

Hide thumbs Also See for Trident:

Download this manual

Trident Simple Maintenance Instruction

1. Motor does not rotate

(1) Check to see if there is any external objects winding in the propeller or if any sand/stones are

blocking the propeller and culvert so it cannot rotate; Solution:

① Remove the propeller shield;

Rotate the shield in the direction of the arrow

② Clean the external object/sand/stones;

③Manually rotate the blade to check if it could be turned easily;

④If the blade could be turned easily and no scratching sound, then install the shield back.

Rotate the shield in the direction of the arrow. A

click indicates that the shield has been installed

Shenzhen Geneinno Technology Co., Ltd

- 1 -

Page 1 ④If the blade could be turned easily and no scratching sound, then install the shield back. Rotate the shield in the direction of the arrow. A click indicates that the shield has been installed Copyright © 2018-2020 GENEINNO All Rights Reserved. - 1 -...
Page 2 (1) Check if there is any external objects to prevent the battery cover from being removed, and try again after clearing the external objects; (2) The buckling position stuck, battery cover could not be removed: Copyright © 2018-2020 GENEINNO All Rights Reserved. - 2 -...
Page 3 ③If the sealing ring is in good condition, it can be restored in place manually and carefully: Please be noticed that the connector has only one sealing ring installed now; Copyright © 2018-2020 GENEINNO All Rights Reserved. - 3 -...
Page 4 ①Take out the battery first; ②Remove the propeller shield; Rotate the shield in the direction of the arrow ③Use the cross screwdriver to remove the screws and take off the damaged propeller; Copyright © 2018-2020 GENEINNO All Rights Reserved. - 4 -...
Page 5 ⑦Put the propeller shield back on; Rotate the shield in the direction of the arrow. A click indicates that the shield has been installed ⑧Install battery back, start power for verification. Copyright © 2018-2020 GENEINNO All Rights Reserved. - 5 -...
