RFNT2 Laptop Battery Tester
Summary

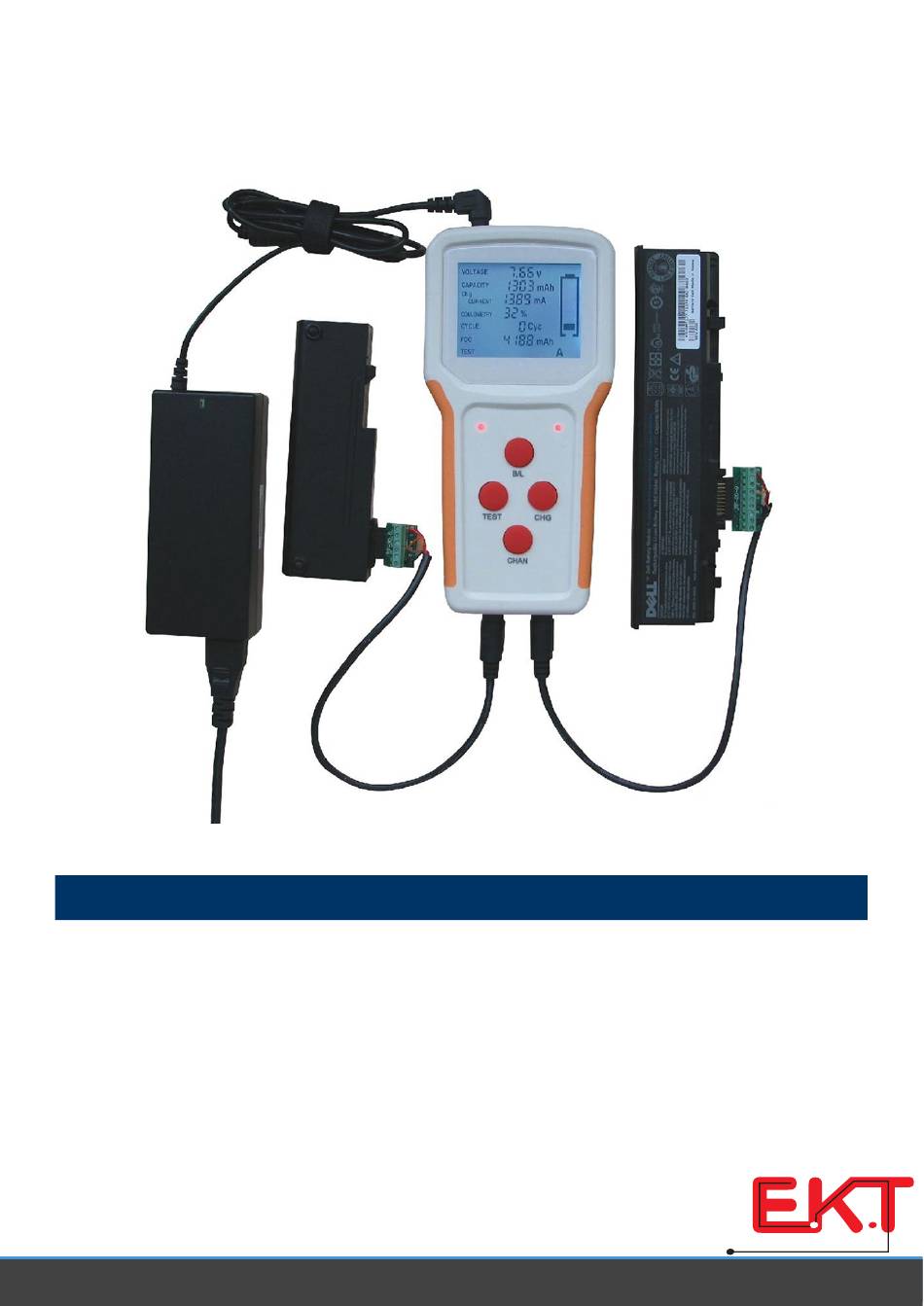

RFNT2 is a battery testing device with two channels, having the features below:
◇ Supporting two intelligent batteries at once
◇ With charge and test functions
◇ LCD for displaying battery informaiton
◇ LED for indicating working status
◇ Pre-charge, fast charge and constant voltage charge for charging stages
◇ With a USB port for connecting with computers, master machine can monitoring and control slave
machine
w w w . e k t
. c o m
2
Katrangi
Electronics
Trading
Advertisement
Table of Contents
Summary of Contents for EKT RFNT2
- Page 1 RFNT2 Laptop Battery Tester Summary RFNT2 is a battery testing device with two channels, having the features below: ◇ Supporting two intelligent batteries at once ◇ With charge and test functions ◇ LCD for displaying battery informaiton ◇ LED for indicating working status ◇...
- Page 2 Basic Parameters ◇ Dimensions: 201 x 99 x 35 mm ◇ Weight: 333g ◇ Adapter Input: AC 100 ~ 240 V Output: DC 19V 4.74A ◇ Display mode Segment LCD with white backlight + LED in red and green ◇ Charging mode Constant current + constant voltage ◇...
- Page 3 Online Functions Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine. Monitoring Battery information can be monitored via three windows. ◇ Home screen Battery bar and breif information can be read on home screen.
- Page 4 Front Pannel ① Segment LCD ② LED for A channel ③ LED for B channel ④ Backlight switch button ⑤ Test button ⑥ Charge button ⑦ Channel switch button for checking battery information showed on LCD screen Back Panel ① Heat dissipation holes Top Panel ①...
- Page 5 Display Mode LCD Display ① Battery voltage ② Remaining capacity ③ Charging current or discharging current ④ Remaining capacity percentage ⑤ Charge / discharge cycle count ⑥ Full charge capacity ⑦ Test result ⑧ Channel indication ⑨ Battery bar LED Indication Shine in red colour: On charge or discharge Flicker in red colour:...
- Page 6 on LCD screen in real time. ◇ Active charge If the battery needs to be activated, tester can not show any battery informaiton. In this case, you should press the charge button to start up active charge. Tester will go into normal charge process after the battery is activated successfully.
