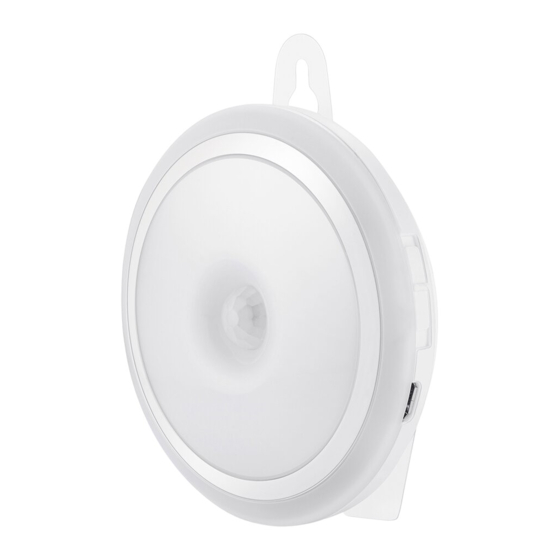

CL-XYD-L Motion-sensor night light
User manual
Technical specification
Model
Main features
Battery
Power
Light source type
LED quantity (pcs)
CRI (Ra>):
IP rating
Light colour
Luminous flux
Light angle
Sensor type
Daylight sensor sensitivity
Detection range
Detection angle
Operation mode
Blocking time
Operation time
Charge time
Operating temperature
Material of housing
Product size
Lifetime
Warranty
Package dimensions
Weight with packaging
www.stellarlighting.co.uk
email: info@stellarlighting.co.uk
CL-XYD-L
Motion-sensor activated, wireless and rechargeable night light with daylight
sensor and micro-USB charging port
3.7 V - 600 mA Lithium battery (micro-USB charging port)
0.5 W
SMD 2835 white LED
6
>80
IP 20
White 3000 K / 4000 K / 6000 K
30 lm +/- 5%
120°
PIR sensor
2-
2 4.5 m
100°
On / Off / Auto (30 second auto-off)
0.2 sec
6+ hours
2-3 hours
5°C - 30°C (25°C is the most optimal)
ABS + PC (Milky)
Ø 80 x 23 mm
50,000 hours
2 years
155 mm (L) x 118 mm (W) x 20 mm (H)
0.088 kg
1
Advertisement
Table of Contents
Summary of Contents for Stellar Lighting CL-XYD-L
- Page 1 CL-XYD-L Motion-sensor night light User manual Technical specification Model CL-XYD-L Motion-sensor activated, wireless and rechargeable night light with daylight Main features sensor and micro-USB charging port Battery 3.7 V - 600 mA Lithium battery (micro-USB charging port) Power 0.5 W...
- Page 2 CL-XYD-L Motion-sensor night light User manual Safety notices Electrical work safety advice and tips ● Make sure the input voltage is correct. ● Avoid short-circuiting the unit, as it will burn the power supply or cause fire. ● Avoid placing the light in the rain, outdoors or in moist areas as it may damage or short-circuit the device.
- Page 3 CL-XYD-L Motion-sensor night light User manual Product details Product dimensions www.stellarlighting.co.uk email: info@stellarlighting.co.uk...
- Page 4 CL-XYD-L Motion-sensor night light User manual Installation options Option 1: Hanging Step 1: Fix the hook on the Step 2: Ensure that the back plate Step 3: Hang the light vertical surface where you intend with the hanging hole is secured...
- Page 5 • The indicator light turns red while charging and changes to blue, once fully charged. Application areas The CL-XYD-L motion-sensor activated, wires night lights have a wide range of applications. All you need is a surface to secure the lights to.
- Page 6 CL-XYD-L Motion-sensor night light User manual www.stellarlighting.co.uk email: info@stellarlighting.co.uk...
- Page 7 CL-XYD-L Motion-sensor night light User manual www.stellarlighting.co.uk email: info@stellarlighting.co.uk...
