Summary of Contents for Veracity VIEWSPAN Solo
- Page 1 V I D E O D I S P L A Y C O N T R O L L E R Quickstart GUIDE VIEWSPAN Solo ®...
- Page 2 Appliance Web Portal (AWP) ‘Settings’ page. Version 1.7 2022 Regulatory Compliance Statements For EMC compliance, use good quality shielded cables or adapters for connection from the appliance to the display device. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...
- Page 3 The unit can be installed on a desktop or with a VESA wall mount bracket. The unit can be installed HORIZONTALLY or VERTICALLY. Please refer to the user manual for further information. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...
- Page 4 Note: The product serial number is on the product label, this number helps the support team identify your device. The serial number can also be obtained through the web portal. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...

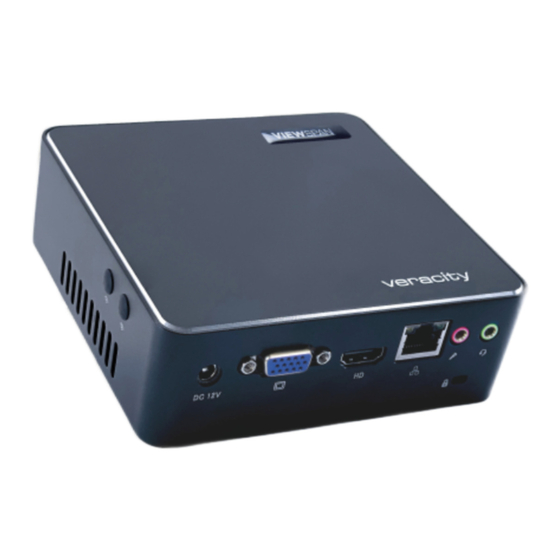

- Page 5 Port Guide VGA (Blue) HDMI Ethernet/LAN USB 3.0 (Blue) USB 2.0 (Black or Yellow) Mic Input (Pink) Audio Output (Green) DC Input ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...
-
Page 6: Installation
Cable Type Resolution Maximum Length HDMI (output) Up to 1080p60 10m (33ft) HDMI (output) Up to 4K30 5m (16ft) VGA (output) Up to 1080p60 5m (16ft) 3m (10ft) ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |... -
Page 7: Connect Network
VGA cable and a suitable adapter if necessary. If you encounter any issues with displays try the following: Power Cycle Monitor Try Disconnecting and Reconnecting Cable ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |... -
Page 8: Step 4 | Main Screen
‘Change a Password’. We advise that the username remains as ‘video’. IMPORTANT: When you change the user account Password, ensure that you update the details found in “netplwiz” for the automatic login feature to continue. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |... - Page 9 Using a client PC on the same network, enter the IP address into a supported modern web browser. Note: If the AWP does not load on 9001, try 9002, 9003 etc. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...
- Page 10 AWP. Use the “Help” page and follow the steps provided. Note: The full User Manual is accessible via the AWP and is automatically updated whenever the firmware is updated. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...
- Page 11 Notes | Please make notes here that are specific to your own application. ® VERACITY | VIEWSPAN SOLO QUICKSTART GUIDE | V1.7 | 2022 |...
- Page 12 Madeira, EV141, Campus da Penteada, 9020 105 KA9 2TU Funchal, Portugal. Tel +44 (0) 1292 264967 © Veracity UK Ltd 2022. All rights reserved. DV1.7EN www.veracityglobal.com support@veracityglobal.com Under no circumstances should this document be reproduced, distributed or changed, partially or wholly, without written, formal authorisation from Veracity UK Ltd.
