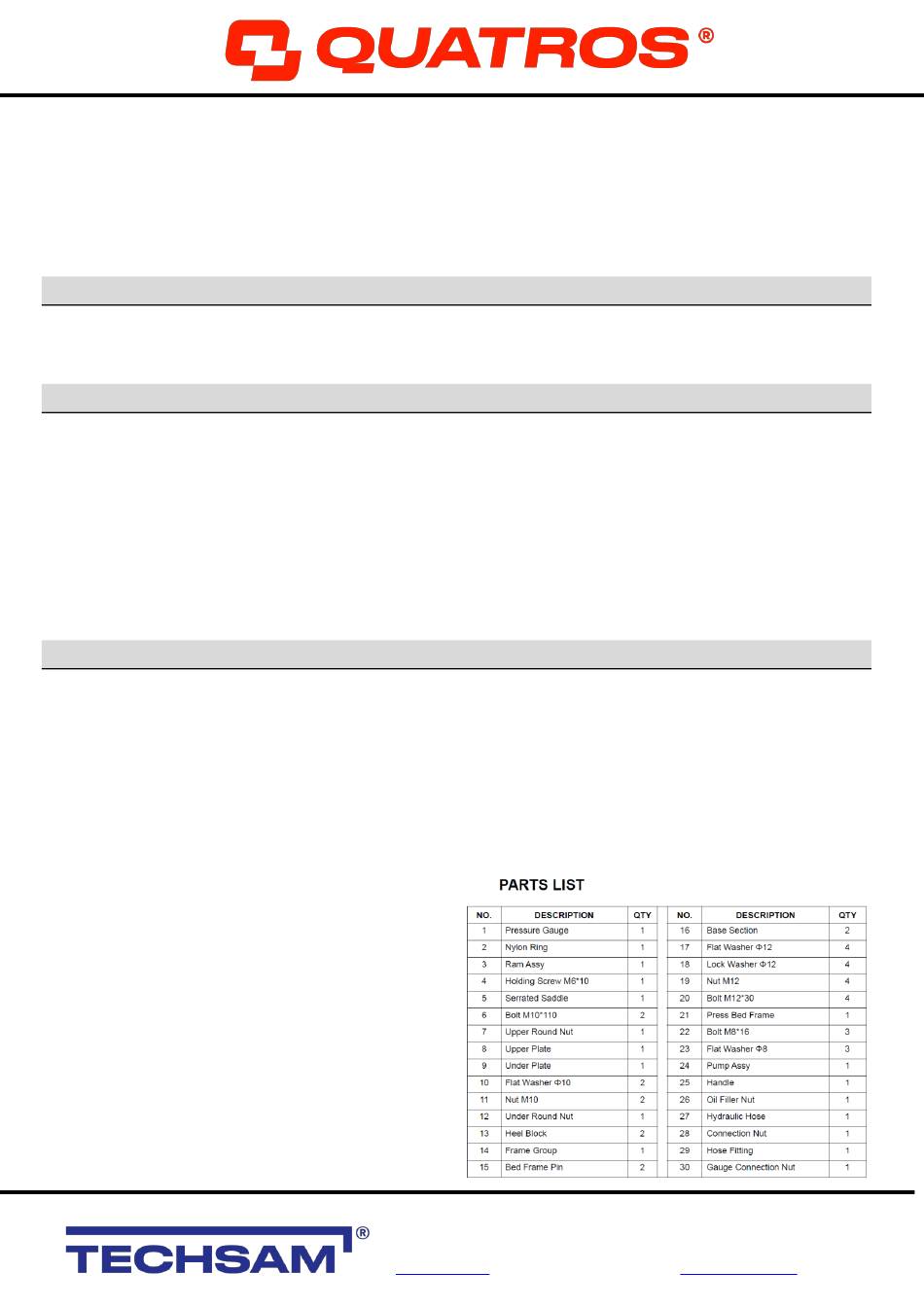

QUATROS QS19311 Owner's Manual

OWNER'SMANUAL
HYDRAULIC SHOP PRESS 10T
QS19311

DESCRIPTION

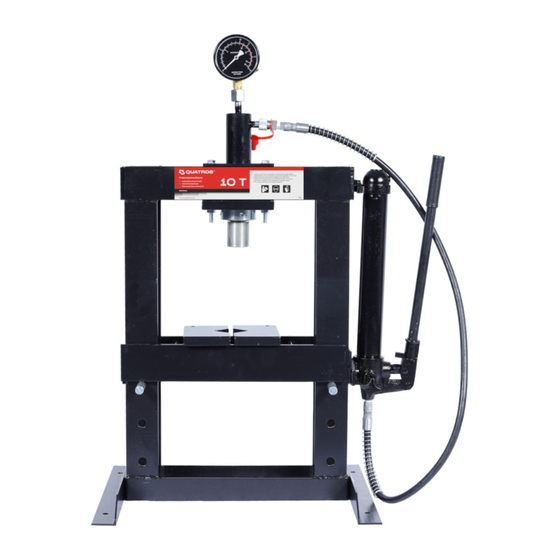

Hydraulic Shop Press 10T QS19311:
Hydraulic Shop Press 10T with multi-position bed for work height adjustment used for parts straightening, bending and pressing.

SAFETY INSTRUCTIONS

WARNING
- This press is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with
the proper and safe operation of a hydraulic press, do not use until proper training and knowledge has been obtained.
- Do not operate this press beyond it rated capacity.
- DO NOT compress springs or other objects that could be ejected from the press. DO NOT compress objects that could
shatter.
- Check the press for loose or damaged parts before each operation. Replace damaged parts and tighten all loose bolts
before operating.
- Some parts being pressed may have a tendency to pop out of the press or explode under pressure. Protect yourself
accordingly.

OPERATION

WARNING! Ensure that you read, understand and apply the safety instructions.
OPERATION
1. Place work piece on bed frame.
2. Locate and close release valve.
3. Pump handle until the ram nears work piece.
4. Apply load to work piece by pumping handle. Do not overload work piece.
5. Remove load from work piece by turning release valve. Stabilize work piece so it does not fall while pressure is released.
6. Remove work piece after ram is fully retracted.

MAINTENANCE

- Periodically, lightly oil all moving parts including the
pump piston and hydraulic ram.
- Check hydraulic connections and hoses before each use.
Do not use if cut, damaged, leaking or otherwise
damaged connections and/or hoses are notes.
IMPORTER
Capacity: 10T | Working range: 0 - 375mm
:
PW TECHSAM Woch Sp. J.
ul. Warszawska 131
20-824 Lublin
www.quatros.eu
a
a
| Weight: 50,5kg
tel. 81 444-63-73
tel. 81 443-08-12
fax 81 458-38-19
e-mail: techsam@quatros.pl
