Summary of Contents for SCHNIER MINI Flocker Evo

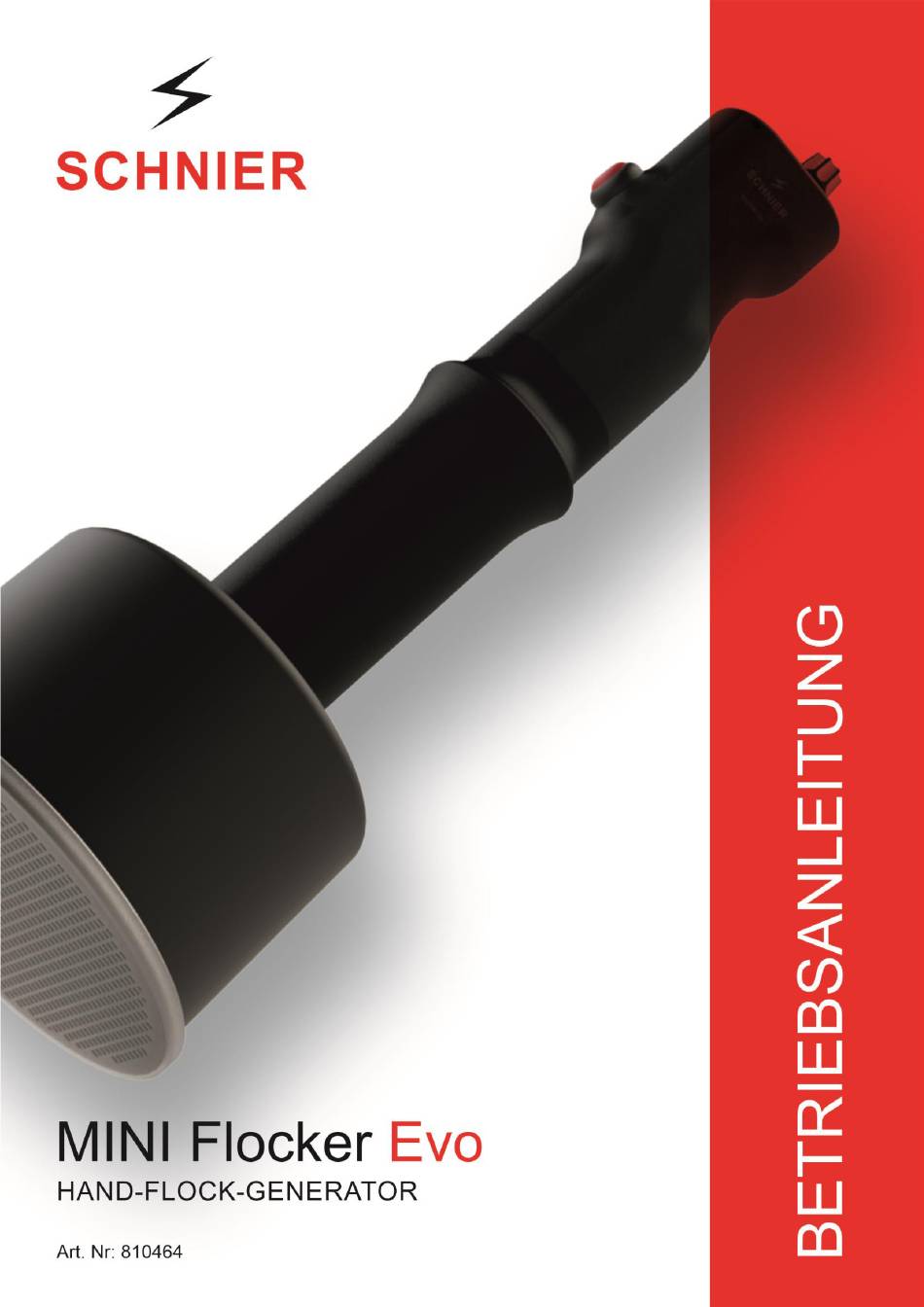

- Page 1 A r t . N r . : 8 1 0 4 6 4 7 0 k V 50 µA...
-
Page 2: Table Of Contents
Content Product and manufacturer 1.1. Description 1.2. Specifications 1.3. Product identification 1.4. Warranty 1.5. Manufacturer Guide to these operating instructions Intended use 3.1. Further notes on hazard prevention Structure and overview 4.1. Device overview Functional description 5.1. Mode of operation 5.2. -
Page 3: Product And Manufacturer
70 kV is the basis for a dense and perfect flock pattern that in- spires and convinces. The MINI Flocker Evo sets new standards in the field of hand-held flockers and is de- signed for a long service life. -
Page 4: Warranty
3. Intended use This device is intended exclusively for use as a hand flocking device. The MINI Flocker Evo complies with the safety requirements of the product standard EN 50050-3:2013. It may only be operated outside of an explosive atmosphere. -
Page 5: Further Notes On Hazard Prevention
3.1. notes on hazard prevention Further Hazard: Direct contact Description: When troubleshooting the open device, contact with high-voltage components may occur. DANGER! Warnings, instruction, use by authorized personnel only. Hazard: Breathing difficulties, suffocation Description: Flocking flight possible by cleaning the flocking table. ATTENTION! Perform full cleaning of the flocking table only with the suction unit running. - Page 6 Hazard: Other electrical hazards Description: Electrical malfunction due to damage to the housing structure and insulation. WARNING! Preventive maintenance by checking the device and applicators for damage. Hazard: Lethal electrocution Description: Danger of unintentional contact to the high voltage due to insulation faults. DANGER! Preventive maintenance to avoid insulation faults.
- Page 7 General: • Deviation from the conditions for above intended use is not permitted. • Not a toy. Keep away from children. • Remove flammable liquids, vapors and flammable gas mixtures before start-up. • Do not operate if persons with pacemakers are in the vicinity. •...
-
Page 8: Structure And Overview
4. Structure and overview 4.1. Device overview 1 Pushbutton High Voltage on 2 4 mm socket for ground wire 3 Battery indicator 4 Operating indicator 5 Battery lock 6 Quick change flap 7 Li-Ion battery (please insert (+) pole downwards into the device) Operating instructions 810464-BAL-DE-210401 Version 01.4.2021 Page 8 of 12... - Page 9 8 High voltage connection 9 Damping resistor, encapsulated 10 Applicator with cast electrode 11 Flocking screen Operating instructions 810464-BAL-DE-210401 Version 01.4.2021 Page 9 of 12...
-
Page 10: Functional Description
Power Series with the plus pole (+) facing down. Close the quick-change flap [6] tightly again. A different battery may only be used at your own risk! • Place the applicator in the lower end of the MINI Flocker Evo and screw it on hand- tight. •... -
Page 11: Declaration Of Conformity
Product: Hand flocking device Type Elektrostatic hand flocking device SCHNIER No.: MINI Flocker Evo Art-Nr. 810464 Trade name: MINI Flocker Evo It is expressly declared that the device complies with all relevant provisions of the following EC directives and regulations:... - Page 12 Immunity for residential, commercial and light-industrial environments. (IEC 61000-6-1:2005); German version EN 61000-6-1:2007 EN 1127-1:2019 Explosive atmospheres - Explosion prevention and pro- tection - Part 1: Basic concepts and methodology Rommelsbach 01.04.2021 Olav Schnier (Geschäftsführer) Operating instructions 810464-BAL-DE-210401 Version 01.4.2021 Page 12 of 12...
