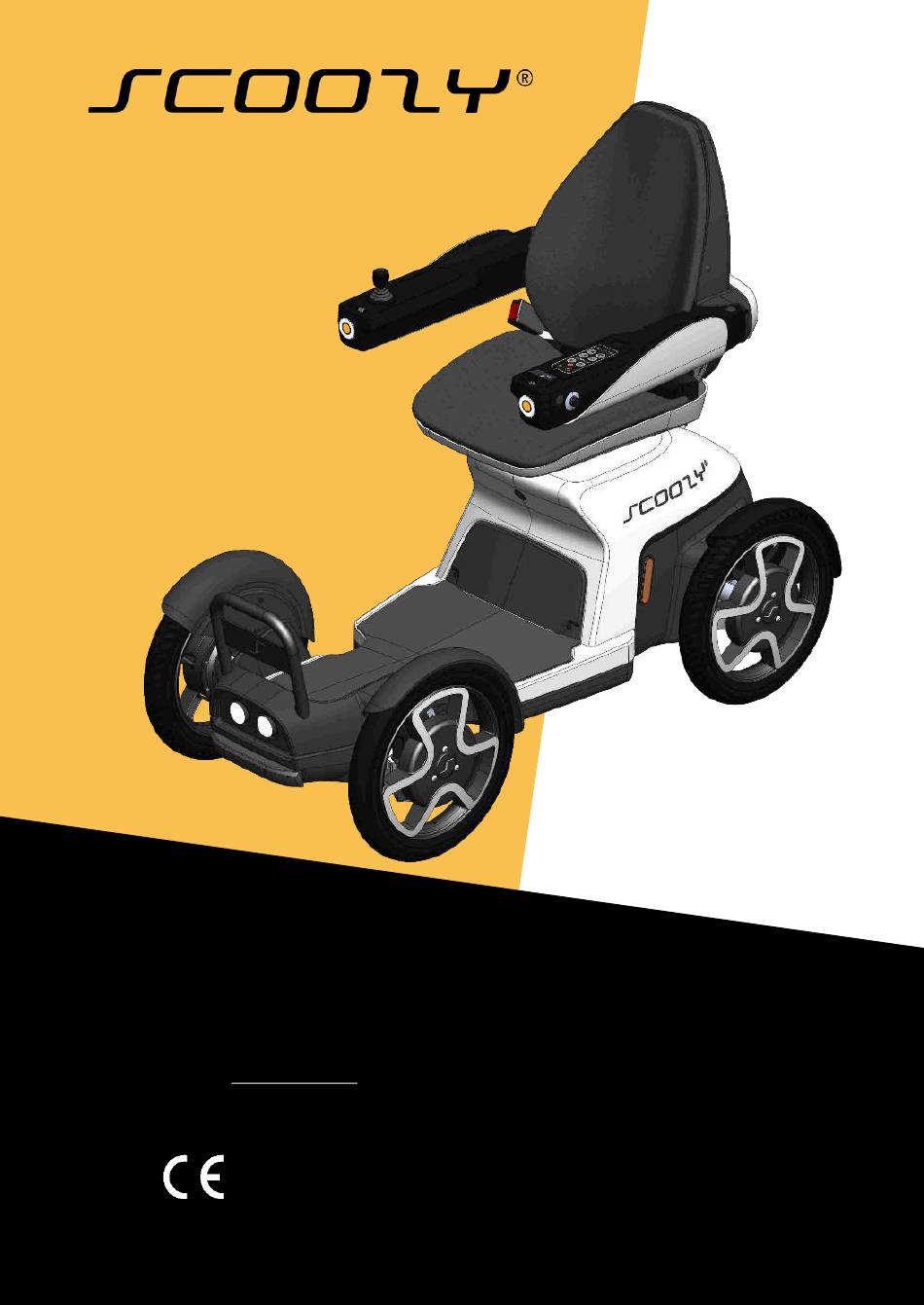

- Page 1 Scoozy B.V. Groothandelsweg 1 2645 EH Delfgauw Nederland USER MANUAL Web: www.scoozy.nl E-mail: info@scoozy.nl SCOOZY C SERIE Version: C-EN-01-2022-003 Date: April 2022\ ENGLISCH...
- Page 2 Thank you for choosing Scoozy! With Scoozy you can get everything out of life and go on an adventure. You are in control and will discover ultimate freedom. There is nothing between you and the world. With the information in this user manual you can use and maintain Scoozy safely.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 SAFETY REGULATIONS ..................6 INTENDED USE ....................6 SCOOZY IS DEVELOPED FOR: ................6 DRIVER ......................6 OPERATING CONDITIONS ..................7 SCOOZY IS NOT DEVELOPED FOR: ..............7 1.1 SAFETY ADVICE ....................8 GENERAL ......................8 USE ........................ 8 DRIVING WITH SCOOZY .................. - Page 4 JOYSTICK USE ....................19 3 USE HECK BEFORE USE..................20 TIRE PRESSURE .................... 20 TIRE WARNINGS .................... 20 3.1 DRIVING WITH SCOOZY .................. 21 ENTRY WARNINGS ..................21 SWITCH ON WITH KEY ..................21 RIJDEN ......................22 3.2 USER MENU 24 3.3 CHANGING SETTINGS ...................25...
-
Page 5: Driver
WARNINGS.....................29 3.8 TRANSPORTATION OF SCOOZY..............30 FIXATION POINTS ..................30 LIFTING ......................31 4 BATTERY READING THE BATTERY STATUS ..............32 CHARGING THE BATTERY ................32 HEATING BATTERY ..................34 5. MAINTENANCE ....................36 MAINTENANCE BY USER ................. 36 MAINTENANCE BY A TECHNICIAN ..............37 CLEANING WARNINGS .................. -
Page 6: Safety Regulations
INTENDED USE Scoozy can be used as an EN12184: Type C scooter. This means that Scoozy can mainly drive outdoors, on paved and unpaved roads and trails. If in doubt, please refer to this manual again. -
Page 7: Scoozy Is Developed For
SCOOZY IS NOT DEVELOPED FOR: • Scoozy was not developed for off-road use, but for all-road use. This means for paved and unpaved trails and not for surfaces such as beaches, riverbeds, mud, snow, rocks, gravel and other rough terrains. -
Page 8: Safety Advice
• Using Scoozy to tow loads is at your own risk. • Keep the protruding fixed or loose parts of, in and on Scoozy in mind. These can cause damage to the surroundings and Scoozy. • Avoid physical contact with the motors of Scoozy. The motors are constantly moving during use and can reach high temperatures. - Page 9 • When an electronic fault is detected, Scoozy will come to a controlled stop. • Scoozy has an emergency stop on the control panel to bring it to a fast stop in case of an emergency. • Parts in which body parts can get trapped, are shielded.
-
Page 10: Slopes And Other Obstacles
SLOPES AND OTHER OBSTACLES • Avoid slopes greater than 10°. Driving it (forwards or backwards) is dangerous. Scoozy itself indicates when you are driving on a slope of >10° and adjusts its behaviour accordingly. • Never use the freewheel on a slope! •... -
Page 11: Product Description
2 PRODUCT DESCRIPTION 1 SCOOZY A. Joystick control unit J. Motor transaxle B. Armrest K. Daytime running lights & turn C. Backrest signal D. Belt receiver L. Front luggage rack E. Connection for M. Headlights (Outdoor only) charger/software N. Front wheel F. -
Page 12: Control Unit
2 CONTROL UNIT A. Display B. Rear-view mirror C. On/off switch D. Direction indicator(s) E. Emergency stop F. D/S indication LED G. Speed H. Drive Lighting J. Horn K. Battery status L. Hazard lights M. SET N. Function O. MENU... -
Page 13: Features
• ODO and TRIP data per trip; • Error codes (when they occur). This data can only be linked to a Scoozy ID and not to a user. Your dealer can switch off the connection for you. User Manual C-EN-01-2022-003... -
Page 14: Standards
Nevertheless, be careful when using Scoozy and mobile or electronic devices at the same time. It is possible that other electrical appliances will be affected by Scoozy (think of shopping gates, electric entrance doors, etc.). Scoozy itself can also be affected by other electrical appliances (e.g. -
Page 15: Marking On Product
FREEWHEEL INFORMATION The sticker is located on the back of the right wheel arch. It contains warnings about the use of the freewheel. If the indications on Scoozy are damaged or not present, please contact the supplier. User Manual C-EN-01-2022-003... -
Page 16: Versions And Accessories
2.4 VERSIONS AND ACCESSORIES VERSIONS The differences between the versions in which Scoozy C is available are described in the table below: Version Range Drive Scoozy C 50 km Scoozy C XTND 100 km ACCESSORIES The following accessories are available for Scoozy C: •... -
Page 17: Weight And Luggage
Max. 150 kg user weight on the seat. • WARNINGS • Never carry more weight than indicated. This leads to very unsafe situations with serious injury or death as a result. • Never place weight in locations other than indicated. User Manual C-EN-01-2022-003... -
Page 18: Before Use
MAIN SWITCH Scoozy is activated by pressing the On/Off switch (2C). The computer is always in sleep mode. The Scoozy computer is completely switched off upon delivery by interrupting the power supply with a connector in the High Power cable. -
Page 19: Use
• the battery status in the display; TIRE PRESSURE For safety reasons, make sure that the Scoozy tire pressure is correct. If the tire pressure is too low, road holding and range deteriorate. We recommend using the following tire pressure: •... -
Page 20: Driving With Scoozy
ENTRY WARNINGS • The wheels of Scoozy steer completely outwards to give you more space to step in the vehicle. Release the button when the door reaches the best position. The door will lock •... -
Page 21: Rijden
Check that the road is clear before changing direction. • Scoozy reverses slower than forward. • Despite the small turning circle of Scoozy, turning in elevators or doors, for example, can be difficult. Make sure that the gear is always in D for short manoeuvres. User Manual... - Page 22 This causes Scoozy to brake mechanically to 0 km/h. Pay attention! The wheels can lock on wet or slippery surfaces In the event of a major failure of the system, Scoozy will activate the mechanical fail-safe brake. This allows Scoozy to come to a safe stop in any situation.
-
Page 23: User Menu
The distance to be travelled or the range in kilometers; (a); • Speed setting (b); • The name of the current screen (c); • Eventual icons for the lighting / blinkers / error messages; 2. Press MENU (2D). Each time you press you will get the following screen: •... -
Page 24: Changing Settings
3.3 CHANGING SETTINGS Scoozy can be controlled on 3 skill levels. By default, Scoozy is at level 1 and you can adjust this level at the settings. A technician has even more setting options. The level can be changed at the control unit. Put Scoozy in P, go to menu > settings and change the level you are driving. -
Page 25: Joystick Controls
0 km/h and then reverse. LEFT / RIGHT 2. Move the joystick (1A) to the left/right (3/4) and the front wheels of Scoozy will steer to the left/right. 3. Move the joystick forward or back to start driving in this direction. -
Page 26: Freewheel
Never use this function on a slope or while driving. The magnetic brake will not work, which means that Scoozy can drive freely. • Scoozy keeps the freewheel speed of the vehicle below 2 km/h. This only works with a connected and working battery. •... -
Page 27: Operating Other Functions
The numbers on the display flash and go to 00. BATTERY STATUS Press the Battery Status button (2K) to immediately see the remaining range in kilometres on the display. Press Menu to go back to speed. User Manual C-EN-01-2022-003... -
Page 28: Parking And Storage
• To be sure, the battery can also be disconnected from the computer through the hatch (1Q). Scoozy will not use any energy in this way. WARNINGS • Always secure Scoozy by placing a chain lock through one of the wheels when storing it. -
Page 29: Transportation Of Scoozy
SERIOUS INJURY WARNING When transporting Scoozy in a motorized vehicle, transfer to a fixed seat of the motor vehicle. Scoozy must never be used as a seat support in a motorized vehicle, not even when Scoozy is secured with a taxi lock. -
Page 30: Lifting
LIFTING Scoozy can be lifted from a lifting eye in the center of the seat. The lifting eye is not supplied with Scoozy as standard. To attach the lifting eye, the seat cushion must be removed. The lifting eye can then be screwed into the appropriate opening in the center of the seat. -
Page 31: Battery
>5 km You can now only steer with Scoozy, if necessary, use the freewheel (1F) to move Scoozy. Charge Scoozy as soon as possible at a range below 5km! The advice is to charge the battery within a range of 10 km because of influence of driving conditions on the range. - Page 32 SLEEPMODE BATTERY If Scoozy's battery is less than 50% full and Scoozy has not been used for 14 days, the battery enters a so-called sleep mode. On the display this is shown as 00 km range. You can activate the battery by connecting the battery charger, steering left and right, or by simply start driving.
-
Page 33: Heating Battery
Scoozy has a resistor to heat the battery and to send braking energy to in cold conditions. The battery cannot be charged below 0 °C, so Scoozy will attempt to keep the battery at the right temperature when the outside air is colder than 0 °C. The following situations can occur: The battery gets colder than 0 °C while driving:... - Page 34 We strongly advise against driving with Scoozy when the core temperature • of the battery is below 0 ° C. It is possible that when you drive down a steep slope for a long time, the battery is nevertheless charged. When this occurs frequently, it can cause damage to the battery.
-
Page 35: Maintenance
Check the tread on your tires every six months. Have it replaced in case of severe wear or drying. Keep Scoozy clean. To do this, use a damp cloth or rinse with some water. If • necessary, use a mild cleaning agent to remove the dirt. -
Page 36: Maintenance By A Technician
MAINTENANCE BY A TECHNICIAN During the inspection, a certified technician will check Scoozy for the following points, among other things: • Visual inspection of bodywork and wheels; • Check carbon brushes on rear motor; • Check battery charger operation; •... -
Page 37: Mechanical Faults
3x, call technician Rubber mat is loose Tape is weathered Apply new double- sided tape, call technician Scoozy pulls left / right Steering rod bent, Align steering system, electrical alignment call technician expired Wheels vibrate Wheel attachment is... -
Page 38: Notifications
Freewheel Scoozy cannot drive because the “handbrake” is still released. Heating Scoozy is heating up the battery for driving or charging. Temp. Battery is below 0 °C and <20% full. Take Scoozy to a warm place. User Manual C-EN-01-2022-003... -
Page 39: Notifications While Driving
NOTIFICATIONS WHILE DRIVING Notification Screen Cause Slope Scoozy is on a slope of > 10 degrees, only driving in D is possible.. Battery After charging you drove a long time downhill. The battery is now too full. The battery is very empty, only steering and manual override work. -
Page 40: Error Messages
3. If the fault persists, contact a dealer / technician. 4. Pass on the report and the number of the error to the dealer. Scoozy's software does not currently have the ability to notify the user of more specific malfunctions. -
Page 41: Warranty Conditions
Scoozy’s products are carefully formulated and carefully checked before they leave the factory. If it turns out that Scoozy or any part of it does not meet expectations, you can contact the party where you purchased the product. Scoozy respects consumer protection laws and regulations applicable in the country of purchase. - Page 42 Scoozy against any claims from Users or other third parties for defects based on incorrect or careless use of the product; c. Parts subject to wear and tear and the need for repair or replacement of the parts is the actual result of normal wear and tear.
- Page 43 Scoozy does not accept any other or further liability than what is outlined under 1. In particular, Scoozy does not accept any liability for consequential damage, in whatever form.
-
Page 44: Technical Specifications
Max. wading depth....... 50 mm Turning radius………....1300 mm Min. corridor width for turning..2000 mm TIRE PRESSURE User weight up to 80kg....2.5 Bar / 36 PSI User weight up to 150kg....3.0 Bar / 44 PSI User Manual C-EN-01-2022-003... - Page 45 * In case of a double battery. ** In case of a Scoozy C 4WD. *** This means that driving through rain is possible, but Scoozy cannot withstand driving through deep puddles. This can damage the Scoozy on-board computer! Width 680mm...
-
Page 46: Specifications To Iso 7176:15 Annex A
Mass of heaviest part kg (seat) Static stability down hill degrees Static stability up hill degrees Static stability sideways degrees Energy consumption Dynamic stability uphill degrees Driving up an obstacle Maximum forward speed km/u Minimum braking distance at max speed User Manual C-EN-01-2022-003... - Page 47 Footrest to seat distance Leg to seat angle Armrest seat height Front of armrest to backrest Hand hoop diameter Horizontal location of the axis Turning radius to centre of vehicle 1300 Mass of test dummy used ISO 7176-22 User Manual C-EN-01-2022-003...
-
Page 48: Maintenance Historie
Dealer stamp / date / signature Dealer stamp / date / signature 6th annual inspection / 12.000 km 7th annual inspection / 14.000 km Dealer stamp / date / signature Dealer stamp / date / signature Remarks: User Manual C-EN-01-2022-003... -
Page 49: General
DISPOSAL OF PRODUCT AND PACKAGING If your Scoozy is redundant or needs to be replaced, it can usually be taken back by your dealer after consultation. If this is not possible, ask your municipality about the possibilities for reuse or environmentally friendly processing of the used materials. - Page 50 The information in this manual applies to the standard version of the product. Scoozy accepts no responsibility for any damage caused by changes or modifications to the product after the time of first sale. Scoozy can also not be held liable for damage caused by work by third parties.
-
Page 51: Declaration Of Conformity
Regulation (EU) 2017/745 on medical devices (MDR) Product identification Product group: Mobility scooter Brand: Scoozy Model: Scoozy C Serial number: 101-600 Basic UDI: 8720648771SCOOZYC8G Product class: Class I ( to Annex VIII Chapter III, rule 1 and 1 rule 13) - Page 52 YOUR DEALER Serial number : ………………………………….. Delivery date : ……… / ……….. / …………. User Manual C-EN-01-2022-003...
