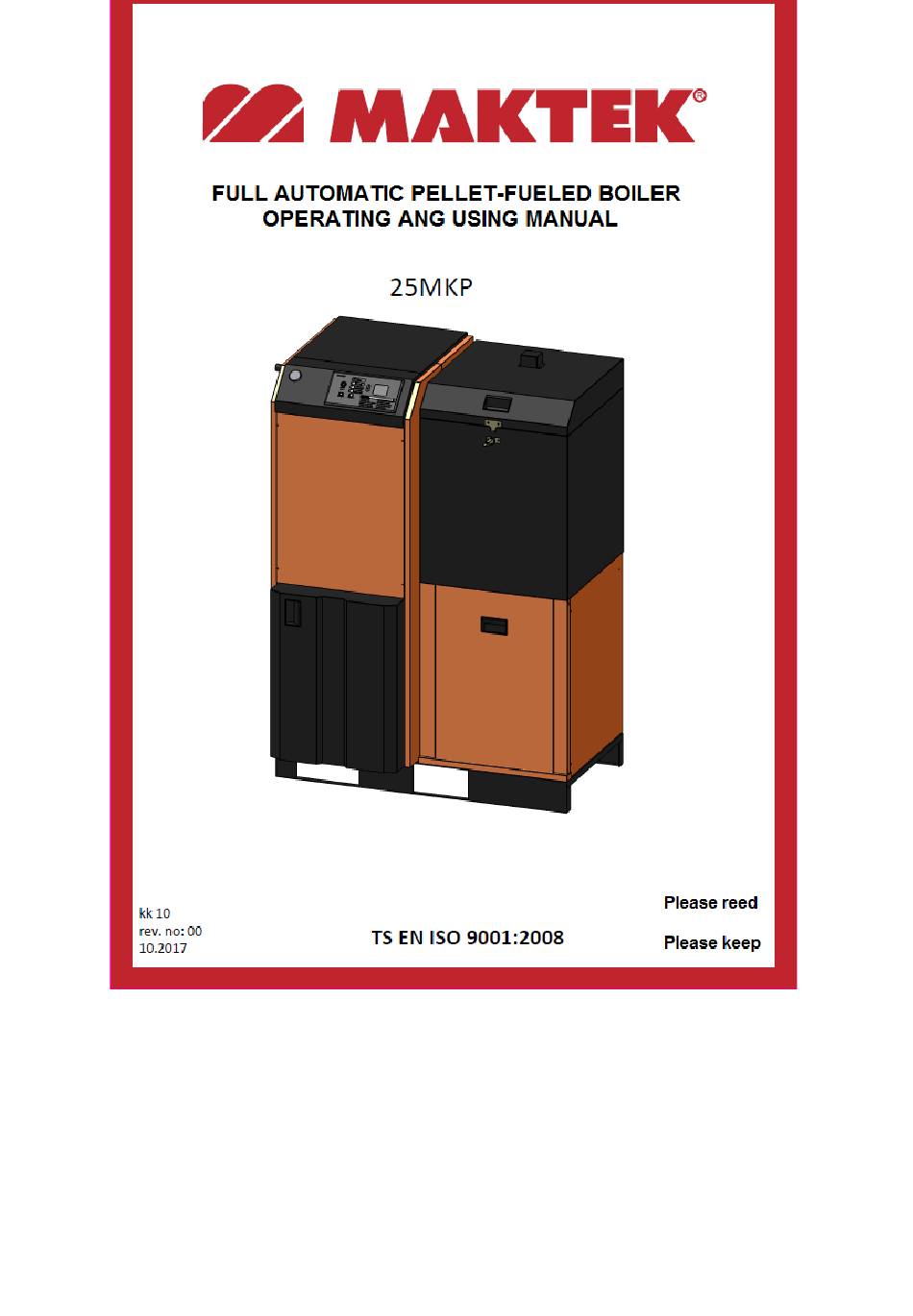

Maktec 25MKP Operating And Using Manual

Full automatic pellet-fueled boiler

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the 25MKP and is the answer not in the manual?

Questions and answers

Summary of Contents for Maktec 25MKP

Page 2: Table Of Contents
CONTENT 1. SAFETY PRECAUTIONS Page 4 1.1 GENERAL PRECAUTIONS BEFORE USING Page 5 2. GENERAL FEATURES Page 6 3. APPEARANCE AND EXTERNAL DIMENSIONS Page 7 3.1 SECTIONS OF THE BOILER Page 8 4. BOILER MOUNTING Page 9 4.1 INSTALLATION AND FILLING WATER Page 10 4.2 BOILER INSTALLATION MOUNTING SCHEMA Page 11...
Page 3 PREFACE MAKTEK is one of the leading companies in heating industry since the day it was established in 1976 . Our company has acquired advanced technology and superior quality as a guide and continues its way in line with these principles. This handbook is a helpful guide to the user for installing, operating and maintaining the boiler.
Page 4: Safety Precautions
1.SAFETY PRECAUTIONS Symbol Key This sign indicates the risk of personal injury, which may be fatal, if the warnings are not followed. This sign indicates the situations that may cause harm to the environment, property and animals if the warnings are not followed.
Page 5: General Precautions Before Using
1.1 GENERAL PRECAUTIONS BEFORE USING • Check whether the mounting area complies with the technical requirements for waste gas installation, water installation and electrical installation. • For safety and safe use of electrical installation, make sure that the isolated grounding is properly done and that the ground line is not phase- misplaced.
Page 6: General Features
2.GENERAL FEATURES 25.000 (29 kw) – 40.000 kcal/h (48 kw) – 60.000 kcal/h (72 kw) capacity Effortless and highly efficient automatic operation with fully automatic ignition and pellet loading feature. High efficient heating with 6-8 mm diameter pellets Adjusting and monitoring the temprature of warming water in the system with digital display.
Page 7 3.APPEARANCE OF THE BOILER AND EXTERNAL DIMENSIONS...
Page 8: Sections Of The Boiler
3.1 SECTIONS OF THE BOILER Manometer Control Panel Cleaning Door 3bar Safety Valve Expansion Tank Engine with Reductor Bunker Fuel Loading Trap Fuel Level Sensor Chimney Temperature Sensor Smoke Pipe Cleaning Mechanism Handle Chimney Outlet Circulation Inlet Connection 1" Fuel Loading Pipe Temperature Sensor Ignition Rezistance Filling - Draining 1/2"...
Page 9: Boiler Mounting
4.BOILER MOUNTING • Boiler should be mounted in balance and mounted on a 10cm higher platform at the boiler room. • Boiler should be connected to a well draught chimney and minimum number of elbows should be used between chimney and boiler. •...
Page 10 4.1 INSTALLATION AND WATER FLOOD A by-pass line should be arranged between the inlet and outlet points of the circulation pump, as shown in the installation diagram. This is to increase the safety in the event of a power failure or other case that can cause non functioning of the circulation pump.
Page 11: Boiler Installation Mounting Schema
4.2 BOILER INSTALLATION MOUNTING SCHEMA...
Page 12: Ventilation
4.3 VENTILATION The area where the boiler is installed must always be suppplied with fresh air by opening a window or a duct. Fresh air is required in order to burn the fuel safely and efficiently. Otherwise once the burning starts, the oxygen level will drop and the burning will detoriate.
Page 13: Chimney Connection Schema
l Main walls of the building should never be used as chimney wall element. Chimney must be inside the building unless otherwise necessary. If the chimney must pass from outside, the isolation must be done properly. l The chimney must be frequently cleaned in order to avoid tar ,soot and clogs that would prevent chimney draught.
Page 14 5.TECHNICAL SPECIFICATIONS TECHNICAL SPECTS Boiler Type 25 MKP Capacity (kcal/h) 25000 Heat Power ( kW ) Weight ( kg ) Working Pressure ( bar ) Test Pressure ( bar ) Circulation Inlet-Outlet 1” Security Inlet 1” Security Outlet 1” Filling - Draining 1/2”...
Page 15: Control Panel
6. FULL AUTOMATIC PELLET BOILER CONTROL PANEL On – Off – Reset This is on off button of the boiler. It is used to reset when the boiler breaks down. Touch the button for 2 seconds to switch on, off and reset. Fuel Load This button is used for manuel preloading by only authorized services during initial operation (End users must not do preloading)
Page 16 When no setting is done, the value shown at the screen is the boiler water temperature.
Page 17: Lcd Screen Symbols
6.2 LCD SREEN SYMBOLS Fan is Activated Reductor Engine is Activated Circulation Pump is Activated Error Symbol Burning Symbol Autom atic Ignition Rezistance is Activated Heating Circuit is Working Fan Operation Level...
Page 18: Starting Up And Usage
7.STARTING UP AND USING Boiler start up must only be done by MAKTEK AUTHORIZED SERVICE. 7.1 INITIAL OPERATION At first start-up, the system water must be completely filled and air must be purged from system. The system water pressure should be 1.5 bar on the manometer at the front panel.
Page 19 FAN LEVEL USING SETTING LOADING : 9 sec RECOMMENDED BY THE FACTORY WAITING : 29 sec...
Page 20: Warnings About Pellet
7.2 WARNINGS ABOUT PELLET Pellets in suitable standarts like 6-8 mm in diameter, 6-30 mm in length, made of wood with shells peeled, moisture content 10% -15%, minimum 3500-4000 kcal heat value, no chemicals and additives added should be used in the boiler.Our company is not responsible for any faults and inefficient operation in case of using improper pellets as fuel.It is important to make sure that there are no foreign substances in the pellet.Damage caused by foreign material coming out of...
Page 21 Never open the boiler doors. Open the bypass valves in the system if available. When power is back, reset all settings.
Page 22: Cleaning And Maintenance
CLEANING AND MAINTENANCE INSTRUCTIONS In order to use your boiler safely for a long period of time, please pay attention to below mentioned rules of cleaning and maintainence. Pellets in suitable standarts like 6-8 mm in diameter, 6-30 mm in length, made of wood with shells peeled, moisture content 10% -15%, minimum 3500-4000 kcal heat value, no chemicals and additives added should be used in the boiler Pellets made of chipboard and MDF powder should never be used in the boiler.
Page 23: Electrical Schema
-Do not cover the fronts of the radiators with objects. -Take advantage of the boiler control panel's special setting possibilities, and set the desired DHW temperature from the operating panel. In this case, you will avoid overheating of the water and unnecessary fuel consumption. -Consume hot water under control.
Page 24 11.FAILURES AND SOLUTIONS Attention: Cut off electric connection before carrying out any repairs or maintenance on boiler PROBLEM PROBABLE SOLUTION CAUSE PROPOSAL Load the fuel in fuel tank up to 15 Fuel in fuel tank may be low cm level to cover. H1 Fuel is Finished The sensor that controls the Check that the fuel sensor is in place.
Page 25 Be sure that you use fuel that has Use of improper fuel specifications stated in operating manual. Combustion chamber resistance Clean the combustion chamber resistance outlet front may be clogged. outlet front. All fuel may have run out because the fuel Fuel sensor may be faulty.
Page 26 Burning Efficiency is low User settings are set low. Set back to factory default settings. Chimney draught is weak. Clean the chimney and check the draught. Boiler chimney connections may be Check the boiler chimney outlet and pipe Smoke Comes From Chimney connections.
Page 27: Shipping And Handling
12.SHIPPING AND HANDLING PLACING THE BOILER ON VEHICLE When the boiler is placed on vehicle, loading must be done with a crane. Gates of the vehicle body must be opened previously. Please use supporting ring while loading boiler with crane. Pass the crane boom hook from the supporting ring.
