Summary of Contents for PM MPC-5V100

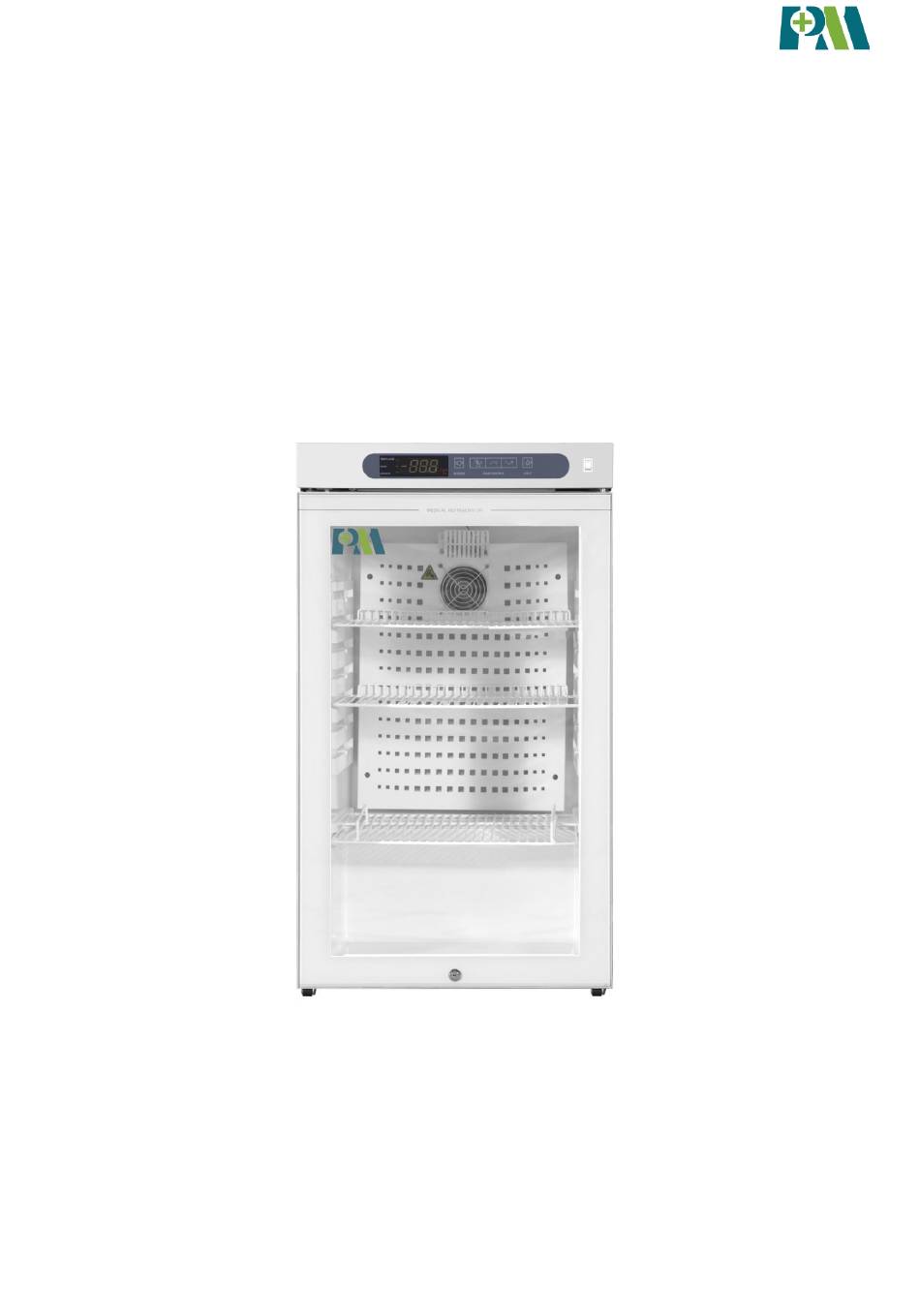

- Page 1 OPERATION MANUAL Pharmacy Refrigerator MPC-5V100 VERSION: 2020-10 (MPC-5V100) The image shown here is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern.
- Page 2 Statement: Thank you for buying our medical refrigerator. For your safe and convenient use and reasonable maintenance of the product, please read the operation instruction carefully and keep it properly for reference. For damages of any instrument due to the fact that the user does not use the product according to the instrument operating environment declared in the handbook or injuries due to the fact that individual does not operate the product according to safety instructions, we have no obligations and responsibilities to be in charge of them.
- Page 3 Safety Instruction: ➢ Please read the handbook carefully when using the machine for the first time. ➢ The medical refrigerator can only be operated by trained and authorized personnel. ➢ The maintenance of the equipment can only be accomplished by professional service team ➢...
-
Page 4: Table Of Contents
CONTENTS I. Diagram and Introduction of Product ..........4 II. Preparation and Attention before Use ..........5 III. Instructions ..................7 3.1 First use ..................7 3.2.1 Key function ................ 7 3.2.2 Parameter settings .............. 8 3.2.3 Error display ................ 9 IV. -
Page 5: Diagram And Introduction Of Product
I. Diagram and Introduction of Product Glass door heating switch Control panel Glass door Shelf Door Lock DiagramⅠ: Structural diagram Due to the improvement and various models of products, the actual product may be different from the diagram, please in kind prevail！... -
Page 6: Preparation And Attention Before Use
Medical refrigerator series products are applied to places needing storage at constant temperature, such as hospitals, epidemic prevention stations, blood banks, scientific research institutions, colleges and universities, biological pharmacies, genetic engineering, entrepreneurs, etc. The storing temperature in the body can be regulated by the temperature button on the control panel. - Page 7 Notes: please note that do not let the power line be damaged by trundles when pushing the medical refrigerator. Notes: be sure to take off the packaging pedestal on the bottom of the medical refrigerator. Notes: Do not put goods into the medical refrigerator which is just plugged in. Let the empty body run for a while (about 12 hours) and then put the goods to be refrigerated into the refrigerator.
-
Page 8: Instructions
III. Instructions 3.1 First use ➢ After being unpacked, the medical refrigerator should be placed well to according to the service environment requirement; ➢ Although the refrigerator has been cleaned inside when leaving factory, it is advised to scrub the medical refrigerator with warm water added with a little neutral detergent and then scrub it with clean water and wipe it up (electrical system cannot be cleaned but scrubbed with dry cloth);... -
Page 9: Parameter Settings
❖ 4.Mute ❖ 5.Setting ❖ 6.Up ❖ 7.Down ❖ Please do not change the settings during normal using. ❖ Long press the power key will switch off the refrigerator. Long press the power button again, the refrigerator will work again. ❖... -
Page 10: Error Display
➢ Notes: If other parameter need to be changed, please contact after-sale or local distributor of us for setting. 3.2.3 Error display ➢ When faults of the refrigerator temperature display sensor including short circuit, open circuit, malfunction and incorrect connection appear, “E0” is displayed. When faults of the refrigerator temperature control sensor including short circuit, open circuit, malfunction and incorrect connection appear, “E1”... -
Page 11: Routine Maintenance
IV. Routine Maintenance In routine maintenance, in order to prevent electric shock or personnel injuries, be sure to cut off the power before repairing or maintaining the equipment and do not inhale drugs or particulate matters surrounding the equipment when maintaining the equipment. It is necessary to dry wet gloves to protect your hands. Otherwise, your hands may be cut by edges or corners of the refrigerator body. -
Page 12: Clearing Of Fault And Maintenance Service
reduction and metal rust of electrical components. Be sure not to clean the medical refrigerator with hot water and corrosive detergent or organic solvent. Also do not clean the medical refrigerator with scrubbing brush and wire brush. Children are not allowed to play games with the medical refrigerator. Notes:Do not allow children to use medical freezer to playing games . -
Page 13: Main Performance Index
VI. Main Performance Index 6.1 Main technical parameters Model Temp Volume Power supply Refrigerant Dimension MPC-5V100 2～8℃ 100L 220V, 50Hz R600a 505*510*875 6.2 Electrical schematic diagram VII. Packing list Model Operation instruction Shelf Keys MPC-5V100...
