Art. No. HRXX0013
This manual can be used with boilers KP 10, 11, 20, 21, 50, 51

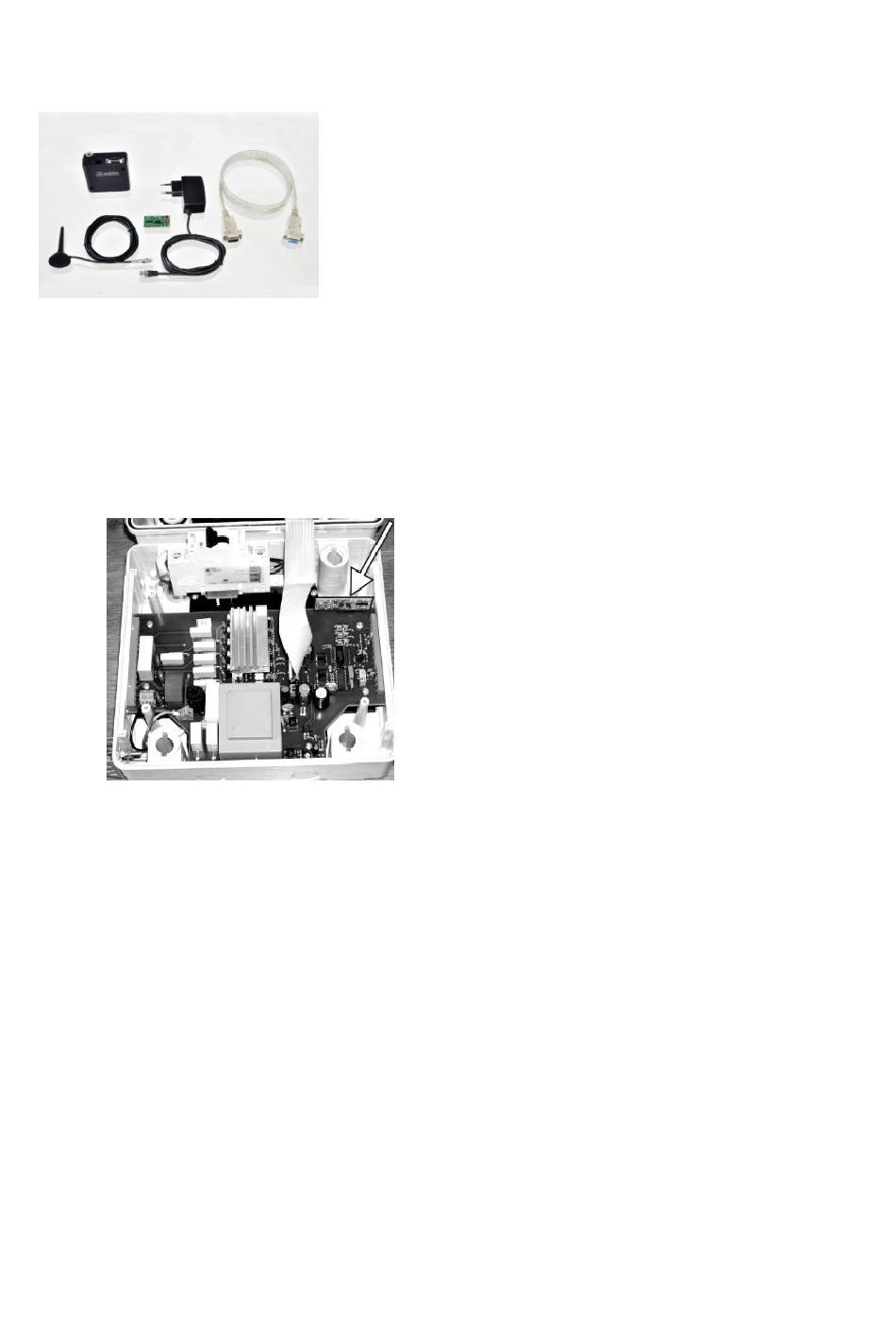

Hardware installation:
A) Remove front top cover of boiler
B) Open control unit box by 4x phillips screws
C) insert small PCB converter into socket of power board inside control unit
D) close control unit box and mount front boiler cover
E) interconnect GSM module with boiler (9-pin Cannon cable)
F) plug antene into GSM module
G) plug 12VDC adaptor into socket and GSM module
H) insert SIM card into GSM module
Configuration:
a) enter Main menu by pressing Enter button
b) set menu 8.GSM modem
c) turn modem on in menu 1.
d) Set your mobile number at menu „2.Mobil No.1" with international prefix (without 00 or +)
and confirm it by Enter button
e) Restart control unit by turning off and on again with main switch
f) After welcome screen „Ponast xxxx" display shows in short time period text:
„searching GSM"
„GSM found"
„GSM modem O.K."
g) Enter again into menu „8.GSM modem"
GSM MODEM CONFIGURATION
