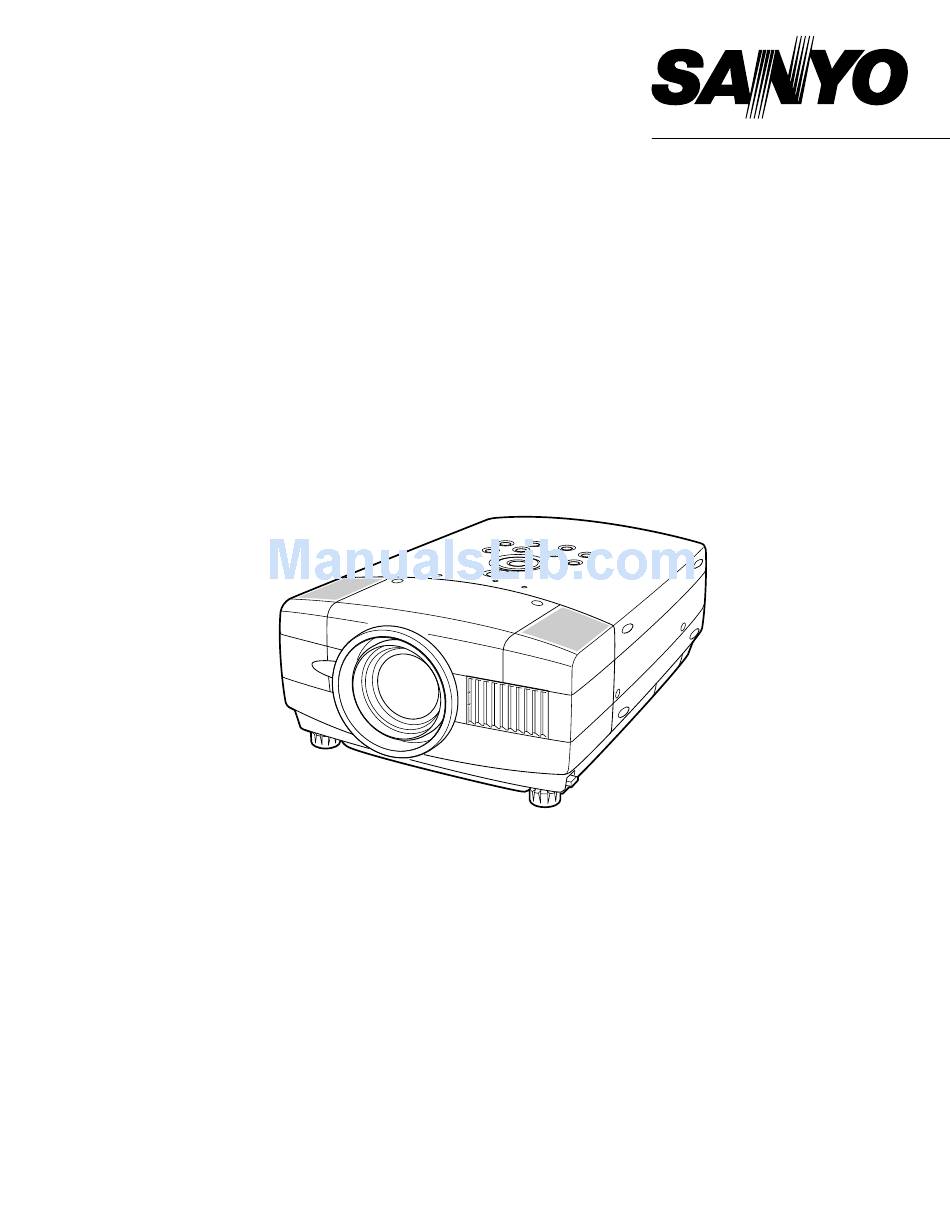

- Page 1 Multimedia Projector PLC-XT10A MODEL PLC-XT15A Owner’s Manual...
-
Page 2: To The Owner
Heat build-up can reduce the service life of your projector, and can also be dangerous. G Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes. G Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). -
Page 3: Safety Instructions
Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. -
Page 4: Federal Communication Commission Notice
: (818)998-7322 AC POWER CORD REQUIREMENT The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada : AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). -
Page 5: Table Of Contents
TABLE OF CONTENTS FEATURES AND DESIGN PREPARATION NAME OF EACH PART OF PROJECTOR SETTING-UP PROJECTOR CONNECTING AC POWER CORD POSITIONING PROJECTOR ADJUSTABLE FEET MOVING PROJECTOR CONNECTING PROJECTOR TERMINALS OF PROJECTOR CONNECTING TO COMPUTER CONNECTING TO VIDEO EQUIPMENT BEFORE OPERATION OPERATION OF REMOTE CONTROL UNIT... -
Page 6: Features And Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compact Design This projector is extremely compact in size and weight. -
Page 7: Preparation
PREPARATION NAME OF EACH PART OF PROJECTOR FRONT TOP CONTROLS AND INDICATORS INFRARED REMOTE RECEIVER PROJECTION LENS LENS COVER BACK EXHAUST VENTS HOT AIR EXHAUSTED ! Air blown from Exhaust Vents is hot. When using or installing projector, following precautions should be taken. -
Page 8: Setting-Up Projector
NOTE ON THE POWER CORD AC Power Cord must meet requirement of the country where you use a projector. Confirm an AC plug type with the chart below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer. -
Page 9: Positioning Projector
POSITIONING PROJECTOR G This projector is designed to project on a flat projection surface. G Projector can be focused from 4.1’ (1.2m) ~ 32.8’ (10.0m). G Refer to figure below to adjust screen size. 4.1’(1.2m) 39” 30” 39” Max. Zoom... -
Page 10: Adjustable Feet
G When carrying a projector, use a suitable carrying case. G Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best way. -
Page 11: Connecting Projector
CONNECTING PROJECTOR TERMINALS OF PROJECTOR This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 11 to 13 and connect properly. COMPUTER INPUT 2 (DIGITAL/ANALOG) Media Card Imager / Wireless Imager... -
Page 12: Connecting To Computer
13" MODE (640 x 480) 16" MODE (832 x 624) 19" MODE (1024 x 768) 21" MODE (1152 x 870) (✽ = Cable or adapter is not supplied with this projector.) • USB Cable • MAC Adapter (When connecting to Macintosh computer) ✽... -
Page 13: Connecting To Video Equipment
S-VIDEO jack are connected, Y-Pb/Cb-Pr/Cr jacks has priority over S-VIDEO jack. NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. ✽ = Cable is not supplied with this projector.) •... -
Page 14: Before Operation
FOCUS BUTTON Used to adjust focus. (P20) LASER POINTER FUNCTION These caution labels are put on remote control. POWER ON-OFF BUTTON Used to turn projector on or off. (P19) AUTO PC ADJ. BUTTON NO SHOW Use to operate AUTO PC IMAGE Adjustment function. -
Page 15: Remote Control Batteries Installation
BEFORE OPERATION Operating Range Point Remote Control Unit toward projector (Receiver Window) whenever pressing any button. Maximum operating range for Remote Control Unit is about 16.4’ (5m) and 60° in front and rear of a projector. -
Page 16: Top Controls And Indicators
BEFORE OPERATION TOP CONTROLS AND INDICATORS This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top. TOP CONTROLS AND INDICATORS LAMP REPLACE INDICATOR WARNING TEMP. INDICATOR Turns yellow when the Flashes life of the projection internal lamp draws to an end. -
Page 17: Operating On-Screen Menu
OPERATING ON-SCREEN MENU HOW TO OPERATE ON-SCREEN MENU You can control and adjust this projector through ON-SCREEN MENU. Refer to the following pages to operate each adjustment on ON-SCREEN MENU. 1 DISPLAY MENU Press MENU button to display ON-SCREEN MENU. -
Page 18: Menu Bar
/Noise Reduction/Progressive] (Refer to P34, 35) SCREEN MENU SETTING MENU Used to adjust size Used to change of image. [Normal settings of projector /True/Wide or reset Lamp /Digital zoom +/–] Replace Counter. (Refer to P30) (Refer to P36, 37) IMAGE ADJUST MENU... -
Page 19: Basic Operation
POWER ON-OFF button. When both WARNING TEMP. and READY indicators to flash, a projector cannot be turned on by pressing POWER ON-OFF button. In this case, follow procedures below: 1. -
Page 20: Adjusting Screen
BASIC OPERATION Press ZOOM button on Top Control or ZOOM L/M button on Remote Control Unit. The message “Zoom” is displayed. Press ZOOM L button or POINT UP button to make image larger, and press ZOOM M button or POINT DOWN button to make image smaller. -
Page 21: Picture Freeze Function
PICTURE FREEZE FUNCTION Press FREEZE button on Remote Control Unit to freeze the picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button. Press NO SHOW button on Remote Control Unit to black out the image. -
Page 22: Computer Input
Select INPUT source by pressing INPUT button on Top Control. Select INPUT source by pressing COMPUTER 1 or COMPUTER 2 button on Remote Control Unit. If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below). MENU OPERATION When connect the output (Analog) from computer to Computer 1 (HDB 15-pin) terminal on the projector. -
Page 23: Selecting Computer System
SELECTING COMPUTER SYSTEM This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATIONS” on page 24). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.) Note : Projector may display one of the following messages. -
Page 24: Compatible Computer Specifications
COMPUTER INPUT COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 140 MHz of Dot Clock. ON-SCREEN RESOLUTION DISPLAY VGA 1 640 x 480 VGA 2 720 x 400... -
Page 25: Pc Adjustment
Store adjustment parameters. Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in PC SYSTEM Menu (P23). Refer to step 3 of MANUAL PC ADJUSTMENT section (P27). -
Page 26: Manual Pc Adjustment
Multi- Scan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. - Page 27 Display area Selects area displayed with this projector. Select the resolution at Display area dialog box. Display area H Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button. Display area V Adjustment of vertical area displayed with this projector.
-
Page 28: Picture Image Adjustments
Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture level preset on this projector. Real Picture level with improved halftone for graphics. IMAGE 1~4 User preset picture adjustment in IMAGE ADJUST Menu (P29). -
Page 29: Image Level Adjustment
IMAGE LEVEL ADJUSTMENT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to the item that you want to adjust. and then press SELECT button. The level of each item is displayed. -
Page 30: Picture Screen Adjustment
COMPUTER INPUT PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon. -
Page 31: Video Input
Select INPUT source by pressing INPUT button on Top Control. Select INPUT source by pressing COMPUTER 1 or VIDEO button on Remote Control Unit. If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below). MENU OPERATION When connecting to those equipment, select a type of Video source in SOURCE SELECT MENU. -
Page 32: Selecting Video System
When Video System is PAL-M or PAL-N, select system manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N. -
Page 33: Picture Image Adjustments
Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture level preset on this projector. Cinema Picture level adjusted for the picture with fine tone. IMAGE 1~4 User preset picture adjustment in IMAGE ADJUST Menu (P34, 35). -
Page 34: Image Level Adjustment
VIDEO INPUT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to the item that you want to adjust and then press SELECT button. The level of each item is displayed. -
Page 35: Picture Screen Adjustment
Closes IMAGE MENU. PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon. -
Page 36: Setting
UP/DOWN/LEFT/RIGHT button(s). ADJUSTMENT on page 20. Blue back When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when any input source is unplugged or turned off. Display This function decides whether to display On-Screen Displays. - Page 37 When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet. Note ; Be sure to turn projector off properly (refer to the section “TURNING OFF PROJECTOR” on P19). If projector is turned off in the wrong steps, On Start function does not operate properly.
-
Page 38: Appendix
APPENDIX When the life of the Projection Lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly. Allow a projector to cool, for at least 45 minutes before you open Lamp Cover. -
Page 39: Lamp Replace Counter
Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. -
Page 40: Operating Wireless Mouse
OPERATING WIRELESS MOUSE Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal Computers. POINT button, drag ON/OFF button and two CLICK buttons are used for wireless mouse operation. -
Page 41: Maintenance
Wait at least 5 minutes before turning on projector again. When WARNING TEMP. Indicator continues to flash, check the items listed below. Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots are not obstructed. -
Page 42: Troubleshooting
(When you reconnect a projector, be sure to turn the computer and monitor off before you power up the projector. Power the equipment back on in order of : Projector and computer.) - Page 43 If the problem still persists after following all operating instructions, contact the sales dealer where you purchased the projector or the service center. Give the model number and explain the difficulty. We will advise you how to obtain service. This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc.
-
Page 44: Technical Specifications
APPENDIX TECHNICAL SPECIFICATIONS Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Panel Resolution Number of Pixels Color System High Definition TV Signal Scanning Frequency Projection Image size (Diagonal) Horizontal Resolution Projection Lens Throw Distance Projection Lamp... -
Page 45: Configurations Of Terminals
CONFIGURATIONS OF TERMINALS COMPUTER INPUT-1 and MONITOR OUT TERMINALS (ANALOG) Terminal : HDB15-PIN Pin Configuration COMPUTER INPUT-2 TERMINAL (DIGITAL/ANALOG) Terminal : DVI-I 29-PIN Pin Configuration C1 C2 CONTROL PORT CONNECTOR Terminal : Mini DIN 8-PIN Pin Configuration 8 7 6 USB CONNECTOR (Series B) Pin Configuration Red Input... -
Page 46: Optional Parts
The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer. G Control Cable (PS2 Port) G Control Cable (ADB Port) G MAC Adapter G HDB 15 pin-SCART 21 pin Cable G Media Card Imager Kit G Wireless Imager Kit G PJ-Net Organizer... - Page 48 Printed in Japan Part No. 610 305 8269 (1AA6P1P3934-- MC3AB) SANYO Electric Co., Ltd...
