Product Introduction

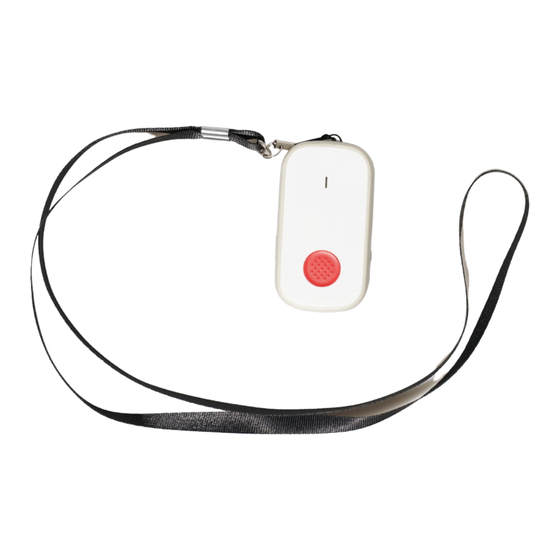

LW004-CT is a LoRaWAN-Based network IoT button specifically designed for contact
tracing purposes. It is compact, small in size and easy to use. It can be used to track
close contact and social safety distance reminder. With a panic button can be used
for SOS function or user-defined the panic event.
All of the close contact information will be obtained by scanning the incoming data
from nearby BLE beacons or LW004-CT. And it will send these data to the nearest
LoRaWAN gateway. The LoRaWAN gateway then transmits this data over to the
cloud server. Once this data reaches the cloud, it is accessible to all over the world
24/7.
Type
LoRa Protocol
LoRa Frequency
Sensitivity
LoRa Communication Distance >=5000 @ open area
BLE Communication Distance >=50m @ open area
MCU
LoRa Chipset
Power Supply
Operating Current
Charging Port
Charging Time
Operating Temperature
IP Rating
Related Bluetooth chip introduction:
The nRF52 Series 2.4 GHz RF transceiver is designed and optimized to operate in the
worldwide ISM frequency band at 2.402 to 2.48 GHz. Radio modulation modes and
configurable packet structure enable interoperability with Bluetooth® low energy
(BLE), ANT™, Enhanced ShockBurst™, and other 2.4 GHz protocol implementations.
The transceiver receives and transmits data directly to and from system memory for
flexible and efficient packet data management. The nRF52832 Series transceiver has
the following features:
LW004-CT
LoRaWAN Node
915MHz
-140dBm
@SF12
300bps
Nordic NRF52832
SX1262
500mA rechargable battery
< 120mA
Type C
2.5 hours@5V/1A
Charing: 0~45℃, Discharge:-10~60℃
IP65
Parameter
Advertisement
Table of Contents
Summary of Contents for MOKO LW004-CT
- Page 1 All of the close contact information will be obtained by scanning the incoming data from nearby BLE beacons or LW004-CT. And it will send these data to the nearest LoRaWAN gateway. The LoRaWAN gateway then transmits this data over to the cloud server.
- Page 2 LW004-CT • General modulation features • GFSK modulation • Data whitening • On-air data rates • 250 kbps • 1 Mbps By using the reference signal (32MHz) currently used by the external clock input, stable RF signal and the table baseband clock are generated.
- Page 3 The equipment complies with FCC Radiation exposure limits set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body. For more information,please refer to the following website. https://www.semtech.com/products/wireless-rf/lora-transceivers/sx1262 MOKO TECHNOLOGY LIMITED...
