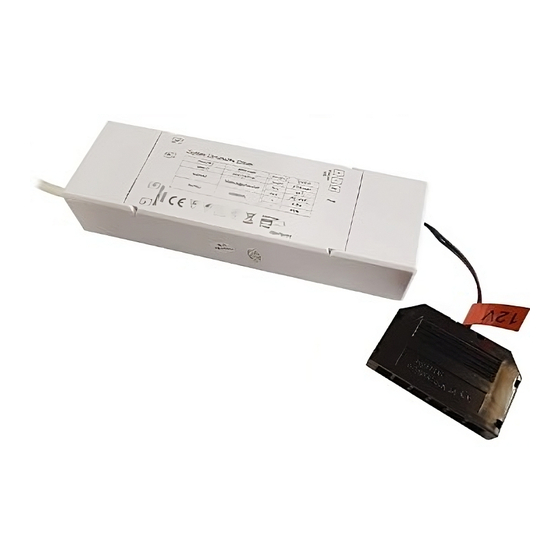

Product Name: SMART DRIVER 30W 12V LED Smart Driver
With 6-Port Micro Plug Connector
Product Code: K10-1230Z
Kit Contents
Smart LED Driver with 6-port micro plug connector
▪
Important Safety Information
DISCLAIMER: PLEASE NOTE LED DRIVER INSTALLATION SHOULD BE CARRIED OUT
BY A QUALIFIED ELECTRICIAN!
Do not install with power applied to device
Do not expose the device to moisture
Installation
1
1 metre power lead needs to be wired
to a 240V power supply
2
Plug in LED light power
lead to connector block
Advertisement
Table of Contents
Summary of Contents for TLW VEW K10-1230Z
- Page 1 Product Name: SMART DRIVER 30W 12V LED Smart Driver With 6-Port Micro Plug Connector Product Code: K10-1230Z Kit Contents Smart LED Driver with 6-port micro plug connector ▪ Important Safety Information DISCLAIMER: PLEASE NOTE LED DRIVER INSTALLATION SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN! Do not install with power applied to device Do not expose the device to moisture...
- Page 2 Product Name: SMART DRIVER 30W 12V LED Smart Driver With 6-Port Micro Plug Connector Product Code: K10-1230Z Installation Factory Reset Manually Short press “Prog.” key 5 times continuously or re-power on the device 5 times continuously (if “Prog.” key is not accessible Connected light will blink 3 times to indicate successful reset...
- Page 3 Product Name: SMART DRIVER 30W 12V LED Smart Driver With 6-Port Micro Plug Connector Product Code: K10-1230Z Other Information Specifications: DC voltage: 12V Max current: Max 1.25A Rated power: Max 30W Voltage range: 200-240V AC Frequency range: 50/60Hz Power factor: >0.9 @ 230VAC Total harmonic distortion: THD ≤15% (@full load/230V AC) Efficiency: 89% @230V AC full load AC current: 0.17A @230V AC...
