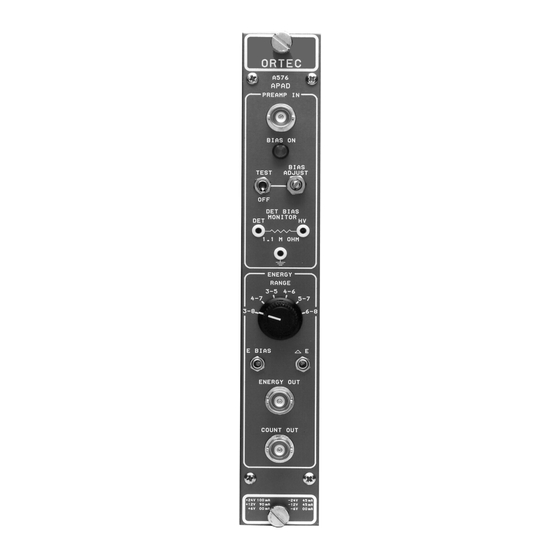

- Page 1 Model A-576 A-PAD Preamplifier, Amplifier, Discriminator with Bias Supply Operating and Service Manual Printed in U.S.A. ORTEC Part No. 761930 0202 Manual Revision D...
- Page 2 Copyright © 2002, Advanced Measurement Technology, Inc. All rights reserved. ® *ORTEC is a registered trademark of Advanced Measurement Technology, Inc. All other trademarks used herein are the property of their respective owners.
-
Page 3: Table Of Contents
CONTENTS WARRANTY ................ii PHOTOGRAPH . -
Page 5: Description
ORTEC MODEL A-576 A-PAD Preamplifier, Amplifier, Discriminator with Bias Supply 1. DESCRIPTION The ORTEC Model A-576 A-PAD is a single- wide The energy ranges controllable from the front panel NIM module intended for performing alpha are 3 to 8 MeV, 4 to 7 MeV, 3 to 5 MeV, 4 to 6 MeV, 5 spectroscopy and counting when used in conjunction to 7 MeV, and 6 to 8 MeV. -
Page 6: Specifications
2. SPECIFICATIONS 2.1. PERFORMANCE ENERGY RANGE Six positions on the front-panel switch for selecting the desired energy range (see DETECTOR AND ELECTRONIC NOISE <25 keV PERFORMANCE). FWHM when used with ORTEC R Series, 300 mm and 450 mm charged-particle detectors, and <35 keV E BIAS 15-turn potentiometer on the front panel for 600 mm and 900 mm R Series charged-particle permits screwdriver adjustment of the energy output... -
Page 7: Electrical And Mechanical
COUNT Front-panel BNC connector provides a NIM- 2.5. ELECTRICAL AND MECHANICAL standard positive pulse for gross alpha counting or POWER REQUIRED +12 V, 90 mA; -12 V, 45 mA; routing. Pulse width 3.5 µs for any event with energy >2.5 MeV. Z = 50 ;... -
Page 8: Connection To Detector
TEST PULSE The sixth jumper is used to set the 3.4. OUTPUT CONNECTIONS equivalent energy of the test pulser to 5, 6, or 7 MeV. Change this jumper only if an energy other than 5 MeV When an external BNC cable longer than 10 ft is used is desired from the test pulser. -
Page 9: Operation
4. OPERATION 4.1. GENERAL between 0 and 100 V. The bias voltage can be monitored on the front-panel test point jacks with a The information in Section 3 includes all of the voltmeter. After turning ON, or adjusting, the bias preliminary selections that are to be made for the A- voltage, wait for the preamplifier to settle;... -
Page 10: Theory Of Operation
5. THEORY OF OPERATION The complete schematic for the A-576 A-PAD (No. amplitude for 5, 6, and 7 MeV to the input to the 752500) is included at the back of this manual. preamplifier. A screwdriver calibration, included on the Fig. -
Page 11: Fig. 5. Detailed Block Diagram Of The Model A-576 A-Pad
& & 6.7 on the 4 7 MeV range, or a factor of 4 on the 3 the detected input energy exceeds the selected bias MeV range. The output of the biased amplifier is a level. The full-scale output of 10 V can be adjusted positive pulse with an amplitude, in the range from 0.1 down to 7.75 V, using the front-panel screwdriver to 10 V, which is proportional to the amount by which...
