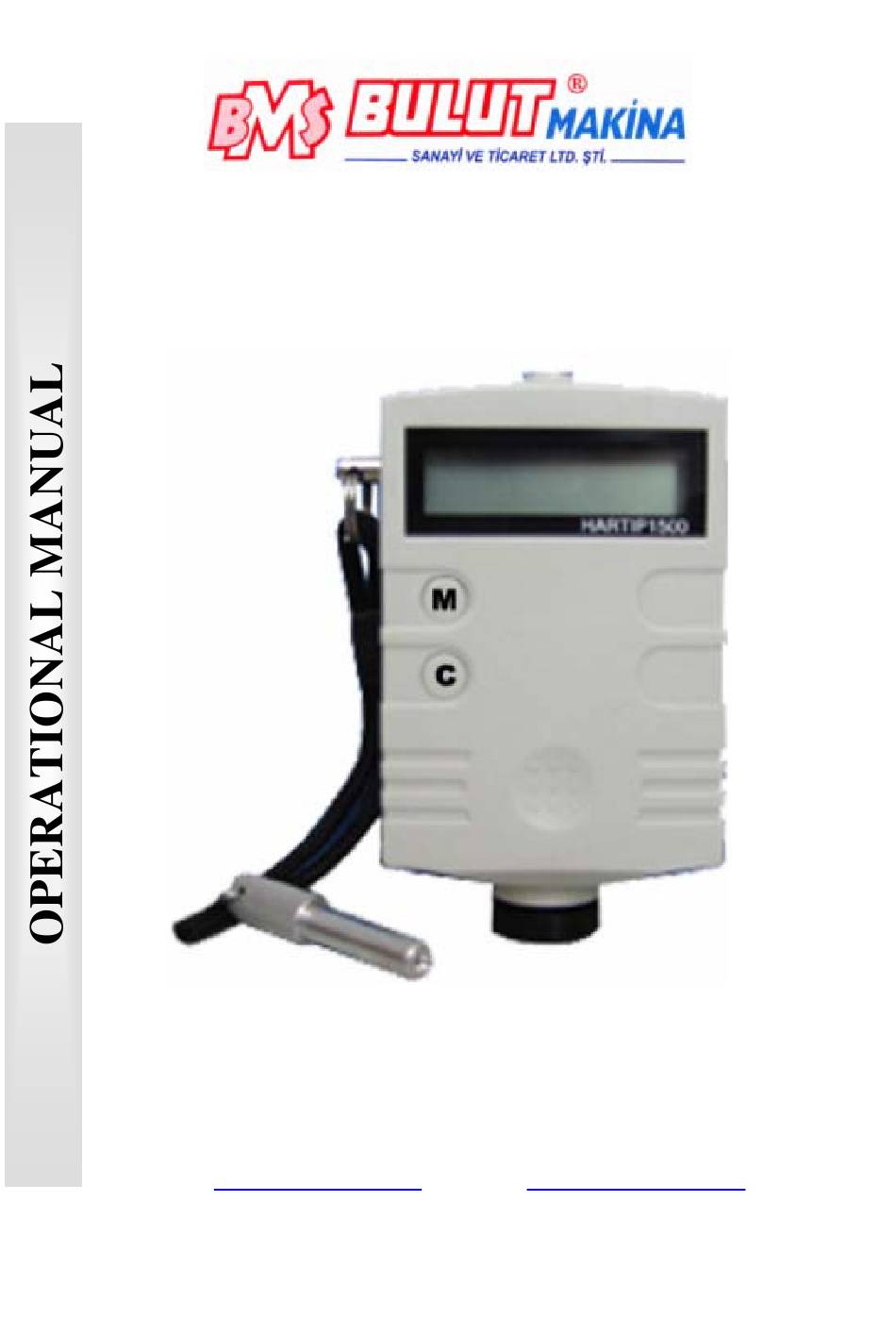

- Page 1 HARTIP-1500 PORTABLE HARDNESS TESTER Bms Bulut Makina Sanayi Ve Ticaret Ltd. Şti. İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi Ada 4 No : 7-9 İkitelli / İSTANBUL-TÜRKİYE Phone : +90 212 671 02 24 / 671 02 25 Fax : +90 212 671 02 26 web : www.bulutmak.com...
-
Page 2: Table Of Contents
7.2 Precise Calibration..................12 7.3 Default Setting..................12 8. Maintenance And Repair ................12 8.1 Mmaintenance Of The Impact Device............12 8.2 Charging Battery ..................12 8.3 Fault Diagnosis ..................13 9. Optional Accessories..................14 Operation HARTIP-1500 2 / 14 Rev:00 Manual... -
Page 3: Forewords
VA is the impact velocity of the impact body The voltage characteristic of output signal, when the impact body passes through the induction coil is illustrated in the following figure: Voltage characteristic of output signal Changed between the individual impacts. Operation HARTIP-1500 3 / 14 Rev:00 Manual... -
Page 4: Notation Of Leeb Hardness
Rapid testing of multiple measuring areas for examination of hardness variations over larger regions. Measuring hardness for produced parts at production line. Identifying metallic material stored in a warehouse. Ineffectiveness analysis of permanent parts, pressure-vessel, turbo generator. Operation HARTIP-1500 4 / 14 Rev:00 Manual... - Page 5 3. Designation Of Individual Parts RELEASE BUTTON CIHARGING INLET IMPACT DEVICE Key M Manu Calculate data (AVE, MAX, MIN) Increment when adjusting LOADING Diagram of calibration operation Operation HARTIP-1500 5 / 14 Rev:00 Manual...
-
Page 6: Symbols And Illustrations
STEEL 20.0- 59.6- 80-647 80-940 32.5-99.5 67.9 99.5 CWT.ST 20.5- 80-898 67.1 ST.STEEL 19.6- 46.5- 85-655 85-802 62.4 101.7 93-334 IRON NC.IRON 131- C.ALUM 30-159 BRASS 13.5- 40-173 95.3 BRONZE 60-290 COPPER 45-315 Operation HARTIP-1500 6 / 14 Rev:00 Manual... -
Page 7: Preparation Before Measuring
0.8 mm. 5.4 Surface Of The Test Sample Should Not Be Magnetic. 5.5 For test sample of curving surface with radius of curvature R less than 30mm, a small support ring should be used. Operation HARTIP-1500 7 / 14 Rev:00 Manual... -
Page 8: Supporting The Samples During Testing
Curved surfaces should always be tested with the small support ring. Impact device types D Rmin=30mm For impact devices D, special support rings are available to accommodate smaller radii on convex or concave surface. Operation HARTIP-1500 8 / 14 Rev:00 Manual... -
Page 9: Operation
6.1.2 After pressing key M for 3 seconds into item DIRE, press C in turn to change the impact direction. 6.1.3 After pressing key M into item MATE, press C in turn to change the materials setting. Operation HARTIP-1500 9 / 14 Rev:00 Manual... -
Page 10: Take Measurement
6.1.6 Press key M back to measuring mode, then LCD displays 0. Example for coupling a test piece with a base plate: Application of the coupling paste (As thin as possible). Measurement Take IMPACT DEVICE LOADING Operation HARTIP-1500 10 / 14 Rev:00 Manual... -
Page 11: View Statistic Value
At the same time, the LCD displays CAL at left. 7.1.5 Press and hold key M to confirm the calibration. Key C ·Change setting ·Delete unrealistic values ·Decrement when adjusting ·Read stored data Operation HARTIP-1500 11 / 14 Rev:00 Manual... -
Page 12: Precise Calibration
Insert the plug with battery charger into the socket on the right side of tester. Connect the battery charger with mains power to begin charging battery. It may take 12-15 hours to fully charge the battery. Operation HARTIP-1500 12 / 14 Rev:00 Manual... -
Page 13: Fault Diagnosis
8.3.4 L-values at the standard test block constantly too high-spherical test tip flattened (impact against tungsten carbide, wear)/standard test block damaged or full of indentations. 8.3.5 If the test value displays ERRO on LCD, it means you make an improper operation. Operation HARTIP-1500 13 / 14 Rev:00 Manual... -
Page 14: Optional Accessories
R 14.5mm-30mm R<10mm not possible R≥30mm D6/D6a HK 11-13 Φ 17×5mm hollow-spherical HK 12.5-17 Φ 18×5mm R 11mm-13mm HK 16.5-30 Φ 20×5mm R 12.5mm-17mm R 16.5mm-30mm R<11mm not possible R≥30mm D6a Φ 52×20×16mm Operation HARTIP-1500 14 / 14 Rev:00 Manual...
