7/30/2021
POCKETALK S
VOICE TRANSLATOR
Copyright (C) SOURCENEXT CORPORATION All Rights Reserved.
https://www.pocketalk.com/pocketalk-s-manual/#!/print?modal
POCKETALK S User Manual
User Manual
Version: 1.0
Date: March 2020
7/30/2021

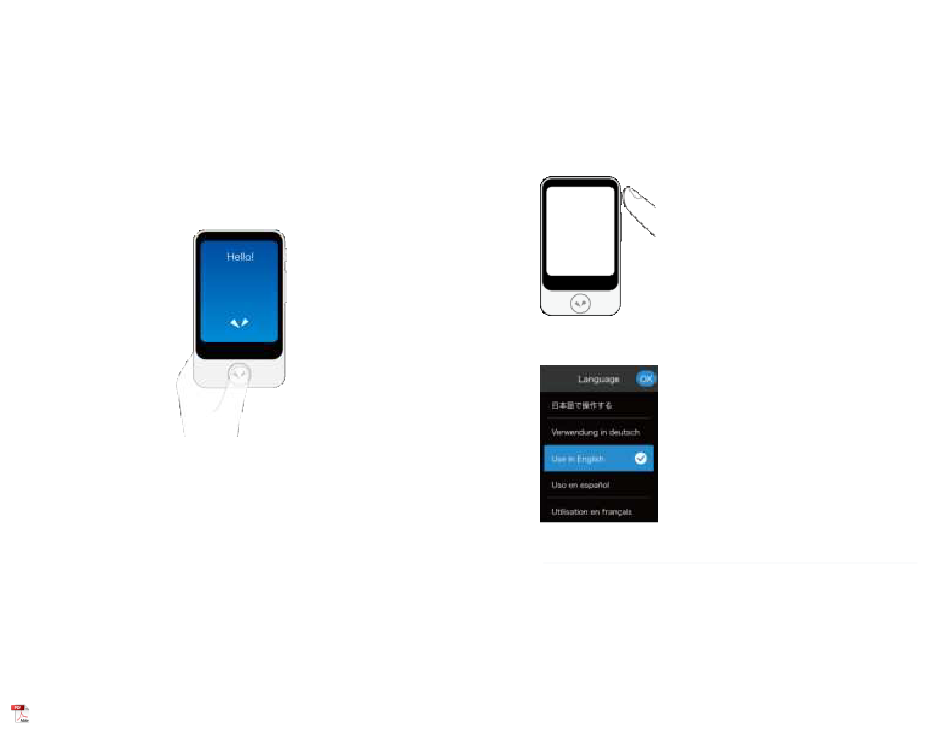

Initial Setup
Initial setup is required when you turn on the unit for the first time.
Turn the Power On
1
Hold down the power button placed on the right side of the device.
Select display language
2
Select the language the device settings and explanations will be displayed in. Tap [OK].
NOTE
This is the language your settings and device explanations will be displayed in.
3
Agree to the EULA
Please read the end-user license agreement (EULA).
To agree, check and tap [Agree].
1/45
https://www.pocketalk.com/pocketalk-s-manual/#!/print?modal
POCKETALK S User Manual
2/45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POCKETALK S and is the answer not in the manual?

Questions and answers

Related Manuals for sourcenext POCKETALK S

Summary of Contents for sourcenext POCKETALK S

  • Page 1 Select the language the device settings and explanations will be displayed in. Tap [OK]. Version: 1.0 Date: March 2020 Copyright (C) SOURCENEXT CORPORATION All Rights Reserved. NOTE This is the language your settings and device explanations will be displayed in.

  • Page 2: Getting Started

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Verify Your Age And you’re done! It will display an age verification dialog. When you are finished with the initial setup, refer to the operating section of this guide and start translating! Tap [Yes] or [No] based on the message on the screen.

  • Page 3: Parts Description

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Startup Guide Power button Safety Precautions & FCC Statement Volume button Parts Description Camera Flash Strap holder loop USB charging port Charging Charge using the included USB wall charger and USB cable.

  • Page 4: Basic Operations

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual To turn off the unit, press and hold the power button again, and tap [Power off]. To restart the unit, tap [Restart]. Swipe Basic Operations Dragging your fingertip on the screen in one direction is called a “swipe”.
  • Page 5 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Check the translation result. Your spoken words and the translation result will be displayed on the screen as text, and the translation result will be played back as speech. Some languages are only displayed as text, without speech playback.
  • Page 6 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual the arrow). Scroll through the list of languages, select the language you want to use, and tap < at the upper left. You can change the direction of translation by tapping You can easily search for the language you want with the following methods.

  • Page 7: Basic Screens

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual You can scroll up on this screen to view past translations. Pocketalk stores up to 10,000 translations. Main Menu Displays the translation history when swiped downward. Saving translations to Favorites Reviewing the translation history Swipe the translation bubble you want to save to the right.
  • Page 8 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Allows configuration of various settings such as network settings, volume, Settings screen brightness, and text size. Settings for the unit Translating text (image translation) You can easily translate text such as city signs and restaurant menus.
  • Page 9 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Specify the area to translate. Check the translation result. Touch one of the four corners of the frame with your finger and move it to adjust the size of the frame.
  • Page 10 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Reviewing the image translation history Using the Convert Units feature To review previous image translations, tap the thumbnail at the top right corner of the camera screen. The history will This feature allows you to convert units such as currency, weight, length and temperature.
  • Page 11 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Select the currency to convert. Tap [Exchange▼] and select from the following four types. Exchange (Currency) Length Weight Temperature Using the Role Play feature This feature allows you to practice day-to-day conversations in various common settings.
  • Page 12 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Practice conversation. Favorites added from the translation history will be displayed here. A character will appear and talk to you. While pressing , reply to the character with an appropriate response.
  • Page 13 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual About [Menu] Swipe the phrase to the left to delete it from Favorites. Allows configuration of various settings such as network settings, volume, screen brightness, and text size. [Menu]. A list of various settings for the unit is displayed.

  • Page 14: Mobile Network Settings

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Software Update Keep the unit up-to-date with the latest version. Updating the software of the unit Shortcut Place frequently used features on the Home screen. Creating shortcut to frequently used features on the Home screen Screen lock Toggle the lock screen on/off.

  • Page 15: Pairing With A Bluetooth Device

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Turning Wi-Fi communication on/off Turning Bluetooth on/off Tap the slide switch to switch between [ON] and [OFF]. Tap the toggle to switch between [ON] and [OFF]. Connecting to a Wi-Fi network Pairing with a Bluetooth device Tap the Wi-Fi network you want to connect to and input the password.

  • Page 16: Changing The Display Brightness

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Slide to the right to increase the volume, or slide to the left to decrease it. Changing the size of the text displayed on the unit You can also adjust the volume with the volume button on the right side of the unit.

  • Page 17: Using The Lock Screen

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual If there is a new software update available, you can download this by selecting [Update]. [Menu] - [Lock Screen Settings]. To receive notifications about software updates Turning the lock feature on/off You can set up the device to notify you when a new software version is released.
  • Page 18 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Select from the list of languages the language the device will be displayed in, and tap [OK]. Setting device sleep time Setting Region of Use (for China) The display turns off and saves battery power when the unit is not used for the amount of time set.

  • Page 19: Inserting A Sim

    For global communication models, the SIM is built into the unit and the card slot is empty. The unit supports nano SIM cards. SIM cards other than those specified by Sourcenext are not supported. To pop open the SIM tray, insert a paper clip or a SIM-eject tool into the hole of the tray.

  • Page 20: Specifications

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Issue Solution Display 2.8 inches (touch panel) The unit does not Leave it charging for 15 minutes minimum as it may take time to start charging Camera Main camera 8 megapixels charge.

  • Page 21: Safety Precautions

    7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual minor injury. Output: Voltage 5V, Current: 1A This indicates a description that, if not followed and not properly handled, may result in Contact us product failure, material damage, or loss of data.
  • Page 22 7/30/2021 POCKETALK S User Manual 7/30/2021 POCKETALK S User Manual Use the included USB cable and charge using the specified procedure. Charging with an unspecified procedure may cause battery leakage, heating, or rupture. Also, when charging overseas, use a USB charger that is compatible overseas.

  • Page 23: Radio Wave Exposure And Specific Absorption Rate (Sar) Information

    7/30/2021 POCKETALK S User Manual Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
