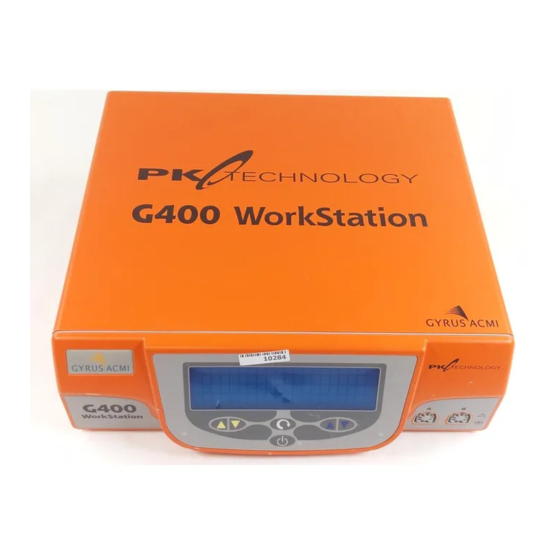

Gyrus Acmi G400 Service Manual

Electrosurgical generator
Hide thumbs Also See for G400:
Table of Contents

Advertisement

Quick Links

TITLE:
PART NO. /ISSUE:
PAPER:
TEXT:
TOTAL PAGES:
APPROVALS:
CO:
ISSUE:
AMENDMENT:
107362
AA
First Release This manual supersedes CD877110
M MATTHEWS
GYRUS MEDICAL LIMITED
Gyrus G400 Workstation
SERVICE MANUAL
177079-AA
2
GRADE:
90g/m
SIZE:
A4
COLOUR:
WHITE
COLOUR:
BLACK
4 HOLES DRILLED (LEFT HAND SIDE)
29 DOUBLE SIDED PAGES
Fortran Road
St. Mellons
Cardiff CF3 0LT
UK
Tel: (029) 2077 6300
Fax: (029) 2077 6301
PREPARED:
DATE:
M MATTHEWS
12-MAY-2009
Page 1 of 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G400 and is the answer not in the manual?

Questions and answers

daniel armendáriz
April 19, 2025

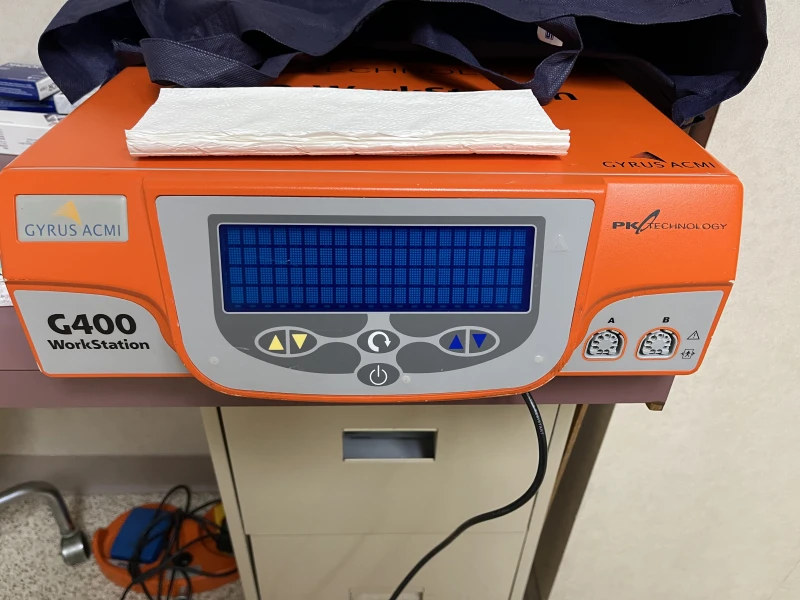

cuál es el cable que va del generador al equipo de resección transuretral

User image 68040e7147fc7
0
1 comments:
Mr. Anderson
May 10, 2025

The cable that connects the Gyrus Acmi G400 generator to the transurethral resection equipment is the Biomed Test Cable.

This answer is automatically generated

0
Limber
May 28, 2025

Buen dia cual es la "contraseña" del Gyrus Medical Pk super pulse. Pk/Sp Necesito poder cambiar el Lenguaje/idioma

0

Related Manuals for Gyrus Acmi G400

Summary of Contents for Gyrus Acmi G400

  • Page 1 GYRUS MEDICAL LIMITED Fortran Road St. Mellons Cardiff CF3 0LT Tel: (029) 2077 6300 Fax: (029) 2077 6301 TITLE: Gyrus G400 Workstation SERVICE MANUAL PART NO. /ISSUE: 177079-AA PAPER: GRADE: 90g/m SIZE: COLOUR: WHITE TEXT: COLOUR: BLACK 4 HOLES DRILLED (LEFT HAND SIDE)
  • Page 2 0344 Website: www.gyrusacmi.com Federal law (USA) restricts the G400 for sale by, or on the order of, a physician or hospital. The contents of this document are copyright and should not be copied or used without the written permission of Gyrus ACMI.

  • Page 3: Table Of Contents

    Section V ........................11 SERVICE PROCEDURES..................11 Periodic Service ......................11 PKRF output & RF leakage checks general preamble ...........11 Quick start brief G400 output check (option 1)..............13 Detailed G400 output check (option 2) ................15 Video input output checks ....................16 Mains electrical safety checks ..................17 Section VI ........................18...

  • Page 4: Section Ii

    BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Section II CONTACT LIST Customer/Technical Service USA: Customer Service Europe Gyrus Medical Inc. OLYMPUS MEDICAL SYSTEMS 6655 Wedgwood Road EUROPA GMBH Suite 160 Wendenstrasse 14-18 Maple Grove D-20097 Hamburg MN 55311-3602...

  • Page 5: Section Iii

    Intention This document must be used in conjunction with the G400 Operating Manual, which is shipped with all new G400 generators. It is assumed that all service personnel are familiar with and understand the contents of the operator manual. If required replacements can be ordered from GML (part number 277012).

  • Page 6: Legal Notices And Copyright

    Gyrus ACMI’s warranty is void once the lid seal is broken unless permission is granted in advance to allow the breaking of the seal. All liability, howsoever...

  • Page 7: Use Of This Document

    BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Use of this document Performing basic output and safety tests, first line diagnosis may be attempted following a reported failure of the equipment during normal use. It is strongly recommended that any testing effort uses the tests outlined in the succeeding section.

  • Page 8: Diagnostic Test Equipment

    3. Biomed test cable PN: BTK-G400. Where applicable the equipment must have a recognised calibration certificate. *The G400 has RF output modalities that are very difficult for most electro- surgical analysers to measure. The Gyrus ACMI’s technical authority has stated that testing the continuous wave and blended output modalities of the generator are sufficient to confirm full equipment functionality.

  • Page 9: Section Iv

    The reader is referred to the operator manual. Generator Internal description The G400 generator casework is comprised of the front fascia, rear panel, top and bottom panels, side extrusions and isolation board. The isolation board carries most of the Printed Circuit Boards (PCBs): Power Supply Unit (PSU), Plasmakinetic (PKRF) and the Auxiliary PCB.
  • Page 10 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Note: Casework colour scheme may vary. The figure below illustrates the interaction of the PCBs and some other sub assemblies. Gyrus ACMI G400 Workstation BIOMED SERVICE MANUAL Page 9 of 57...
  • Page 11 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ** The communication port on the rear panel is for use by Gyrus ACMI personnel only or appointed representatives working under the auspices of Gyrus ACMI. Gyrus ACMI G400 Workstation BIOMED SERVICE MANUAL...

  • Page 12: Section V

    PKRF output & RF leakage checks general preamble Whilst in standby mode, the generator constantly monitors the A and B RF sockets to detect valid electrodes. The G400 generator has a number of operating modes that have defaults depending on the value of capacitors embedded in the applied electrodes.
  • Page 13 Deployment of a Biomed Test Cable for the purpose of testing the RF output power of Gyrus ACMI G400 generators shall not cause Gyrus ACMI or any approved supplier, to be liable...

  • Page 14: Quick Start Brief G400 Output Check (Option 1)

    RF burns that also facilitates easy connection to the loads in the output test equipment. 4. When the test cable is plugged-into the front of the G400, the display will read: “BioMed Non-Human-Use” PK3 – 200 (watts), DES – 120 (watts). There is an automatic timeout for the non human use Biomed Test Band.
  • Page 15 While depressing the yellow footpedal, the output should measure between 179-216 watts. 10. If any questions or the generator does not meet the identified output specification(s), call Gyrus ACMI Technical Services detailed on the contacts page. Test Mode Load Impedance Ohms Limits (Watts)

  • Page 16: Detailed G400 Output Check (Option 2)

    RF burns that also facilitates easy connection to the loads in the output test equipment. 4. When the test cable is plugged-into the front of the G400, the display will read: “BioMed Non-Human-Use” PK3 – 200 (watts), DES – 120 (watts). There is an automatic timeout for the non human use Biomed Test Band.

  • Page 17: Video Input Output Checks

    BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 7. If any questions or the generator does not meet the identified output specification(s), call Gyrus ACMI Technical Services detailed on the contacts page. Video input output checks This generator may be configured to superimpose information on to a Colour Video Blanking &...

  • Page 18: Mains Electrical Safety Checks

    Perform the electrical safety tests detailed in section VIII and outlined in IEC60601-1-1. Use a calibrated and approved safety tester designed for this purpose. The test limits for the G400 generator are appropriate to Class1 type BF. Use the Biomed Test Cable PN:BTK-G400 red, black and white wires to access the patient applied parts of the generator.

  • Page 19: Section Vi

    G400 Workstation display window and an associated indication on the video on screen display (OSD). Fault Type Three basic levels of fault reporting exist within the G400 Workstation, soft, recoverable and fatal. SOFT [SOFT] Soft describes events bringing the attention of the user to an attempt to use the G400 Workstation outside the specification.
  • Page 20 If the self-test fails, then all functions will be inhibited and no attempt should be made to use the G400 Workstation. Contact the appropriate address located on the front of the manual for assistance. **To report an accessory failure, contact the appropriate address located on the front of the manual for assistance.
  • Page 21 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ERROR VFD TEXT OSD TEXT TYPE DESCRIPTION ACTION CODE STRING STRING INTERNAL !!!! Background loop Internal Fault. Return ERROR INTERNAL timing for repair if error FAULT !!!! persists INTERNAL !!!! Status_event_q Internal Fault.
  • Page 22 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ERROR VFD TEXT OSD TEXT TYPE DESCRIPTION ACTION CODE STRING STRING SYSTEM !!!! PlasmaBlend Internal Fault. Return RESET INTERNAL Transformer for repair if error FAULT !!!! feedback failure persists INTERNAL !!!!
  • Page 23 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ERROR VFD TEXT OSD TEXT TYPE DESCRIPTION ACTION CODE STRING STRING INTERNAL !!!! PEAK_SET failure Internal Fault. Return FAILURE INTERNAL [POST check] for repair if error FAULT !!!! persists INTERNAL !!!! COAG_CUT failure Internal Fault.
  • Page 24 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ERROR VFD TEXT OSD TEXT TYPE DESCRIPTION ACTION CODE STRING STRING INTERNAL !!!! PK-RF Thermistor Internal Fault. Return FAILURE INTERNAL failure [POST check] for repair if error FAULT !!!! persists INTERNAL...
  • Page 25 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ERROR VFD TEXT OSD TEXT TYPE DESCRIPTION ACTION CODE STRING STRING Reserved <Instrument <Instrument [AR] Accessory error : Check IFU for correct Dependant> Dependant> excessive RF output operation. Return for i.e. regrasp i.e.
  • Page 26 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 ERROR VFD TEXT OSD TEXT TYPE DESCRIPTION ACTION CODE STRING STRING BUTTON BUTTON Front panel : Blue Don’t depress buttons STUCK STUCK! UP button stuck during power up. Return for repair if...

  • Page 27: Generator Disassembly

    FAULT !!!! persists GENERATOR DISASSEMBLY The G400 generator has a Gyrus ACMI warranty seal that when broken, will invalidate the warranty of the generator. There are no customer serviceable components inside the generator case. The generator casework is assembled with security screws that require special tooling that is unavailable to third parties.

  • Page 28: Section Vii

    BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Section VII Decontamination of returned product Neither the generator nor footswitch may be sterilised. To decontaminate the generator or footswitch surfaces, use a mild antibacterial detergent on a damp cloth. Do not allow fluids to enter the generator or footswitch connectors. Do not use caustic, or abrasive cleaning materials.

  • Page 29: Section Viii

    BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Section VIII Generator service report G400 Generator Test Results Page 1 of 3 Model G400 Workstation Serial number Registered Manufacturer Gyrus ACMI Inc,136 Turnpike Road, Southborough, MA 1772- 2104, USA ECREP...
  • Page 30 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 G400 Generator Test Results Page 2 of 3 Parameter Limits(s) Measured 60601-1 60601-2-2 Value  Protective Earth Impedance (PE) 18(f) ---- 0.1 ohm (0.2 inc mains lead) PE test current 18(f)
  • Page 31 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 G400 Generator Test Results Page 3 0f 3 PBDES ---- 50.2 43 - 56 (Bk – Wh) PBDES ---- 50.2 30 – 56W (Bk – Wh) PBDES 1000 ---- 50.2 10 – 13W (Bk –...
  • Page 32 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Section IX Technical Reference Drawings V CC_DIG V CC_DIG GND_DIG GND_DIG P 02/A D02 P 03/A D03 P 04/A D04 GND_D IG W A T CHDOG P 90/T IN0/IN0 P 97/P OT...
  • Page 33 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 VCC_DIG VCC_DIG V CC_DIG TP36 VCC_DIG TP37 TP38 TP39 GND_DIG TP40 GND_DIG VCC_DIG TP41 SP I_SCLK DAC_A TP49 TP42 SP I_SOUT DAC_B GND_DIG TP43 DAC_C RESET DAC_D P06/AD06 P05/AD05 Vref TP47...
  • Page 34 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 TP66 Vref TP50 V CC_ANA AUDIO_IN VCC_A UD GND_ANA GND_A UD GND_ANA CON6 P50/AN0/SIN3 DC_VOL P51/AN1/SOT 3 P52/AN2/SCK3 ID_RESIST OR P54/AN4/SIN4 SP ARE_A DC P56/AN6/SCK4 P57/A N7 TP25 Vref TP24 GND_AUD...
  • Page 35 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 CON7 VS_REF VRE F_OUT Vref VCC_ANA DAC_B DAC_A DAC_C TP27 VCC_DIG VCC_A NA P73/DA00 TP18 TP28 P74/DA01 DAC_D GND_COMM P50/A N0/SIN3 CON2 P54/AN4/SIN4 OPT1 P55/AN5/SOT 4 AUDIO_IN P56/A N6/SCK 4 TP32...
  • Page 36 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 RF_IN+ CON2 CON1 1K 6 V 5V _IS O CURRLIM_SE T 2 50V 2 50V 1.6K V RF+_IN-IS O -5V _IS O RF_I RV 3 U3:A Fro m P SU B oard...
  • Page 37 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 12V _IS O R114 V RE F FROM PSU BOA RD 1 2V _IS O 5V _ IS O V RE F CON3 R113 5V _IS O CON5 5 V _FS...
  • Page 38 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 BOX1 CLIP1 IS0-PLA TE For D8 For D3 ????? GND_A NA 5V _IS O VFD_T X 5V _IS O 12V _IS O TO V FD 5V _IS O CON6 CON10 TP54...
  • Page 39 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 T P9 + 5V_IN T T P16 + 5V_IN T T P22 U16:C T P18 SKT 1_O CCUPIED T P10 T P14 T P12 U16:B + 5V_IN T T P19 T P20...
  • Page 40 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 F ENCE4 F ENCE5 F ENCE6 F ENCE7 F ENCE8 F ENCE9 F ENCE10 F ENCE11 F ENCE12 F ENCE14 F ENCE15 F ENCE28 F ENCE29 T P41 + 5V_IN T...
  • Page 41 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 + 5VPC_ A + 4.096VREF + 4.096VREF + 5V_IN T T P59 T P63 T P65 + V_O SET T P62 + 5VPC_D T P61 T P64 U13:G U8:C V_CO LD_J...
  • Page 42 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 CO N1 RL1:C RL1:D SKT 1_PIN4 RL1:F SKT 1_PIN9 RL1: E SKT 1_PIN5 SKT 1_PIN6 SKT 1_PIN7 RL2:C RL2:D PB/PK Output To Skt1 CO N8 CO N4 RL3:E PB C oag Input...
  • Page 43 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 TP171 TP167 5V_PK TP174 Os c _s hi ft_PK +V_PK TP160 0V_PK PK _SD P K_LD PK_CLK GNDPK_P RIM\SE C RL2:A TP166 SE LPK_P RIM\SEC SE LPK_CAL\ID TP156 TP119 TP154 0V_PK...
  • Page 44 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 +5V _int 5V _PK OPT8 +5 V_int +5V _int +12V Load_SK1 PK _LD CON1 +V _P K 5V _P C 0V _PK PCLK OPT1 OPT5 PC_LD Freq_Out_PK Load_ SK2 5V _PK...
  • Page 45 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 +3V 3 +3V 3 For Bracing +3 V3 +3V 3 FENCE14 TP80 TP76 U7:E TP48 U1:G FENCE13 U7:G U7:D TP99 FENCE12 32KHz 5MHz TP79 FENCE11 U1:A +3V3 TP97 TP98 Load_SK 2...
  • Page 46 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 TP120 SELP K_PRIM\SEC +V_PK GNDP K_PRIM\SEC TP118 TP161 TP159 +V_PK SELP K_CAL\ID TP117 5V_PK TP121 5V_PK TP158 5V_PK U12:D TP155 0V_PK 0V _PK PK ID S OCKET TP107 RL2:B +V_PK CON4...
  • Page 47 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 S E LP C_PRIM\SE C TP133 TP131 TP151 GNDP C_P RIM\SE C +V _P C TP130 S ELPC_CA L\ID TP129 +V _P C TP152 5V _P C TP124 5V _P C...
  • Page 48 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 D 17 AC_CUT T FR CUT _SENSE1 D 10 PB_RF1 D 14 CUT _SENSE2 R 11 R 12 OPT4 C ON9 C 10 D 15 C ON8 R 48 R 45...
  • Page 49 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 +5VT -L C 37 LINK1 LINK2 LINK3 LI NK4 TP19 0VT -L TP27 TP25 TP21 TP22 TP23 TP31 TP24 C 38 R 36 R 37 R 35 D 32 D 45...
  • Page 50 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 D 47 C 31 +12V R 21 +12V C ON12 CUT _SENSE1 +12V D 48 D 46 C 30 R 14 R L3:A R L1:A COAG_SENSE 1 R L2:A R L4:A...
  • Page 51 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 +5V NON-ISO MOV 1 200V - 370V HT CON1 GDT1 U2:A SCR1 "x" FK-130G FK-130G "x" "x" GDT2 OVERVOLT S 8A 800V SG27 T O U15 (PAGE 2) U2:B CON3 "Y"...
  • Page 52 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 200V - 370V HT T EST OVE RDOSE OPT2 +5V NON-ISO PS U 0V U10:A PSU DRIVE 50KHz P OW ER S IG F/BK T O U17 (PAGE 3) FROM T 4 (PAGE 3)
  • Page 53 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 30V HT FROM T 1 (P AGE 1) 0V HT CON5 FROM BR1 (PAGE 1) 200V - 370V HT 0.1% 250V 0.1% RF V OLT S FORM U12 (PA GE 2)
  • Page 54 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Gyrus Gyrus ACMI G400 Workstation SERVICE MANUAL Page 53 of 57 Part Number: 177079-AA...
  • Page 55 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Gyrus Gyrus ACMI G400 Workstation SERVICE MANUAL Page 54 of 57 Part Number: 177079-AA...
  • Page 56 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Gyrus ACMI G400 Workstation SERVICE MANUAL Page 55 of 57 Part Number: 177079-AA...
  • Page 57 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Gyrus ACMI G400 Workstation SERVICE MANUAL Page 56 of 57 Part Number: 177079-AA...
  • Page 58 BIOMED SERVICE MANUAL Electrosurgical Generator G400 Workstation Model 777000 Gyrus ACMI G400 Workstation SERVICE MANUAL Page 57 of 57 Part Number: 177079-AA...

This manual is also suitable for:

777000
