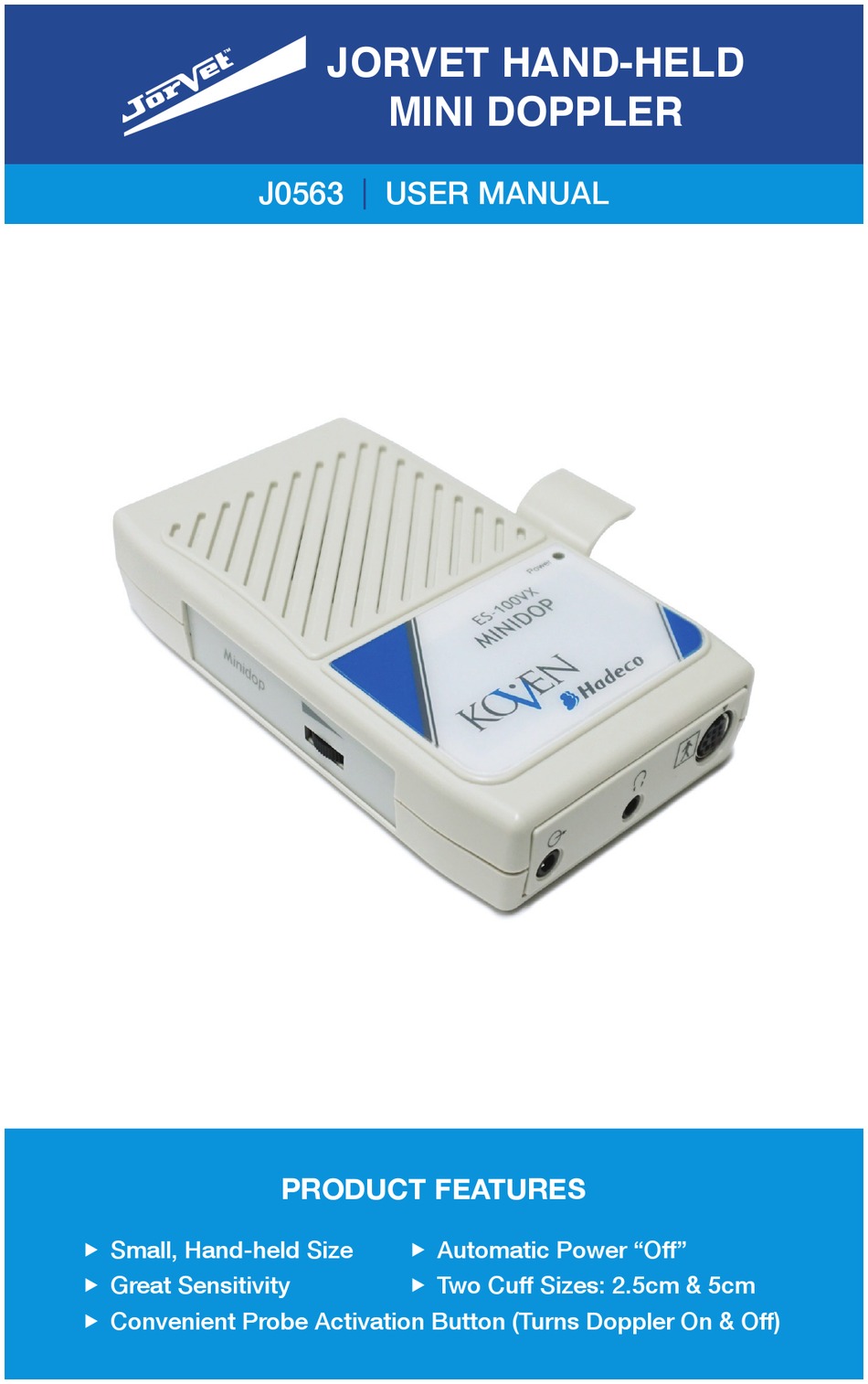

- Page 1 JORVET HAND-HELD MINI DOPPLER J0563 USER MANUAL PRODUCT FEATURES Small, Hand-held Size Automatic Power “Off” Great Sensitivity Two Cuff Sizes: 2.5cm & 5cm Convenient Probe Activation Button (Turns Doppler On & Off)
- Page 2 Thank you for choosing the JorVet Hand-held Doppler. We want you to get the most out of the MiniDop and to have your experience in using it proceed with ease. Detailed instructions are provided along with the product’s operating instructions on how to correctly use it and how to take full...
-
Page 3: Table Of Contents
CONTENTS MiniDop Controls Operating Instructions Directions for Use Cleaning Instructions Warranty Cautions Package Contents Specifications Principles of Doppler Flow... -
Page 4: Minidop Controls

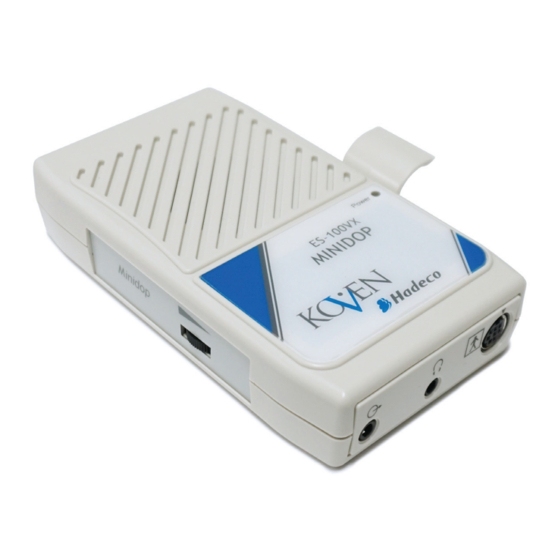

MINIDOP CONTROLS FRONT PROBE CONNECTION To connect the probe to the Doppler HEADSET To connect the headset VOLUME CONTROL To adjust volume control POWER INDICATOR Indicates power On/Off SPEAKER Outputs Doppler sounds... - Page 5 BACK PROBE HOLDER For probe handle placement when not in use STRAP HOLES To connect the carry strap BATTERY COVER Battery compartment for battery replacement FLAT PROBE 8 MHz – Vascular PROBE BUTTON Activates the ES-100VX (On probe handle)
-
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Open the battery cover. Set a 9V alkaline square type battery in the unit ensuring that the positive and negative electrodes correspond to the (+/-) marks on the battery box. See Figure A Figure A Connect the probe with the small dot up on the probe connector (12 o’clock). See Figure B See Figure C Depress the probe button to turn the unit ON. - Page 7 Put the ultrasonic gel on the probe top or on the patient’s skin. Put the probe on the measurement area and move it slowly to locate the point where maximum Doppler sounds are heard. The flat probe should be 90 degrees placed flat on the animal’s skin over vessel.
-
Page 8: Directions For Use
DIRECTIONS FOR USE Indirect Arterial Blood Pressure Monitoring with the Doppler Unit Clip the palmer aspect of the foot just proximal to the metacarpal pad. It is important to clip the fur as short as possible. Rub a small amount of ultrasound gel on the skin in the midline area where the palmer arterial arch is located. -
Page 9: Cleaning Instructions
Diastolic pressure can be detected by closely watching the dial of the manometer. If it oscillates reproducibly at certain times on the deflation cycle, this corresponds to within 10mm Hg of the diastolic pressure (by sound). For accuracy, when the diastolic sound cannot be heard, pressure is simply recorded as “systolic all the way down”. -
Page 10: Cautions
When battery is low, the power indicator becomes dark. Also there will be no speaker sounds. Figure G Replace the battery if these conditions exist (refer to on page 7). PACKAGE CONTENTS The JorVet Hand-held Doppler Package Includes the Following Items J0563D1 Flat Probe (Includes probe tip holder) J0563D2 Mini Doppler Detector Unit... -
Page 11: Specifications
(Includes battery & probe) PRINCIPLES OF DOPPLER FLOW The JorVet Doppler is designed to receive blood flow velocity information by ultrasound. A specific frequency is transmitted from the probe to the patient. Technically, the transceiver amplifies a high frequency oscillation output for transmission to the transducer. - Page 12 Professional Veterinary Equipment Supplier Jorgensen Laboratories, Inc. | Loveland, CO 80538 800.525.5614 | fax 970.663.5042 | www.jorvet.com | info@jorvet.com...
