Summary of Contents for TPI fostoria FSP-43

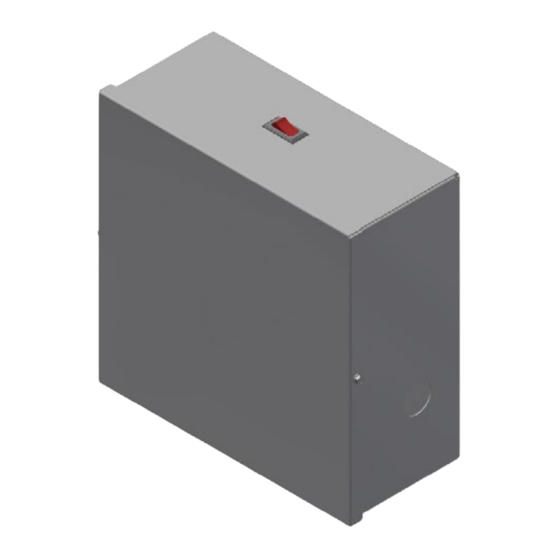

- Page 1 TPI Corporation P.O. BOX 4973 JOHNSON CITY, TN 37602 www.tpicorp.com TO-SK-1 Tip-Over Switch Kit For FSP-43 AND FSP-95 REFER TO COMPLETE INDEX OF INFORMATION ON PAGE 2 Form 9766 Rev.- ECO 1-7322 9/17...
- Page 2 INDEX General Description & Use Page 2 Specifications Page 2 Installation Page 3 Wire & Wire Specifications Page 4 and 5 ATTENTION: Signal Word Definitions The table to the right provides definitions of the signal words that DANGER: Indicates an imminently hazardous can be found throughout this situation which, if not avoided, will result in death or serious injury.
- Page 3 INSTALLATION To install the TO-SK-1 on the FSP-43 AND FSP-95 models: 1. Remove (2) screws and cover from bottom 4x4 field wiring box. Retain the screws. Loosen conduit from bottom 4x4 field wiring box. See illustration 1. 2. Attach TO-SK-1 to the terminal box by removing screws and lid from TO-SK-1 enclosure, then attaching the TO-SK-1 to the 4x4 field wiring box.
- Page 4 WIRING For field wiring and heater clearances, refer to the Installation Manual included with your heater. All wiring must be performed by a licensed electrician WHITE ROCKER SWITCH TIP-OVER SWITCH BLUE PRIMARY SIDE LEAD COLORS TIP-OVER 600V - GRAY SWITCH 480V - BLACK/RED TRANSFORMER 277V - BROWN...
- Page 5 FSP SERIES SUPPLY WIRE SPECIFICATIONS The following tables are provided to assist the installer in the sizing of electric cables and/or plug sizes needed for each FSP heater model. Cords and plugs will have to be obtained through a local supplier or purchased separately from Fostoria Industries.
