- Page 1 Vertical automatic stand STAV User Manual File: 2019-01-31 STAV GB...
-
Page 2: Table Of Contents
USER MANUAL _____________________________________________________________________________________________________________________ Index: Introduction............................3 Complete set ............................ 3 Technical data ..........................3 Stand’s keyboard ..........................4 Safety rules ............................5 Disposal rules ........................... 5 Preparing to work ..........................6 General operation rules ........................7 Communication interface ........................8 Dimensions ............................ -
Page 3: Introduction

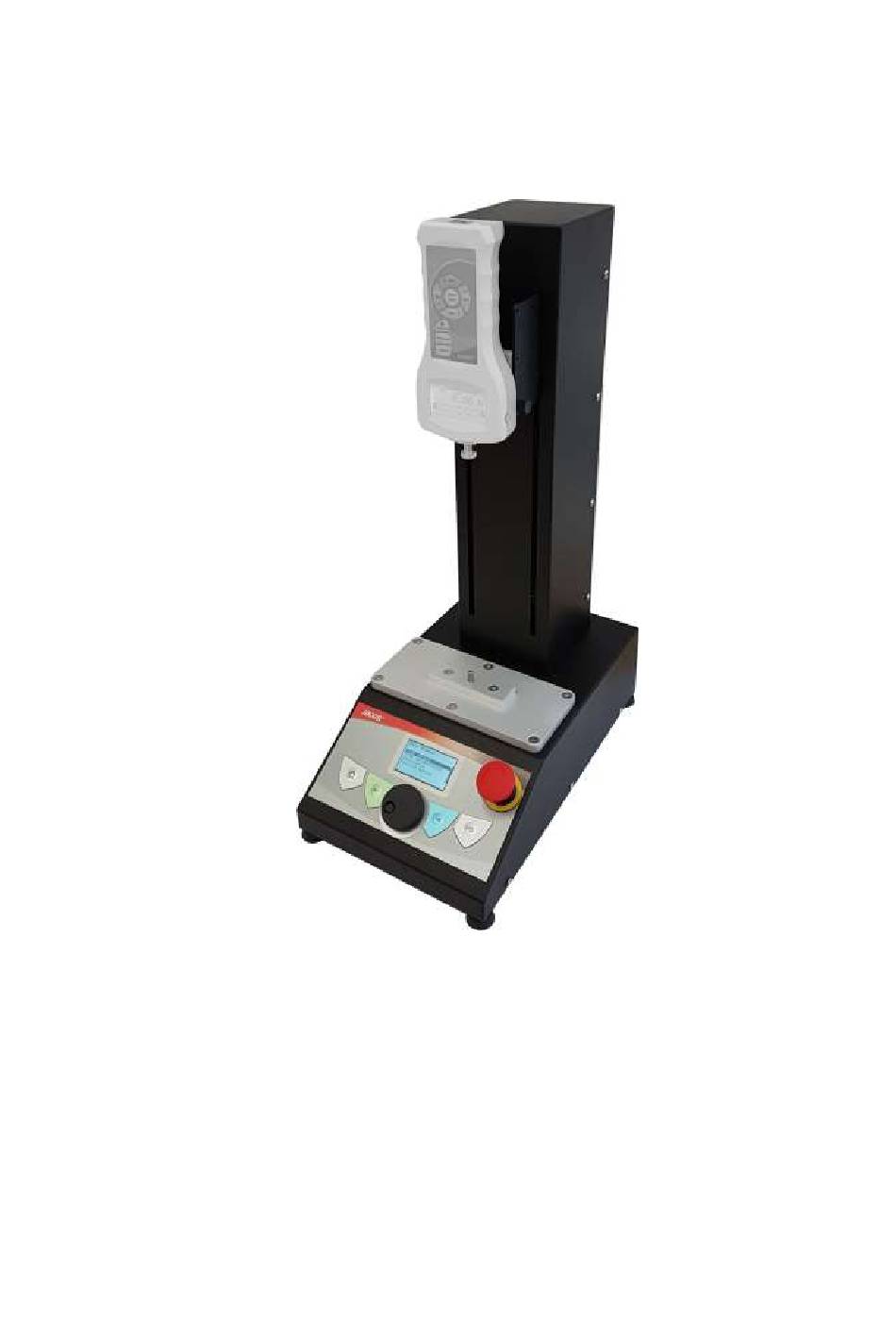

USER MANUAL _____________________________________________________________________________________________________________________ 1. Introduction STAV500 vertical test stand with electric drive is designed for FB50, FB200, FB500, FC50, FC200 and FC500 force gauges. Thanks to precise programming motion mechanism STAV500 enables to perform precise measurements during e.g. material resistance testing. 2. -
Page 4: Stand's Keyboard
USER MANUAL _____________________________________________________________________________________________________________________ 4. Stand’s keyboard Knob turn on / off the stand, start/stop movement, - opening applications (functions) menu, - back, - during inscribing data used for deleting or used for returning to previous position (inscribing PIN code), - opening main menu, - enter (choosing option), - during inscribing data adds another position or used for moving to next position (inscribing PIN code),... -
Page 5: Safety Rules
USER MANUAL _____________________________________________________________________________________________________________________ Safety rules It is necessary to follow the safety rules. Obeying this rules is crucial to avoid electrical shock, damaging the stand or other connected devices. Repairs and necessary regulations can be done by authorized personnel only ... -
Page 6: Preparing To Work
USER MANUAL _____________________________________________________________________________________________________________________ Preparing to work The stand must be used in room where the following requirements must be fulfilled: temperature must be between 0 to 40°C, air humidity 20% 80%. ÷ Stand must be set in room in such way as to allow easy access to safety button STOP ! Preparing device to work: 1. -
Page 7: General Operation Rules
USER MANUAL _____________________________________________________________________________________________________________________ General operation rules During work keep hands in safe distance from sample and moving parts! In case of any danger of losing health immediately press safety button STOP located on the device’s front! 1. Make every effort to put the sample safetly and stable before starting measurements. -
Page 8: Communication Interface
USER MANUAL _____________________________________________________________________________________________________________________ Communication interface The stand is equipped with interfaces: RS232C and USB. RS232C is used to connect the stand to force meter in order to receive actual force value from the force meter. Wireless communication is also possible if force meter is equipped with wireless module. -
Page 9: Dimensions
USER MANUAL _____________________________________________________________________________________________________________________ Dimensions... -
Page 10: Applications Menu
USER MANUAL _____________________________________________________________________________________________________________________ 11. Applications menu After pressing key applications/functions menu shows up: APPLICATIONS 1. Manual 2. Peak 3. Cycle 4. Step 5. Advanced The applications menu enable to select working mode that fits user’s needs. 11.1 Advanced mode Advanced mode is multifunctional mode. After selecting Advanced user can select from the list proper motion program. - Page 11 USER MANUAL _____________________________________________________________________________________________________________________ ADVANCED The picture on the left shows example of setting Step 1. STEP 1 Action: Move Down Speed: 75mm/min End: Travel Distance: 10.00mm SAVE SAVE&LOAD EXIT To configure each Step user can select from below options: Move Up – moving up the force meter Move Down –...
-
Page 12: Manual, Peak, Cycle And Step Mode
USER MANUAL _____________________________________________________________________________________________________________________ 11.2 Manual, Peak, Cycle and Step mode Manual mode enables to move the force meter by using the knob on the keyboard. Peak, Cycle and Step modes are simplified modes of Advanced mode. Peak – used when user wants to measure single peak force. Cycle –... -
Page 13: Force Gauge
USER MANUAL _____________________________________________________________________________________________________________________ 12.2 Force gauge If force gauge is equipped with wireless module then Force gauge option is used for connecting force gauge with stand. Select Search option to search for any force gauge nearby. 12.3 Applications APPLICATIONS Applications option is used for fitting stand options to user’s needs. -
Page 14: Communicates
Stand engine supply off Turn off STOP button. NO SUPPLY – security STOP buton If the button is off then contact pressed AXIS service. Change Fmax value or use other Stand loaded above sample which needs lower force. If OVERLOAD Fmax value still the stand is overloaded contact AXIS service. - Page 15 USER MANUAL _____________________________________________________________________________________________________________________ Declaration of Conformity The last two digits of the year in which the CE marking was affixed: 19 AXIS Spółka z o.o. 80-125 Gdańsk, ul.Kartuska 375B confirm with all responsibility that the stand STAV500 marked with comply with the following...
- Page 16 USER MANUAL _____________________________________________________________________________________________________________________ Notes...
