Summary of Contents for Linear Technology LC3.BP1011

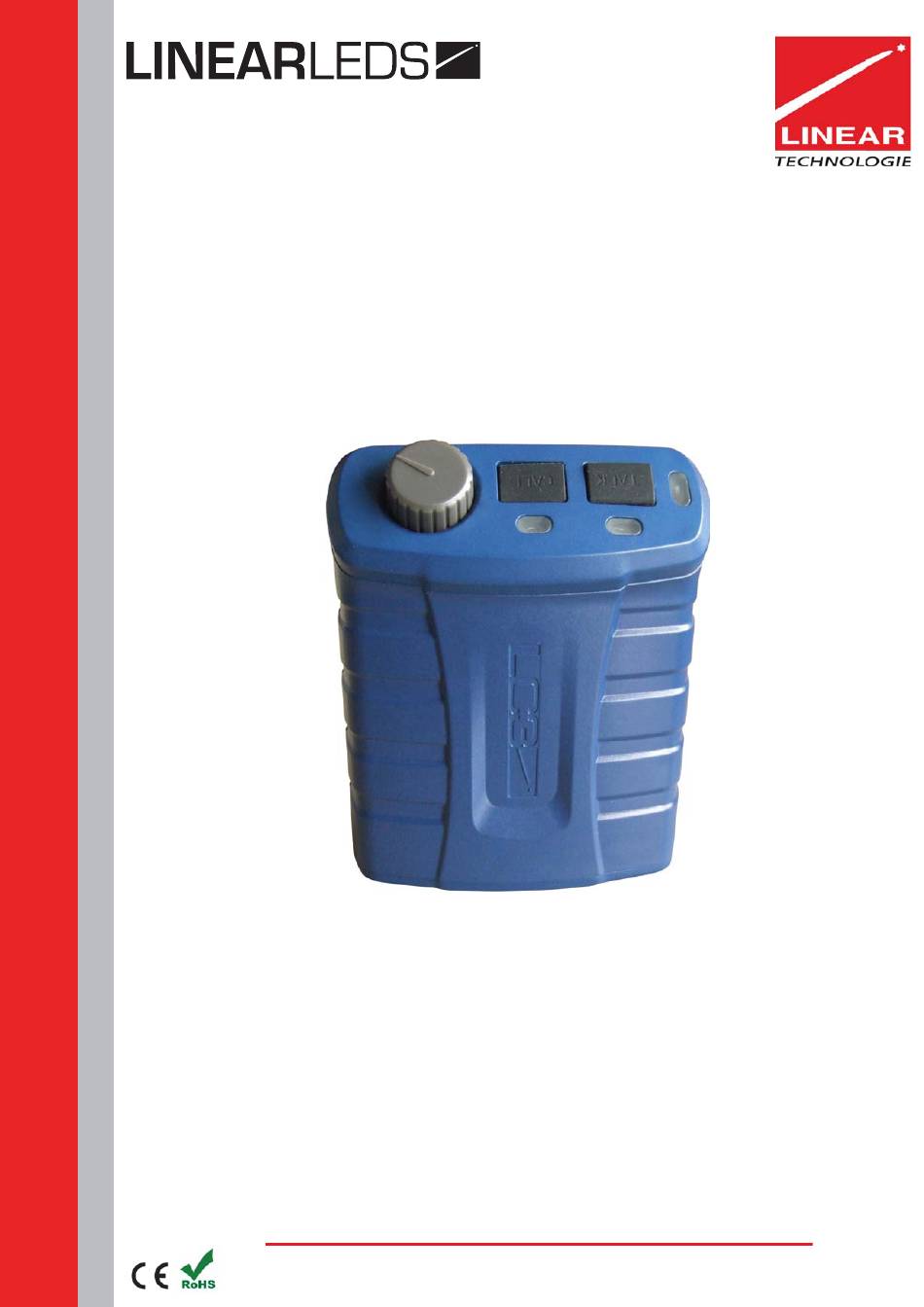

- Page 1 BELT INTERCOM SYSTEM LC3.BP1011 Operation manual Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
- Page 2 TABLE OF CONTENTS Page 3 1. Quick start Page 3 2. Basic operation Page 4 3. Specifi cations...

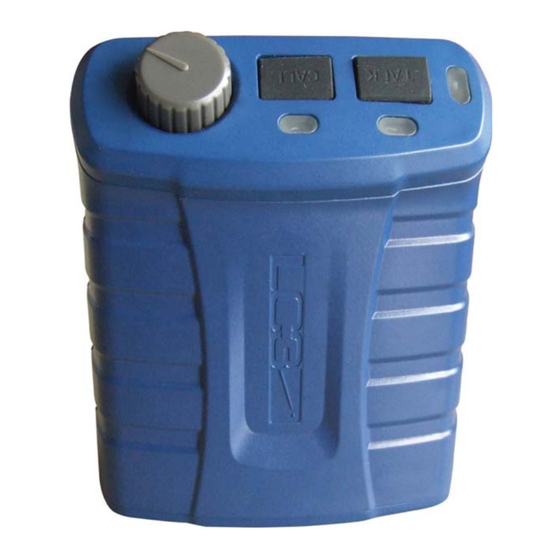

- Page 3 1. QUICK START 1. Connect the BK-801 belt pack to a intercom main station by XLR-3 cable. If belt pack receives DC power, the Power LED will light. 2. Turn volume control knob to the end by anticlockwise rotation, then plug in the headset. 3.
- Page 4 2. BASIC OPERATION • «Mic» button Mic button turns on or off the microphone of connected headset and the microphone indication LED. When the microphone is on, it collects the voice and sent it to the intercom system. • «Call» button Pressing call button will send a call signal to the intercom system.
- Page 5 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
