WEST UNICA-PP 962 Fitting Instruction

Push Pull Handle
Fitting Instruction
contents components
A : Lock Case 1pc
B : Front Panel 1pc
C : Outer Handle 1pc
D : Inner Handle 1pc
E : Inner Rosette 1pc
F : Fixing Screw 2pcs
！(For Steel Door:M4x16 Flat Head Screw,For Wooden Door:M4x20 Flat Head Tapping Screw)
G : Fixing Screw 2pcs
(M5x40 Flat Head Screw D=8)
H : Fixing Screw 2pcs
(M5x35 Flat Head Screw D=8)
*A,B and F are not included in xed handle.

How to install

1.Install lock case(A) and front panel(B) with xing screw(F).
*Make sure direction of the latch.
2.Install outer handle(C) and inner rosette(E) and x it by xing screw(H).
*Make sure direction of the inner rosette.
*Make sure lock case and rosettes are installed horizontally otherwise you will not be able to
close and open the door properly.
3.Place inner handle(D) onto inner rosette(E) and x it by xing screw(G).

How to change the direction of the latch unit

1.Remove front panel and spread out the gate to pull out the latch unit.
Gate
Latch unit
Right hand
962 / 963 / 964
Inside
D
G

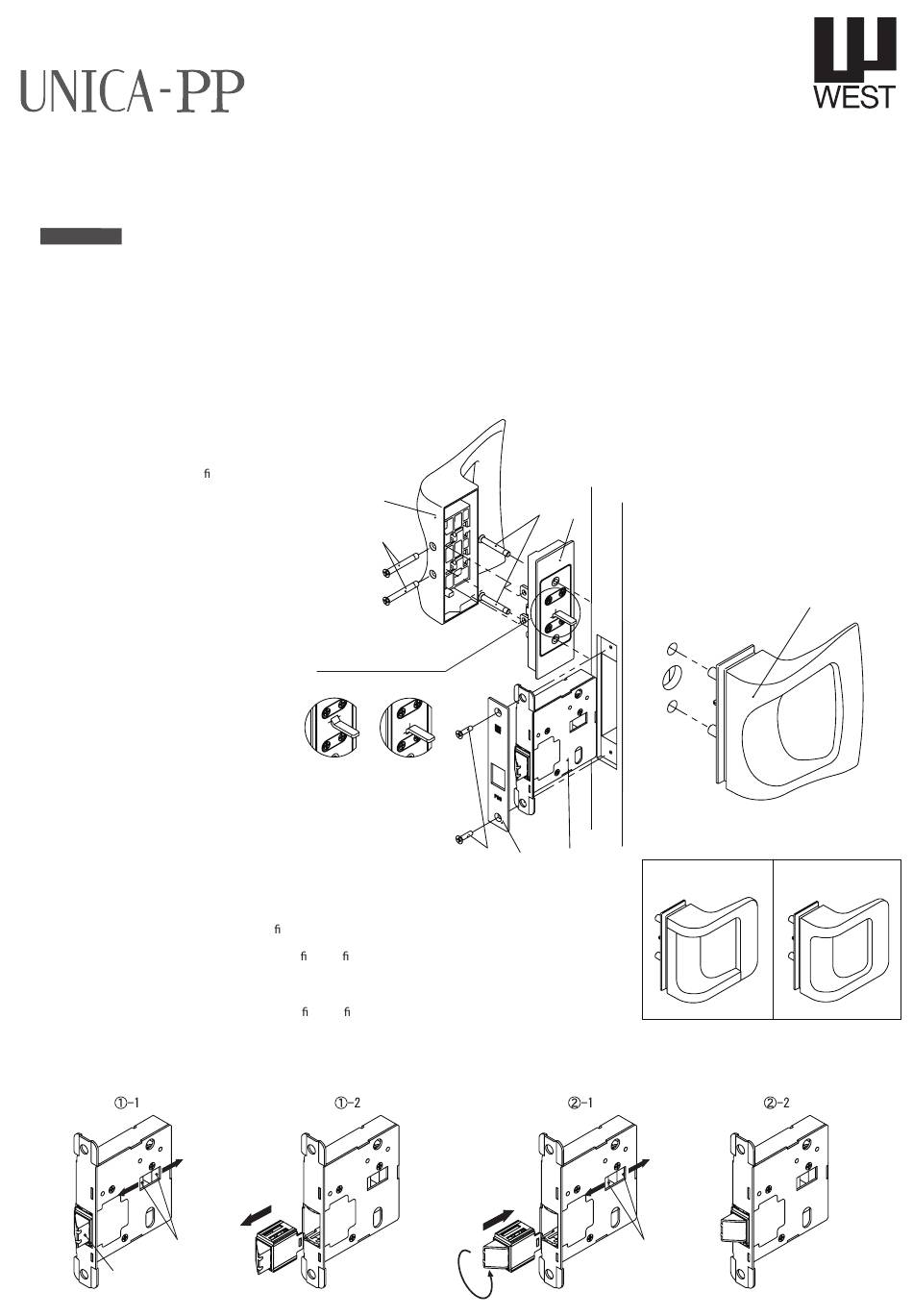

Detail Drawing
Right Hand Left Hand
Downward Upward
Pull out
H E
F B A
2.Turn backward the latch unit and put it back.
Put it back
Backward
Outside
*Shows 962.
The same goes for 963 and 964.
963 964
Gate
Left hand
C
