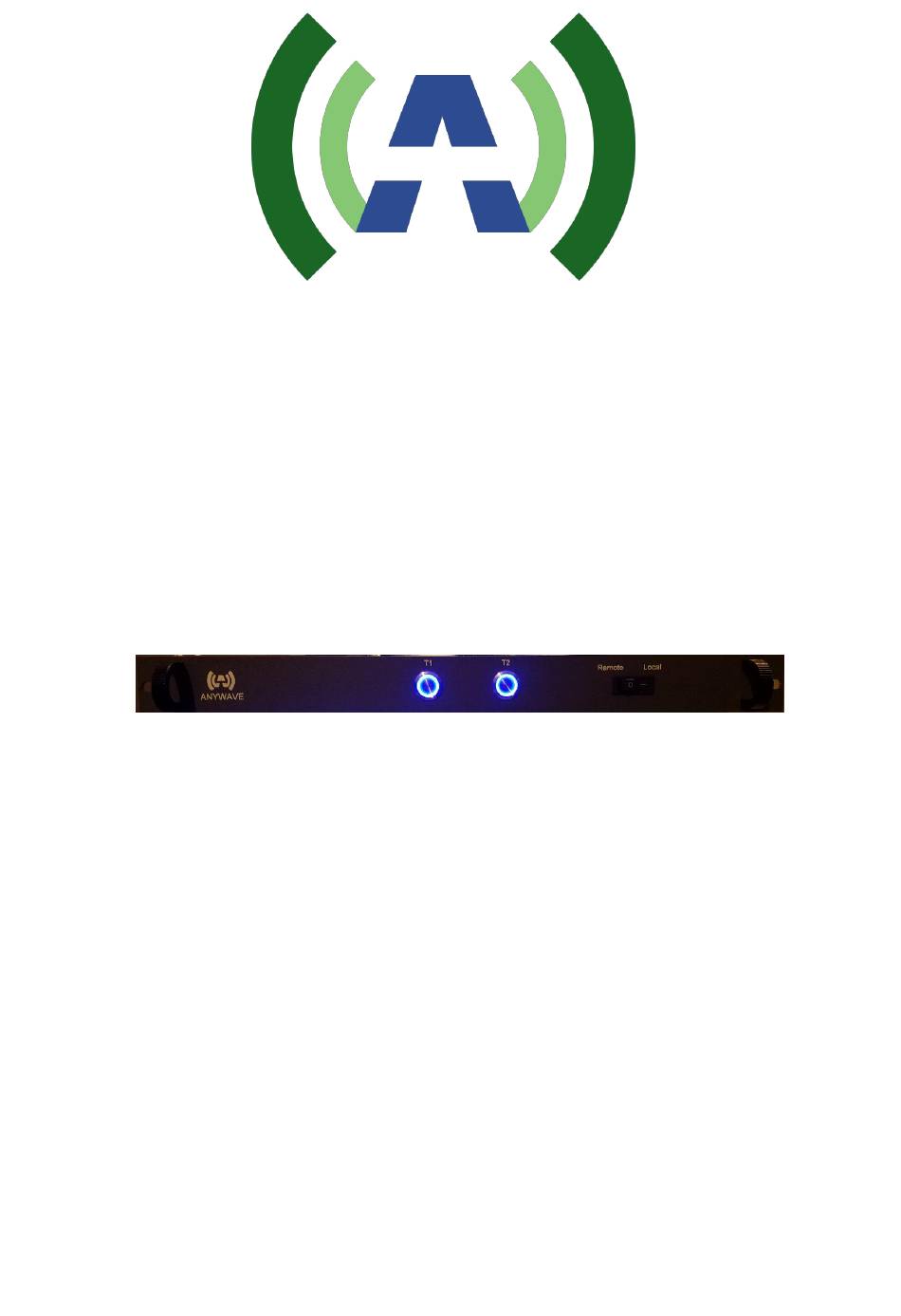

- Page 1 ANYWAVE RF Switch Controller User Manual SRFC-1+1-N Version 2.0 January 6th 2017...
- Page 2 RF Switch Controller User Manual Copyright Notice Copyright © Anywave Communication Technologies, Inc. 2014, All rights reserved. No part of this publication may be reproduced, translated, transcribed, stored in a retrieval system, or transmitted into any form or by any means, without the express written permission of Anywave Communication Technologies, Inc.
- Page 3 Returns and Exchanges Written approval and a Return Authorization Number (RAN) are required from Anywave for all equipment returns. Please direct all return inquiries to the Anywave Service Department at support_us@anywavecom.com, providing the Sales Order number and Serial Number(s) of the equipment.
- Page 4 RF Switch Controller User Manual WARNING THE VOLTAGES, CURRENTS, AND RF ENERGY IN THIS EQUIPMENT ARE DANGEROUS. PERSONNEL MUST AT ALL TIMES OBSERVE ALL SAFETY WARNINGS, INSTRUCTIONS, AND REGULATIONS. IN THE CASE OF EMERGENCY, ENSURE THAT ALL POWER HAS BEEN DISCONNECTED.
-
Page 5: Table Of Contents
RF Switch Controller User Manual Contents Introduction ..................6 System Interconnect Diagram ............6 Auto Switching - Setup and Operation ..........7 Manual Switching - Setup and Operation ........13 Switching Operations - Summary ........... 16 RF-SWITCH-USR-DOC-V2.0, 1/6/2017 Page 5 of 20... -
Page 6: Introduction
The diagram below outlines the RF Switch Controller connections for switching between two Anywave LPTV Transmitters. The Switch Controller has a default IPaddress of 192.168.1.210 with login, user: anywavecom, password: anywavecom. Note: Please use the Anywave supplied DB9 serial cables to connect the Switch Controller to each PA. (IPaddress: 192.168.1.210) Figure 1 RF-SWITCH-USR-DOC-V2.0, 1/6/2017... -
Page 7: Auto Switching - Setup And Operation
LOCAL to REMOTE (note: the coaxial switching only works when both amplifiers are in REMOTE mode). The RF-CTRL-MODE setting is shown in Figure 2. When switched to REMOTE mode, the amplifiers’ front panel RF On/Off buttons will be inactive. Figure 2 Connect all cables/wires as shown in Figure 1, and then turn on the exciters, amplifiers, coaxial switch and switch controller. - Page 8 RF Switch Controller User Manual Figure 3 Figure 4 The Coaxial Switch Controller’s web pages are shown in figures 3 and 4. AMP_FWD_MIN is the minimum output power that is user to determine VALID amplifier adjusted. AMP_CHANGE_TIMES with the default setting of 3 means the total number of times that the switch controller will try to switch back and forth between two amplifiers using the coaxial switch before finally stopping.
- Page 9 FIG. 5, then the Controller will unmute amplifier B. Amplifier B will be ramped up from zero to the rated power as shown in figure 6 and 7. Amplifier A RF remains off. Figure 5 (Detected LPTV_A output is less than AMP_FWD_MIN, shut down both amplifiers, and to switch to LPTV_B) RF-SWITCH-USR-DOC-V2.0, 1/6/2017...
- Page 10 RF Switch Controller User Manual Figure 6 (Amplifier B power slowly ramping up) Figure 7 (Amplifier B at rated power) 4) Likewise, when the output power of amplifier B is less than AMP_FWD_MIN , the same steps as in step 3 are performed, shown in FIG. 8, 9 and RF-SWITCH-USR-DOC-V2.0, 1/6/2017...
- Page 11 RF Switch Controller User Manual Figure. 8 (Detected LPTV_B output is less than AMP_FWD_MIN, shut down both amplifiers, and to switch to LPTV_A) Figure 9 (Amplifier A power slowly ramping up) RF-SWITCH-USR-DOC-V2.0, 1/6/2017 Page 11 of 20...
- Page 12 RF Switch Controller User Manual Figure 10 (Amplifier A at rated power) 5) When both the output powers of amplifiers A and B are lower than AMP_FWD_MIN , the coaxial switch will switch back and forth between the two AMP_CHANGE_TIMES amplifiers until it hits the limit set by RF-SWITCH-USR-DOC-V2.0, 1/6/2017...
-
Page 13: Manual Switching - Setup And Operation
RF Switch Controller User Manual 4 Manual Switching - Setup and Operation Manual mode: Set the switch controller to LOCAL mode from its front panel Set the switch controller to LOCAL mode from its front panel then the controller will change from auto to manual in STATUS-> MODE in web page as shown in Figure 11. - Page 14 RF Switch Controller User Manual Figure 12 Figure 13 And in LOCAL (manual) mode, even when the controller detects the output power of the to-be-selected amplifier is lower than AMP_FWD_MIN, it will still switch to that amplifier. RF-SWITCH-USR-DOC-V2.0, 1/6/2017 Page 14 of 20...
- Page 15 RF Switch Controller User Manual 1. Manual switch back to amplifier A, following similar steps as above, shown in figures 14 and 15. Figure 14 Figure 15 RF-SWITCH-USR-DOC-V2.0, 1/6/2017 Page 15 of 20...
-
Page 16: Switching Operations - Summary
LPTV_USED changes from CHANGE_TO_B to LPTV_B). b. Settings: i. Switch Controller set to Remote mode (front panel switch). ii. Both PAs RF-CTRL-MODE set to Remote mode (disables PA front panel RF On/Off buttons). iii. Both PAs output power is greater than min threshold (amp_fwd_min) –... - Page 17 RF Switch Controller User Manual c. Notes: i. Coaxial switching only works (in Auto or Manual modes) when both amplifiers are in Remote mode. Setting PA to Local mode makes the PA front panel TX On/Off button active for local manual control.
- Page 18 RF Switch Controller User Manual the PA web interface) so that they do not communicate with the Switch Controller and local on/off operation is restored to the PA front panel buttons. 3. Manual Switch (Local) – Switch Controller in Local (Manual Mode): This is the normal Local (Manual) operating condition of the Switch Controller –...
- Page 19 TX off and into the load, the only way to turn both TXs off at the same time remotely is to turn the RF Off on both Exciters. The Switch Controller will still command one of the two PAs on, but without drive from the exciter, there will be no output power from either PA.
- Page 20 RF Switch Controller User Manual Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ RF-SWITCH-USR-DOC-V2.0, 1/6/2017 Page 20 of 20...
