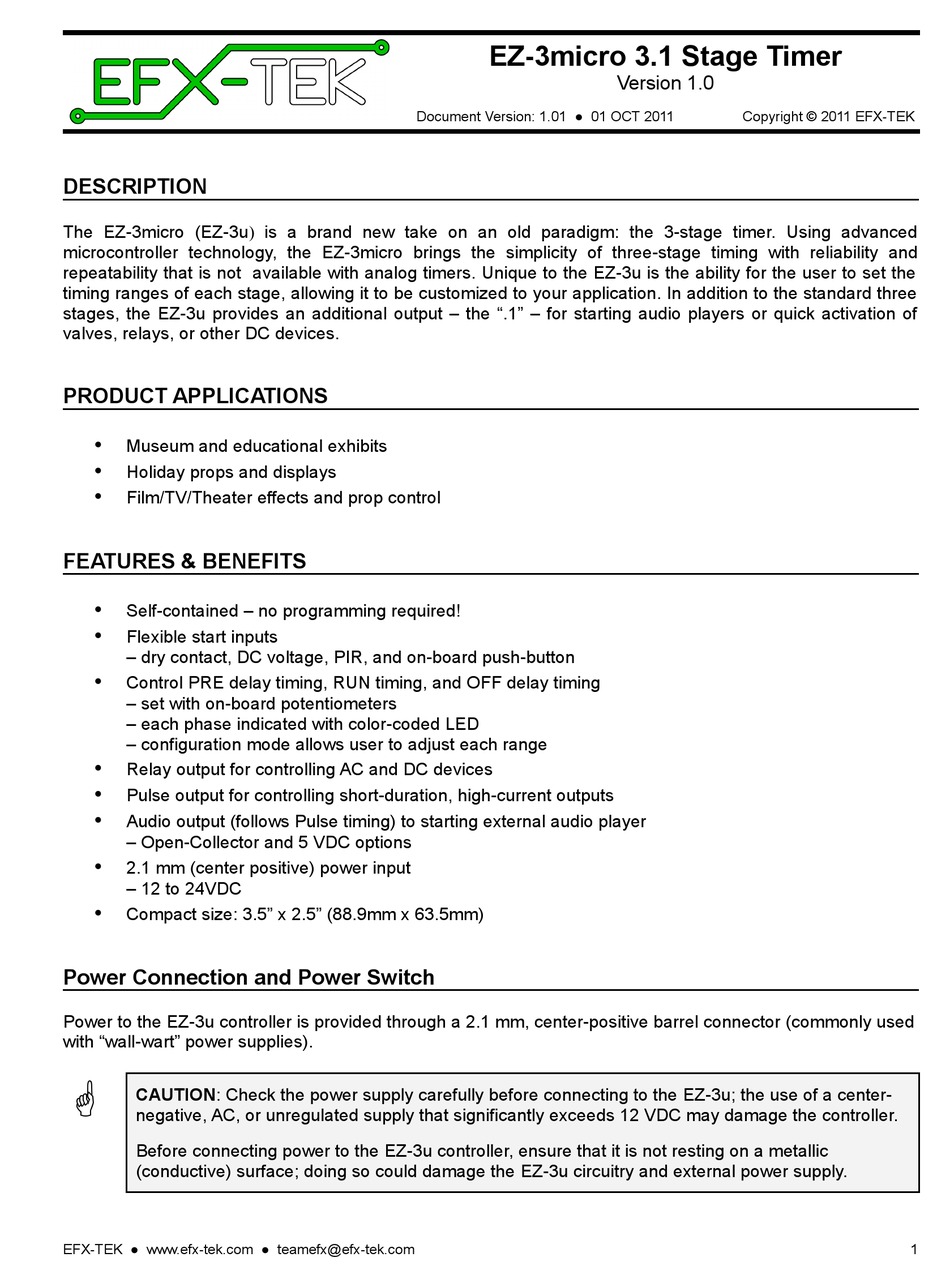

EFX-TEK EZ-3micro 3.1 Quick Start Manual

DESCRIPTION

The EZ-3micro (EZ-3u) is a brand new take on an old paradigm: the 3-stage timer. Using advanced
microcontroller technology, the EZ-3micro brings the simplicity of three-stage timing with reliability and
repeatability that is not available with analog timers. Unique to the EZ-3u is the ability for the user to set the
timing ranges of each stage, allowing it to be customized to your application. In addition to the standard three
stages, the EZ-3u provides an additional output – the ".1" – for starting audio players or quick activation of
valves, relays, or other DC devices.

PRODUCT APPLICATIONS

•
Museum and educational exhibits
•
Holiday props and displays
•
Film/TV/Theater effects and prop control
FEATURES & BENEFITS
•
Self-contained – no programming required!
•
Flexible start inputs
– dry contact, DC voltage, PIR, and on-board push-button
•
Control PRE delay timing, RUN timing, and OFF delay timing
– set with on-board potentiometers
– each phase indicated with color-coded LED
– configuration mode allows user to adjust each range
• Relay output for controlling AC and DC devices
•
Pulse output for controlling short-duration, high-current outputs
•
Audio output (follows Pulse timing) to starting external audio player
– Open-Collector and 5 VDC options
•
2.1 mm (center positive) power input
– 12 to 24VDC
•
Compact size: 3.5" x 2.5" (88.9mm x 63.5mm)

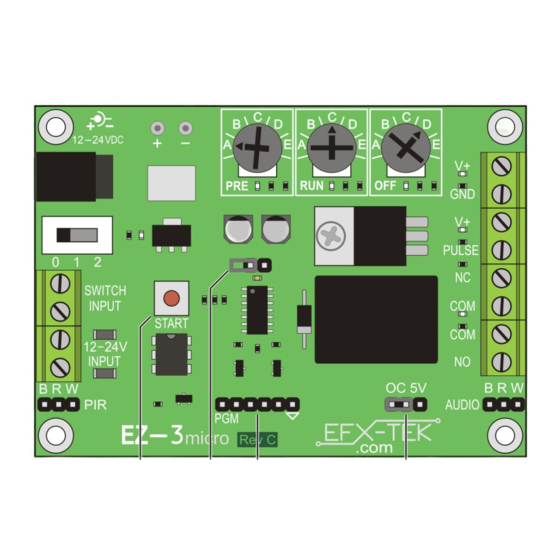

Power Connection and Power Switch

Power to the EZ-3u controller is provided through a 2.1 mm, center-positive barrel connector (commonly used
with "wall-wart" power supplies).

CAUTION: Check the power supply carefully before connecting to the EZ-3u; the use of a center-
negative, AC, or unregulated supply that significantly exceeds 12 VDC may damage the controller.
Before connecting power to the EZ-3u controller, ensure that it is not resting on a metallic
(conductive) surface; doing so could damage the EZ-3u circuitry and external power supply.
EFX-TEK ● www.efx-tek.com ● teamefx@efx-tek.com
EZ-3micro 3.1 Stage Timer
Document Version: 1.01 ● 01 OCT 2011
Version 1.0
Copyright © 2011 EFX-TEK
1
