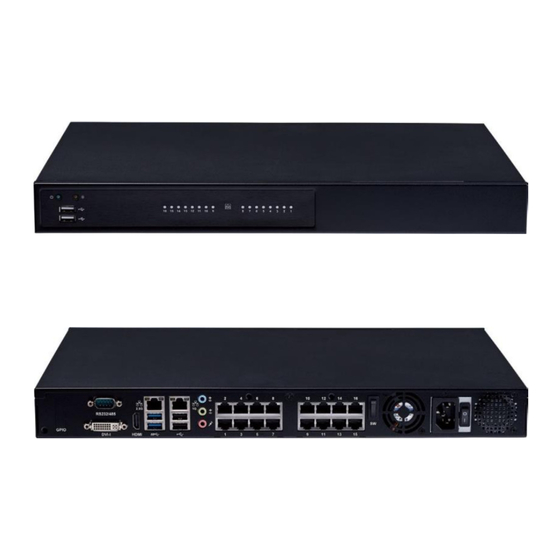

Video Intelligent Surveillance
NRP14162 Series
Note: The manual is subject to change without notice
diviotec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRP14162 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DivioTec NRP14162 Series

  • Page 1 Video Intelligent Surveillance NRP14162 Series Note: The manual is subject to change without notice diviotec.com...

  • Page 2: Table Of Contents

    Key Features ................1 GPIO Connector ..............17 Hardware Specifications ..............2 System Fan 2 ................18 Knowing Your NRP14162 Series ............3 USB 2.0 Connector ..............18 Front Panel .................. 3 HDD/PWR LED Wire ..............19 NRP14162 Rear Panel ..............4 SATA Connector .................
  • Page 3 Preface Chapter 4: BIOS Setup About BIOS Setup ................43 When to Configure the BIOS ............43 Default Configuration ..............44 Entering Setup ................44 Legends ..................44 BIOS Setup Utility ................46 Main ..................46 Advanced .................. 47 Chipset ..................55 Security ..................

  • Page 4: Chapter 1: Product Introduction

    Chapter 1: Product Introduction 1: P HAPTER RODUCT NTRODUCTION Key Features Overview ▪ Support Intel 8th Generation Intel Atom processor X series and Intel ® ® Celeron J series ® ▪ Max. 32GB DDR4 supported ▪ Dual display of HDMI and DVI-I ▪...

  • Page 5: Hardware Specifications

    Chapter 1: Product Introduction Hardware Specifications CPU Support ▪ Intel 8 Gen Intel Celeron J6412, Quad Core, 2.0GHz base frequency, Storage ® ® 2.6 GHz burst frequency (compatible with other Intel 8 Gen Intel Atom ▪ 2 x 3.5” SATA HDD support RAID 0,1 ®...

  • Page 6: Knowing Your Nrp14162 Series

    Chapter 1: Product Introduction Knowing Your NRP14162 Series LED Indicators Indicates the power status of the system. Front Panel Indicates the status of the hard drive. Dual USB Ports Used to connect USB 2.0 devices. PoE LAN LED Indicators Indicates the status of the LAN ports.

  • Page 7: Nrp14162 Rear Panel

    Chapter 1: Product Introduction NRP14162 Rear Panel 1x COM (RS232/RS485) Port (BIOS Support) Supports RS232 and RS485 compatible serial devices. DVI-I Used to connect a digital LCD panel. 1x COM (RS232/RS485) Port HDMI Used to connect a high-definition display. 1.0 GbE RJ45 16x PoE LAN Ports 2.5 GbE RJ45 1.0 GbE RJ45/2.5 GbE RJ45...

  • Page 8: Mechanical Dimensions (Rackmount Model)

    Chapter 1: Product Introduction Mechanical Dimensions Rackmount Model 92.00 92.00 22.00 106.00 430.00 478.00 6.15 465.50 6.50 15.85 44.50 49.50 15.85...

  • Page 9: Mechanical Dimensions (Desktop Model)

    Chapter 1: Product Introduction Mechanical Dimensions Desktop Model 348.00 347.00 430.00 44.50 49.50 430.00...

  • Page 10: Mechanical Dimensions (Wallmount Model)

    Chapter 1: Product Introduction Mechanical Dimensions Wallmount Model 60.00 348.00 160.00 347.00 60.00 106.00 86.00 443.80 457.80 430.00 44.50 50.50...

  • Page 11: Chapter 2: Jumpers And Connectors

    UMPERS AND ONNECTORS This chapter describes how to set the jumpers and connectors on the dry environments. A grounding strap is warranted whenever danger of NRP14162 series motherboard. static electricity exists. Before You Begin Precautions ▪ Ensure you have a stable, clean working environment. Dust and dirt can Computer components and electronic circuit boards can be damaged by get into components and cause a malfunction.

  • Page 12: Jumper Settings

    Chapter 2: Jumpers and Connectors Jumper Settings A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short.

  • Page 13: Locations Of The Jumpers And Connectors

    Chapter 2: Jumpers and Connectors Locations of the Jumpers and Connectors The figure below shows the location of the jumpers and connectors. FAN2 PWR_SW1 CN11 CN14 CN15 CN10 CN12...

  • Page 14: Jumpers

    Chapter 2: Jumpers and Connectors Jumpers Clear CMOS Connector type: 1x3 3-pin header Connector location: JP1 Settings Normal Clear CMOS 1-2 On: default...

  • Page 15: Connector Pin Definitions

    Chapter 2: Jumpers and Connectors Connector Pin Definitions External I/O Interfaces LAN1 Connector and USB 3.1 Ports LAN2 Connector and USB 2.0 Ports Connector type: RJ45 port with LEDs Connector type: RJ45 port with LEDs Dual USB3.1 ports Dual USB2.0 ports Connector location: CON3 Connector location: CON4 Status...

  • Page 16: Dvi-I And Rs485 Connector

    Chapter 2: Jumpers and Connectors DVI-I and RS485 Connector Connector location: CON1 C1 C2 C3 C4 Definition Definition Definition Definition DVI_D2_N DVI_D2_P SP1_R1_N VGA_RED_C DVI_CHECK VGA_GREEN_C VGA_BLUE_C DVI_DDC_SCL VGA_HSYNC_C VGA_GND DVI_DDC_SDA VGA_VSYNC_C DVI_D1_N DVI_D1_P +DVI_5V DVI_HPD_C DVI_D0_N DVI_D0_P VGA_DDCCLK_C VGA_DDCDATA_C DVI_CK_P DVI_CK_N SP1_DCD_N...

  • Page 17: Hdmi Connector

    Chapter 2: Jumpers and Connectors HDMI Connector Audio Connectors Connector type: HDMI Connector location: AUDIO1 Connector location: CON2 Line-in Line-out Mic-in Definition Definition HDMI_TX2_DP_CM HDMI_TX2_DN_CM HDMI_TX1_DP_CM HDMI_TX1_DN_CM HDMI_TX0_DP_CM HDMI_TX0_DN_CM HDMI_CLK_DP_CM HDMI_CLK_DN_CM HDMI_RT_SCL_SNK HDMI_RT_SDA_SNK V5P0_HDMI HDMI_RT_HPD_SNK...

  • Page 18: Poe Lan 8 Ports Rj45 Connector

    Chapter 2: Jumpers and Connectors PoE LAN 8 Ports RJ45 Connector PoE LAN 8 Ports RJ45 Connector Connector type: Phone Jack RJ45 2x4 Port PoE Connector type: Phone Jack RJ45 2x4 Port PoE Connector location: CON5 Connector location: CON6...

  • Page 19: Power Sw Connector

    Chapter 2: Jumpers and Connectors Power SW Connector Connector type: 1x2 2-pin header Connector location: PWR_SW1 Definition Definition PWRBTN_N...

  • Page 20: Internal Connectors

    Chapter 2: Jumpers and Connectors Internal Connectors 54V Power In Connector GPIO Connector Connector type: 2x2 4-pin header Connector type: 2x5 10-pin header Connector location: CN11 Connector location: CN5 10 9 Definition Definition Definition Definition P_GND_D P_GND_D 5.0V DC JACK IN P DC JACK IN P GPIO80 GPIO84...

  • Page 21: System Fan 2

    Chapter 2: Jumpers and Connectors System Fan 2 USB 2.0 Connector Connector type: 1x4 4-pin header Connector type: 2x5 10-pin header Connector location: FAN2 Connector location: CN15 10 9 Definition Definition Definition Definition +12V V5P0_USB2_HDR V5P0_USB2_HDR SYS2_FAN_TACO SYS2_FAN_PWM USB2_4_DN_CM USB2_5_DN_CM USB2_4_DP_CM USB2_5_DP_CM...

  • Page 22: Hdd/Pwr Led Wire

    Chapter 2: Jumpers and Connectors HDD/PWR LED Wire SATA Connector Connector type: 1x4 4-pin header Connector location: CN1 Connector location: CN14 Definition Definition Definition Definition LED_PWR_PU LED_PWR_LOGIC_N SATA_CON2_TXP LED_HDD_LOGIC_N LED_HDD_PU SATA_CON2_TXN SATA_CON2_RXN SATA_CON2_RXP...

  • Page 23: Raid Sata Connector

    Chapter 2: Jumpers and Connectors RAID SATA Connector RAID SATA Connector Connector location: CN7 Connector location: CN6 Definition Definition Definition Definition RSATA_CON1_TXP RSATA_CON2_TXP RSATA_CON1_TXN RSATA_CON2_TXN RSATA_CON1_RXN RSATA_CON1_RXP RSATA_CON2_RXN RSATA_CON2_RXP...

  • Page 24: Sata Power Connector

    Chapter 2: Jumpers and Connectors SATA Power Connector SATA Power Connector Connector type: 1x4 4-pin header Connector type: 1x4 4-pin header Connector location: CN2 Connector location: CN8 Definition Definition Definition Definition V12P0_SATA V12P0_RAID_1 V5P0_SATA V5P0_RAID_1...

  • Page 25: Sata Power Connector

    Chapter 2: Jumpers and Connectors SATA Power Connector Connector type: 1x4 4-pin header Connector location: CN9 Definition Definition V12P0_RAID_0 V5P0_RAID_0...

  • Page 26: Ngff M2 Connector Connector 1

    Chapter 2: Jumpers and Connectors NGFF M2 Connector Connector 1 Connector location: CN3 Definition Definition SATA_DEVSLP0 M2_SATA_RP M2_SATA_RN Definition Definition V3P3A_M2E V3P3A_M2E M2_SATA_TN M2_SATA_TP M2_SATA_LED_N CONNECTOR KEY MFG_DATA CONNECTOR KEY CONNECTOR KEY MFG_CLK CONNECTOR KEY CONNECTOR KEY CONNECTOR KEY CONNECTOR KEY CONNECTOR KEY M2E_SUSCLK M2E_SEL_N...

  • Page 27: Poe Switch Action Guidance

    Chapter 2: Jumpers and Connectors PoE Switch Action Guidance PoE Switch Deployment NRP14162 have a total of 16ch PoE ports 10/100 Mbps, 802.3af/at compliance with a total of 240W max (PSE). ▪ 802.3af support 16 ports @ 15W 1. AF Mode ▪...
  • Page 28 Chapter 2: Jumpers and Connectors 2. AT Mode Condition 1: Condition 2: Group A: Port 1, 2, 3, 4 Group A: Port 3, 4, 5, 6 Group B: Port 9, 10, 11, 12 Group B: Port 11, 12, 13, 14...
  • Page 29 Chapter 2: Jumpers and Connectors 3. AF/AT Multi-mode Condition 3: Condition 1: Group A: Port 5, 6, 7, 8 Group A: 1AT + 6AF Group B: Port 13, 14, 15, 16 Group B: Port: 1AT + 6AF...
  • Page 30 Chapter 2: Jumpers and Connectors Condition 2: Condition 3: Group A: 2AT + 4AF Group A: 3AT + 2AF Group B: 2AT + 4AF Group B: 3AT + 2AF...

  • Page 31: Block Diagram

    Chapter 2: Jumpers and Connectors Block Diagram DDR4 CH-A Adapter (DPS-410AB-2A) AC 110V Input ** Intel dropped HBR3 support 3200 MT/s; 51GB/s (MAX) SO-DIMM Module DDR4 CH-B DDI-0 (HBR2) CH7157A-BFI 3200 MT/s; 51GB/s (MAX) Power Module 54V 12V DDI-1 (HBR2) PTN3360DBS Elkhart Lake DVI-I...

  • Page 32: Chapter 3: System Setup

    Chapter 3: System Setup 3: S HAPTER YSTEM ETUP Removing the Chassis Cover Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage. 1. Remove the 5 screws on the system’s top cover. 2.
  • Page 33 Chapter 3: System Setup Complete!

  • Page 34: Installing The 3.5" Hdd

    Chapter 3: System Setup Installing the 3.5” HDD 1. Remove the HDD bracket.
  • Page 35 Chapter 3: System Setup 2. Set 3.5” HDD into the HDD bracket. (Use #6-32 type screw) #6-32 screw x4 (3.5” HDD lock on bracket)
  • Page 36 Chapter 3: System Setup 3. Plug in the HDD SATA cable** and SATA power cable*, lock the screw 4. Remove the HDD bracket (Left). into the system. Note: HDD SATA cable should be installed at CN6 of the mainboard. SATA power cable should be installed at CN8 of the mainboard.
  • Page 37 Chapter 3: System Setup 5. Set 3.5” HDD into the HDD bracket (use #6-32 type screw). #6-32 screw x4 (3.5” HDD lock on bracket)
  • Page 38 Chapter 3: System Setup 6. Set 2.5” SSD into the HDD bracket (use M3 type screw). M3 screw x4 (2.5” HDD lock on bracket)
  • Page 39 Chapter 3: System Setup 7. Plug in the HDD SATA cable** and SATA power cable*, lock the screw 8. Plug in the SSD SATA cable** and SATA power cable*. into the system. Note: HDD SATA cable should be installed at CN7 of the Note: 2.5”...
  • Page 40 Chapter 3: System Setup 9. Tightening the cable for 2.5” SSD.
  • Page 41 Chapter 3: System Setup 9. Tightening the cable for 3.5” SSD. Complete!

  • Page 42: Installing Memory So-Dimm (Use Ddr4 So-Dimm)

    Chapter 3: System Setup Installing Memory SO-DIMM (Use DDR4 SO-DIMM) 1. Locate the DIMM memory sockets. 2. Release the locks on the DIMM memory sockets. Insert the modules into the sockets at a 90 degree angle. Apply firm even pressure to each end of the modules until they slip into the sockets.
  • Page 43 Chapter 3: System Setup 3. Release the locks on the second DIMM memory sockets. Insert the other module into the sockets also at a 90 degree angle. Apply firm even pressure to each end of the modules until they slip into the sockets.

  • Page 44: Installing M.2 Ssd

    Chapter 3: System Setup Installing M.2 SSD 2. Insert the M.2 SSD into the M.2 slot at a 45 degree angle until the 1. First, remove the screw on the board. gold -plated connector on the edge of the module completely dissapears inside the slot.
  • Page 45 Chapter 3: System Setup 3. With the module fully inserted, tighten a screw into the mounting hole 4. Complete! on the module to secure it.

  • Page 46: Chapter 4: Bios Setup

    BIOS is updated in the future. second, to make settings appropriate for the way you use the computer. To check for the latest updates and revisions, visit the Diviotec website at When to Configure the BIOS diviotec.com.

  • Page 47: Default Configuration

    Chapter 4: BIOS Setup Default Configuration Legends Most of the configuration settings are either predefined according to Function the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There Moves the highlight left or right to select a menu.
  • Page 48 Chapter 4: BIOS Setup Scroll Bar When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields. Submenu When “”...

  • Page 49: Bios Setup Utility

    Advanced Chipset Security Boot Save & Exit ▲ BIOS Information BIOS Vendor American Megatrends Product Name NRP14162 Series BIOS Version RN14-003 x64 Build Date and Time 10/12/2021 14:20:57 Processor Information Intel(R) Celeron(R) J6412 @ 2.00GHz 0x90661 Microcode Revision Stepping Memory Information...

  • Page 50: Advanced

    Chapter 4: BIOS Setup Advanced CPU Configuration This section is used to view CPU status and configure CPU parameters. The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if Aptio Setup - AMI enabled, will improve the performance of your system or let you set some Advanced...
  • Page 51 Chapter 4: BIOS Setup Power & Performance CPU - Power Management Control This section is used to configure the power management features of the CPU. Aptio Setup - AMI Advanced Aptio Setup - AMI CPU - Power Management Control Select the performance state Advanced that the BIOS will set starting from reset vector.
  • Page 52 Chapter 4: BIOS Setup ® Intel Speed Shift Technology Trusted Computing Enables or disables Intel Speed Shift Technology support. Enabling it will This section is used to configure Trusted Platform Module (TPM) settings. expose the CPPC v2 interface to allow hardware controlled P-states. Aptio Setup - AMI C states Advanced...
  • Page 53 Chapter 4: BIOS Setup NCT5525D Super IO Configuration Pending operation Scheduling an operation for the security device. This section is used to configure the serial port. Note: Your computer will reboot during restart in order to change state of security device. Aptio Setup - AMI Advanced Platform Hierarchy...
  • Page 54 Chapter 4: BIOS Setup Serial Port 1 Configuration Hardware Monitor This section is used to configure serial port 1. This section is used to monitor hardware such as temperature, fan speed and voltages. Aptio Setup - AMI Advanced Aptio Setup - AMI Advanced Serial Port 1 Configuration Enable or Disable Serial Port...
  • Page 55 Chapter 4: BIOS Setup System Fan Setting System Fan Setting This section is used to configure system fan settings. Aptio Setup - AMI Advanced Aptio Setup - AMI System Fan Setting Fan control mode select Advanced System Fan mode [SMART FAN IV] Step up time System Fan Setting Smart Fan function setting...
  • Page 56 Chapter 4: BIOS Setup Temperature 1 to Temperature 4 USB Configuration Configures the temperature setting. This section is used to configure USB parameters. FD/RPM 1 to FD/RPM 4 Aptio Setup - AMI The value of Fan Duty/RPM when temperature is T1 to T4. Advanced Critical temperature USB Configuration...
  • Page 57 Chapter 4: BIOS Setup Network Stack USB Mass Storage Driver Support Enables or disables USB Mass Storage Driver Support. This section is used to configure the network stack. USB Transfer Time-out Aptio Setup - AMI The time-out value for control, bulk, and interrupt transfers. Advanced Device Reset Time-Out Network Stack...

  • Page 58: Chipset

    Chapter 4: BIOS Setup SDIO Configuration Chipset This section is used to configure the SDIO access mode. This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.
  • Page 59 Chapter 4: BIOS Setup System Agent (SA) Configuration Memory Configuration Aptio Setup - AMI Aptio Setup - AMI Chipset Chipset Memory Configuration Parameters System Agent (SA) Configuration Memory Configuration Safe Mode enable support. Option will be used for changes/WAS that may affect an VT-d Supported Memory RC Version...
  • Page 60 Chapter 4: BIOS Setup Graphics Configuration GTT Size Configures the GTT memory size. Aptio Setup - AMI Aperture Size Chipset Configures the Aperture size. Graphics Configuration Graphics turbo IMON current Note: above 4MB MMIO BIOS assignment is automatically enabled when values supported (14-31) selecting 2048MB aperture.
  • Page 61 Chapter 4: BIOS Setup PCH-IO Configuration SATA Configuration This section is used to configure PCH-IO configuration. This section is used to configure the SATA device option settings. Aptio Setup - AMI Aptio Setup - AMI Main Advanced Chipset Security Boot Save &...
  • Page 62 Chapter 4: BIOS Setup SATA Ports Multiplier USB Configuration Enables or disables ports multiplier. Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit SATA Test Mode Enables or disables test mode. USB Configuration Option to enable Compliance Mode.
  • Page 63 Chapter 4: BIOS Setup USB PDO Programming PCH-IO Configuration Select ‘Enabled’ if port disable override functionality is used. This section is used to configure PCH-IO configuration. Aptio Setup - AMI USB Overcurrent Select ‘Disabled’ for pin-based debug. If pin-based debug is enabled but Main Advanced Chipset...

  • Page 64: Security

    Chapter 4: BIOS Setup Security Secure Boot Aptio Setup - AMI Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Main Advanced Chipset Security Boot Save & Exit System Mode Setup Secure Boot feature is Active Password Description Set Administrator Password if Secure Boot is Enabled.

  • Page 65: Boot

    Chapter 4: BIOS Setup Boot Save & Exit Aptio Setup - AMI Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Save & Exit Main Advanced Chipset Security Boot Save Changes and Reset Exit the system after saving Boot Configuration Select the keyboard NumLock the changes.
  • Page 66 Chapter 5: Storage RAID Setup 5: S RAID S HAPTER TORAGE ETUP Hardware Setup NRP14162 have RAID 0, 1, SPAN mode to enhance the storage management function. Before setting the RAID function, you must complete the HDD installation first, the corresponding port number as below. HDD Port No SATA Channel...
  • Page 67 Chapter 5: Storage RAID Setup Starting RAID Manager Tool RAID Program Main Menu When powering on the computer, immediately press <Ctrl + R> to access the RAID Manager Tool UI. Here, the user may start building the RAID function on the system. The main menu allows you to select from several setup functions.
  • Page 68 Chapter 5: Storage RAID Setup Status Status Description Good Volume set is healthy. The user’s data is accessible. Volume set has seen a problem but the user’s data is still Degraded accessible by using the array’s redundancy data. Functionality Volume set is currently being rebuilt. The user’s data is Rebuilding accessible.
