Summary of Contents for Cretors 7906
- Page 1 7700-SC/E/SC-E 176 MITTEL DRIVE, WOOD DALE, IL 60191 BOX PUMP MANUAL Models 7906 120Volt, Single Phase, 60 Hz 230 Volt, Single Phase, 50 Hz READ and UNDERSTAND these operating and safety instructions before operating this machine...
-
Page 2: Safety First
INTRODUCTION This manual contains information regarding your Cretors oil pumps. There is nothing, however, more important than the safety aids and warnings that are found throughout this document. The Safety Alert Symbol is used to identify topics of primary safety concern wherever they appear. -
Page 3: Safety Alert Symbol
PURPOSE OF MANUAL This instruction manual is intended to familiarize owners with the operation and safety procedures associated with your Cretors oil pumps. This manual should be kept available to operating and maintenance personnel. -
Page 4: Product Identification

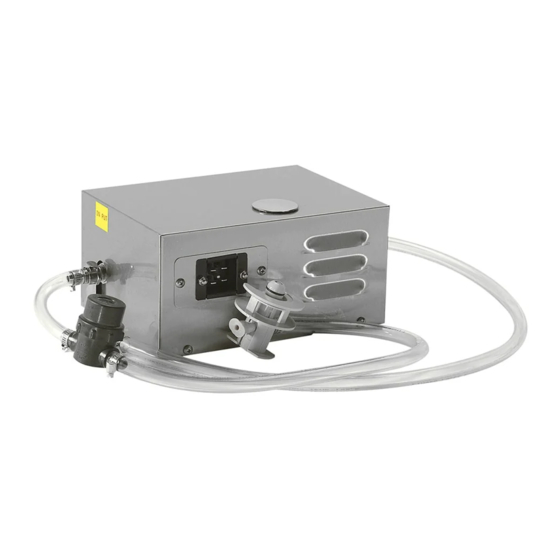

7700-SC/E/SC-E PRODUCT IDENTIFICATION CRETORS OIL PUMPS: MODELS: 12881 BOX PUMP MODEL 7906 BOX AUTOMATIC OIL PUMP MODEL Capacity: Electrical: 120 Volt, Single Phase, 60 Cycle, 120 Watts, 1 amps Dimensions: 11”D x 7”W x 5”H Net Weight: lbs. - Page 5 B. Connecting oil pump to power source Make certain that power supply circuit breakers are in the off position. Make certain all switches on the machine are in the off position before plugging in your 7906 model Cretors oil pumps.
- Page 6 7700-SC/E/SC-E 3. After three cycles, the amount of delivered will be consistent. Check this amount with the measuring cup. MACHINES AMOUNT OF OIL SET TIMER TO “X” SECONDS PT14 4.5 oz. 3 seconds MR16 5.5 oz. 4 seconds DI20 PR20 7.5 oz.
- Page 7 Additional copies of this manual can be obtained from Customer Service. Cretors warranties this machine to be free of defects in parts, materials and workmanship for two years. Please fill out and return the registration card to activate your warranty. If you have...
- Page 8 7906A 4673 QCDII BAG CONNECTOR SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. IT'S CONTENTS SHOULD NOT BE DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT THE WRITTEN CONSENT OF C. CRETORS & CO. SCALE SHEET 1 OF 2 ALL RIGHTS RESERVED.
- Page 9 CO. AND IS FURNISHED IN CONFIDENCE FOR THE SOLE PURPOSE OF 7906A SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. IT'S CONTENTS SHOULD NOT BE DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT THE WRITTEN CONSENT OF C. CRETORS & CO. SCALE SHEET 2 OF 2...
