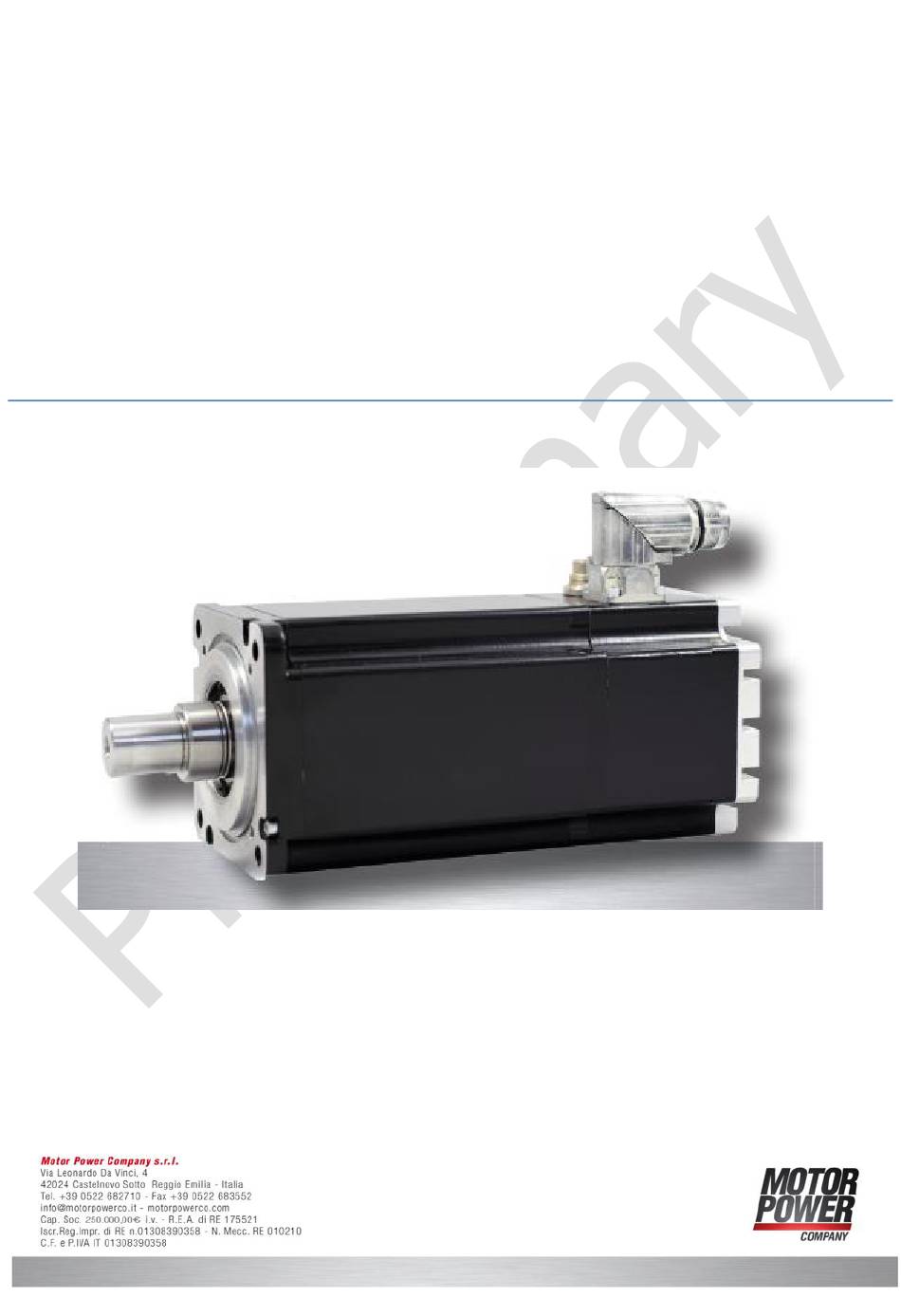

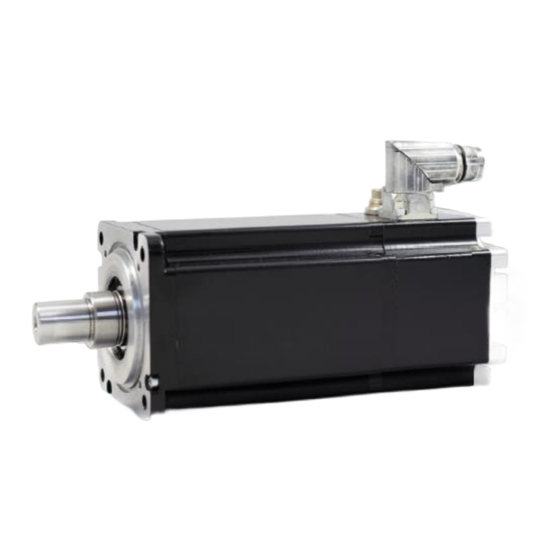

- Page 1 Installation Guide V1.1 DUET AD...
-
Page 2: Table Of Contents
DUET AD Installation Guide Pag. 2 1 Index Index ............................2 About this document ........................4 General Description ........................4 DUET AD ..........................4 Proper use ..........................5 Standards and guidelines ....................... 5 Safety instructions ........................6 Technical data, accessories ......................7 Electrical data........................ - Page 3 This guide delivered subject to the following conditions and restrictions: This guide contains proprietary information belonging to Motor power Company Srl. Such information is supplied solely for the purpose of assisting users of the DUET AD in its installation and configuration.
-
Page 4: About This Document
DUET AD Installation Guide Pag. 4 2 About this document These operating instructions introduce you to the DUET AD device and provide you with information on all the stages required for the installation of the device. Warning: Before commissioning, it is essential that the safety instructions in the relevant section are read and understood, and then observed! Non-observance can result in danger to persons or damage to the equipment. -
Page 5: Proper Use
In case of larger needs, customer specific solutions with special firmware are available on request. The DUET AD has except of the ball bearings no expendable parts and is hence excellently suited for continuous operation. The motors Device can be combined with planetary or worm gears with a multitude of gear ratios. -
Page 6: Safety Instructions
DUET AD Installation Guide Pag. 6 can only be tested once it has been installed. The information pertaining to EMC described in these instructions must be adhered to. Conformity: by means of the conformity declaration of the product (see appendix), Motor Power Company confirms that the device complies with the safety standards listed therein and with EMC standards. -
Page 7: Technical Data, Accessories
DUET AD Installation Guide Pag. 7 5 Technical data, accessories 5.1 Electrical data Speed range adjustable 0 ... 3000 Rpm Minimum device voltage 15 V DC Maximum device voltage 50 V DC Maximum ripple on supply voltage Max. 5 %... -
Page 8: Dimensions
DUET AD Installation Guide Pag. 8 *) The motor is specified for an ambient temperature of 40°C. The performance data refer to this ambient temperature. **) The protective system only refers to the device casing. The shaft is to be sealed by the client. The drive may only be used in an environment complying with IP54 if the shaft outlet has been installed such that it is protected from dust and water. -
Page 9: Duet Ad 2,8 02
DUET AD Installation Guide Pag. 9 Nominal voltage 48 Vdc Nominal power 480 W Rated speed 3000 Rpm Rated torque 1,53 Nm Rated current 11 Arms Weight approx. 2,3 Kg 5.5 DUET AD 2,8 02 Nominal voltage Nominal power 630 W... -
Page 10: Protective Functions
The ballast circuit switches on at 52V and off at 50V device voltage. It does only work and protect the device (and supply) if the ballast resistor is connected like shown in chapter 8.1 / 8.2. According to standard, Motor Power Company offers the braking resistor (must be ordered separately). 005016001114 RESISTENZA DI FRENATURA 200W 4,7OHM HSC2004R7J 005016001116 RESISTENZA DI FRENATURA 500W 4,7OHM RS PRO 6.2 Current limitation... -
Page 11: Installation
Axial load: 110N (applied on the shaft center) 8.1 EMI compatibility Electromagnetic radiated interferences occur in the DUET AD and the machine in which the drive is installed. Should no suitable protective measures be implemented, these interferences can influence the signals of control panel wirings and can endanger the system operational safety. -
Page 12: Ground Wire
DUET AD Installation Guide Pag. 12 Further measures can be necessary depending on the application. For complying with limits in accordance with DIN EN 61000-6-3 (emission standard for residential environments), further measures are required. These measures can be: o Assembling the device in metal housing, or metallizing plastic housing... -
Page 13: Motor Power Supply
8.3 Motor power supply Ref drawing EDADC *1) Lead colors refers to standard connection cables of Motor Power Company. *2) By default, Pin 4 is connected to the motor housing via the motor connector housing. Therefore, it is not suited as protective earth but only as functional earth. - Page 14 Ref drawing N13H12 Mating connector with cable (please order in addition) For DUET AD with 4-pin connector, pre-assembled connection cables are available in a range of lengths from stock. On one end these cables have the appropriate 4-pin right-angle connector already fitted.
-
Page 15: Signal Interface Supply
DUET AD Installation Guide Pag. 15 Mating connector is available: 005117000356 CONNETTORE VOL.POT. BSTA896FR0985202A000 4p/M17 8.4 Signal interface supply Plug: Round plug to DIN 45326, Binder, Series 723 The 12pin motor connector is for logic supply of the motor. Ref drawing EDADC... -
Page 16: Schematic Circuit Of The Digital Inputs
DUET AD Installation Guide Pag. 16 *) Lead colors refer to standard connection cables of Motor Power Company. The following cable lengths are available Cable length 5000mm MPC code 003108009843 Mating connector is available: 005117002496 CN VOL.SEG.M16 12P FM 99 5630 75 12 8.5 Schematic circuit of the digital inputs... -
Page 17: Schematic Circuit Of The Digital Outputs
8.6 Schematic circuit of the digital outputs Da rifare disegno Mating connector with cable (please order in addition) For DUET AD with 12-pin connector, pre-assembled connection cables are available in a range of lengths from stock. On one end these cables have the appropriate 12-pin right-angle connector already fitted. -
Page 18: Maximum Cable Length And Power Supply
DUET AD Installation Guide Pag. 18 8.7 Maximum cable length and power supply TO be defined *) Can be ordered at Motor Power Company If the supply of power and logic electronic is processed by separate power sources, the following cable lengths are available:... -
Page 19: Schematic Circuit For Power Supply Controller
► Using a soft start resistor or adeguate power supply. The grey section of the schematic circuit shows the precisely connection of DUET AD. It is also possible to connect in series more devices as shown. 1) The non-grey section of the schematic circuit shows only emblematical the connection of several motors. -
Page 20: Connection Motor Power Supply
DUET AD Installation Guide Pag. 20 9.2 Connection motor power supply... -
Page 21: Connection Signal Interface Supply
DUET AD Installation Guide Pag. 21 9.3 Connection signal interface supply 9.4 Can Open connection Interface Ref drawing EDADC Note: this connector is available only on DUET AD Can Open version Mating connector is available:... -
Page 22: Maintenance & Service
DUET AD Installation Guide Pag. 22 005117000580 CN VOL. M12 5P. FM IN PLASTICA 8A5000-325 10 Maintenance & Service 10.1 Maintenance, taking out of service and disposal Maintenance: This drive does not require maintenance. In the event of a fault, please contact us and only have the device repaired Motor Power Company. -
Page 23: Service & Support
DUET AD Installation Guide Pag. 23 10.2 Service & Support Should you have any questions or problems, please contact: Our local distributor Our Location Worldwide You can also visit our online support at: http://www.motorpowergroup.com...
