Summary of Contents for Memphis CORE 2

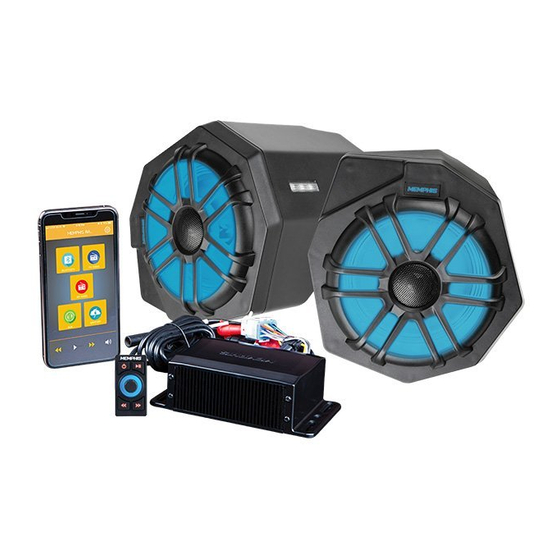

- Page 1 CORE 2 / CORE 2+ / CORE4 / CORE4+ DIRECT FIT OEM SIDE-BY-SIDE AUDIO SYSTEM PART NUMBER: WWW.MEMPHISCARAUDIO.COM COREMANUAL...
- Page 2 If warranty service is required, a return authorization number is required to return the product to Memphis Audio. Warranty shipments to Memphis Audio are the responsibility of the purchaser. Pack the product carefully in the original carton if possible Memphis Audio will not be responsible for damages incurred in shipment or due to improper packaging materials used by the purchaser.
- Page 3 STEP 2 / SUBWOOFER INSTALLATION If installing a CORE 2+ or CORE 4+ kit with vehicle specific powered subwoofer, install the subwoofer first. If you do not have a subwoofer included in your kit, skip to STEP 4.
- Page 4 MEMPHIS AUDIO DIRECT FIT OEM POWERSPORTS CORE KITS STEP 4 / FRONT SPEAKER POD INSTALLATION Follow the instructions included with your vehicle specific front speaker pods and secure accordingly. Run wiring pigtails from each speaker to center dash location and secure with zip ties.
- Page 5 MEMPHIS AUDIO DIRECT FIT OEM POWERSPORTS CORE KITS STEP 7 / MOUNTING SMC2A HIDE AWAY BLACK BOX SOURCE UNIT Using the included self-tapping screws, secure the black box to factory framework behind center dash location, making sure all harnesses and pigtails are accessible.
- Page 6 1 – VEHICLE SPECIFIC POWERED SUBWOOFER ENCLOSURE (ONLY INCLUDED WITH CORE 2+ KIT) CORE 4 KITS INCLUDE ALL CORE 2 KITS LISTED ABOVE AS WELL AS THE FOLLOWING. CORE4(+) KITS INCLUDE ALL THE ITEMS AS WELL AS THE ITEMS IN ORANGE 1 –...
- Page 7 MEMPHIS AUDIO DIRECT FIT OEM POWERSPORTS CORE KITS ACCESSORIES & WIRING IDENTIFICATION GENRRSPBRK REAR SPEAKER BRACKET (SEE PARTS LIST FOR MODELS) IN-DASH KNOCKOUT CONTROLLER MAIN RADIO TO BLACK BOX ANTENNA TO ANTENNA PIGTAIL RGB 5-WAY SPLITTER TO SMC2A BLACK BOX...
- Page 8 MEMPHIS AUDIO DIRECT FIT OEM POWERSPORTS CORE KITS SMC2A WIRING OVERVIEW POWER/AUDIO OUTPUTS Red// 12V+ Ignition Black // Ground Blue // Remote Turn On CONNECTIONS Yellow // B+ Battery White & Black // Left Front Speaker (-) 1. Front Outputs White // Left Front Speaker (+) 2.
