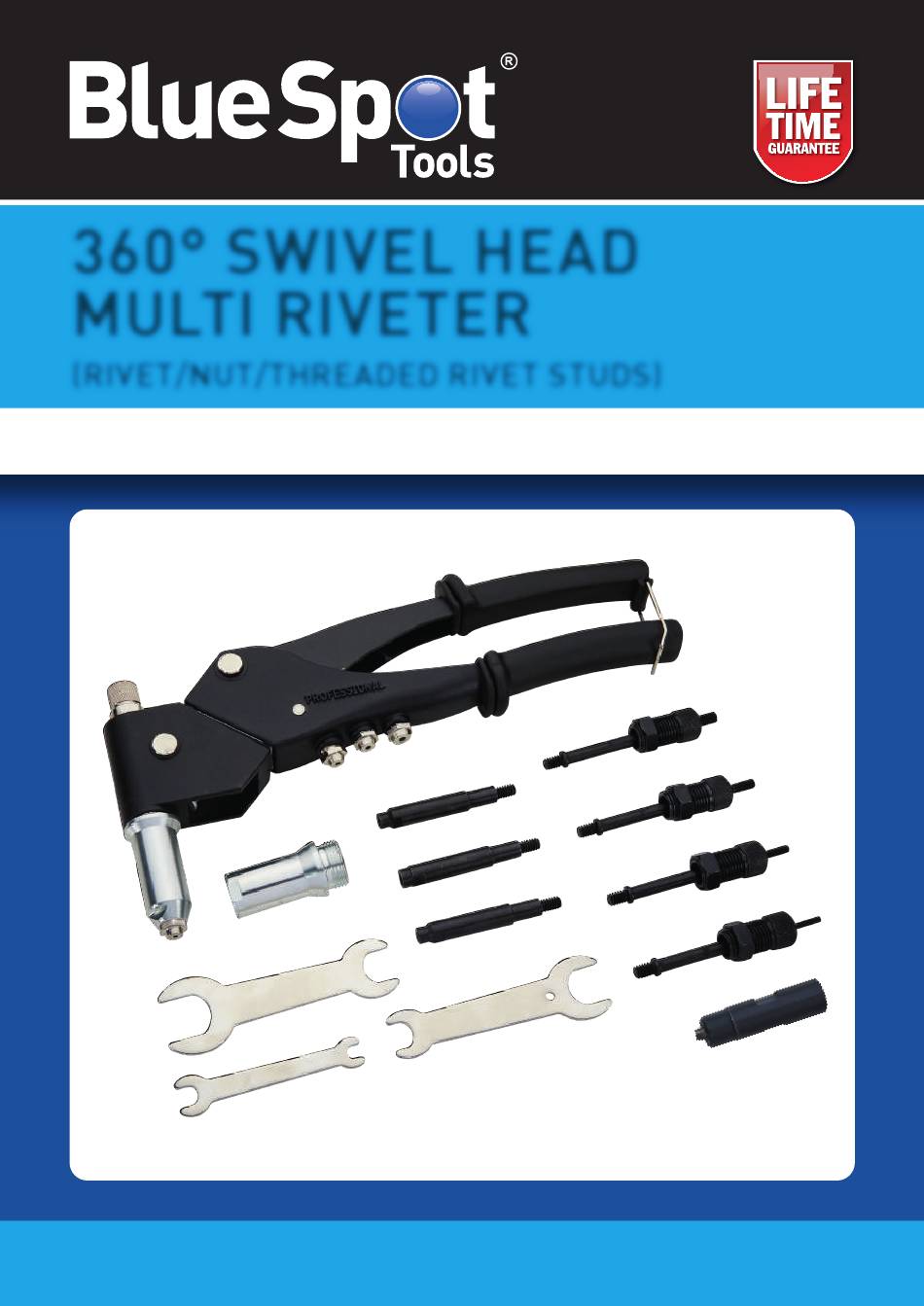

- Page 1 360° SWIVEL HEAD MULTI RIVETER (RIVET/NUT/THREADED RIVET STUDS) User Manual 09109...
- Page 2 Thank you for purchasing a Blue Spot Tools product, you can find further information on our range at www.BlueSpot.uk.com. Please ensure that you are using the product correctly and that all guidance and cautions are followed in accordance with the instructions.
- Page 3 Introduction The Blue Spot Tools 360° Swivel Head Multi Riveter (Rivet/Nut/Threaded Rivet Studs) is ideal for professional and DIY use. Suitable for use with steel and aluminium rivet nuts, rivets and threaded studs. The 360° swivel head makes it ideal for accessing hard to reach areas. Heavy-duty ergonomic handles.
- Page 4 Parts Diagram (continued) Screw depth adjustment / Pull bar Riveter Front sleeve for nose pieces 4mm Nose piece Front sleeve for mandrels 2.4mm Riveting nose piece 3.2mm Riveting nose piece 4.8mm Riveting nose piece Mandrel for riveting studs – M6 x 1 Mandrel for riveting studs –...
- Page 5 Rivets - Operation Note – We always recommend testing this first on a test piece of material until you become comfortable operating the nut riveter. 1. Assemble the riveter by fitting the jaw case (20) on the tool and the front sleeve for nose pieces (3).
- Page 6 Threaded Nut Rivets - Operation Note – We always recommend testing this first on a test piece of material until you become comfortable operating the nut riveter. Assemble the riveter by attaching the front sleeve for mandrels (5) into the riveter. Then select the correct sized mandrel for nut (13, 15, 17 or 19) for the size of the nut rivet that you are going to be using and securely screw into the riveter.
- Page 7 Stud Rivets - Operation Note – We always recommend testing this first on a test piece of material until you become comfortable operating the nut riveter. Assemble the riveter by attaching the front sleeve for mandrels (5) into the riveter. Then select the correct sized mandrel for riveting studs (9, 10 or 11) for the stud rivet to be used and securely screw into the riveter.
- Page 8 When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations. Contact Lifetime Guarantee at www.BlueSpot.uk.com Find out more about the Blue Spot Tools ® Tel: 0800 093 0115 Email: sales@bluespot.uk.com...
