Page 1

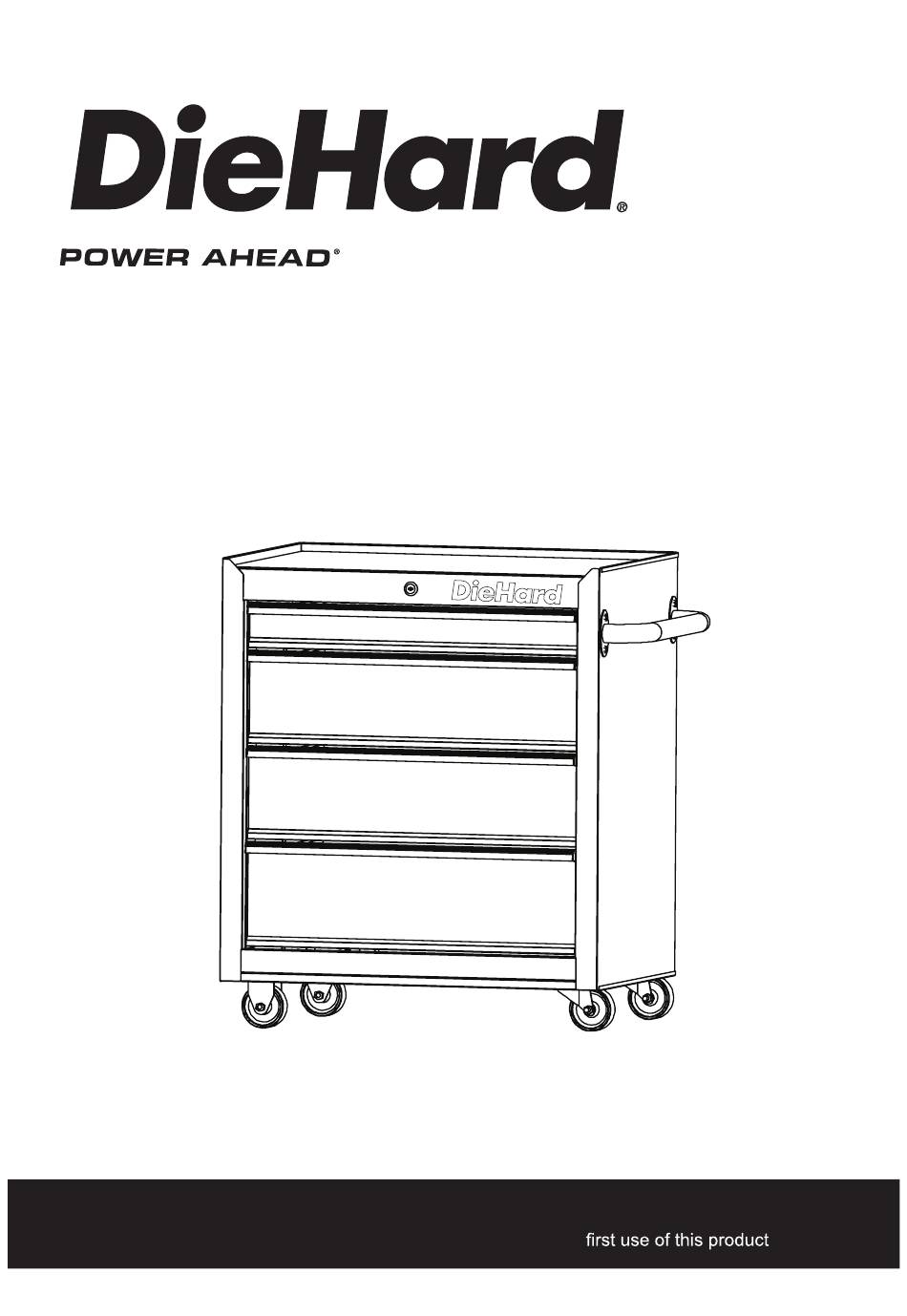

4-DRAWER 26-IN. MOBILE CABINET MANUAL 10889 CAUTION: Read and follow all Safety Rules and Operating instructions before...
Page 2
PRODUCT SPECIFICATIONS COMPONENTS SPECIFICATIONS Product size 26.5-In.W x 18.1-In.D x 33.1-In.H Product Weight 85.7 lbs. Maximum drawer capacity 33 lbs. SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or operate this product. Failure to follow may result in serious injury. Save all warnings and instructions for future reference.
Page 3
PART LIST PART DESCRIPTION Cabinet handle Swivel caster Fixed caster Top cabinet mat M6 x 20 mm Bolt M8 x 25 mm Bolt M8 Spring washer M8 Flat washer Lock 4 x AA 16 x BB 16 x CC M6x20 M8x25 Outer hexagon Outer hexagon...
Page 4
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 15 minutes (does not include unpacking time) Tools Required for Assembly (included): 10 mm Wrench, 14 mm Wrench Tools Required for Assembly (not included): Adjustable Wrench ASSEMBLY INSTRUCTIONS...
Page 5
ASSEMBLY INSTRUCTIONS Step 2. Install the handle (A) with M6×20(AA). Part Used 4 x AA M6x20 Outer hexagon bolt Step 3. Install the fixed casters (C) swivel casters (B) with M8x25 Part Used 16 x BB 16 x CC 16 x DD M8x25 Outer hexagon bolt Spring washer...
Page 6
This warranty gives you specific rights, and you may also have other rights which vary state to state. DieHard® name and logo are used under license. Product distributed by Transform SR Brands Management LLC, Hoffman Estates, IL 60179 Made in Cambodia.
