Summary of Contents for sescom SES-AX1001

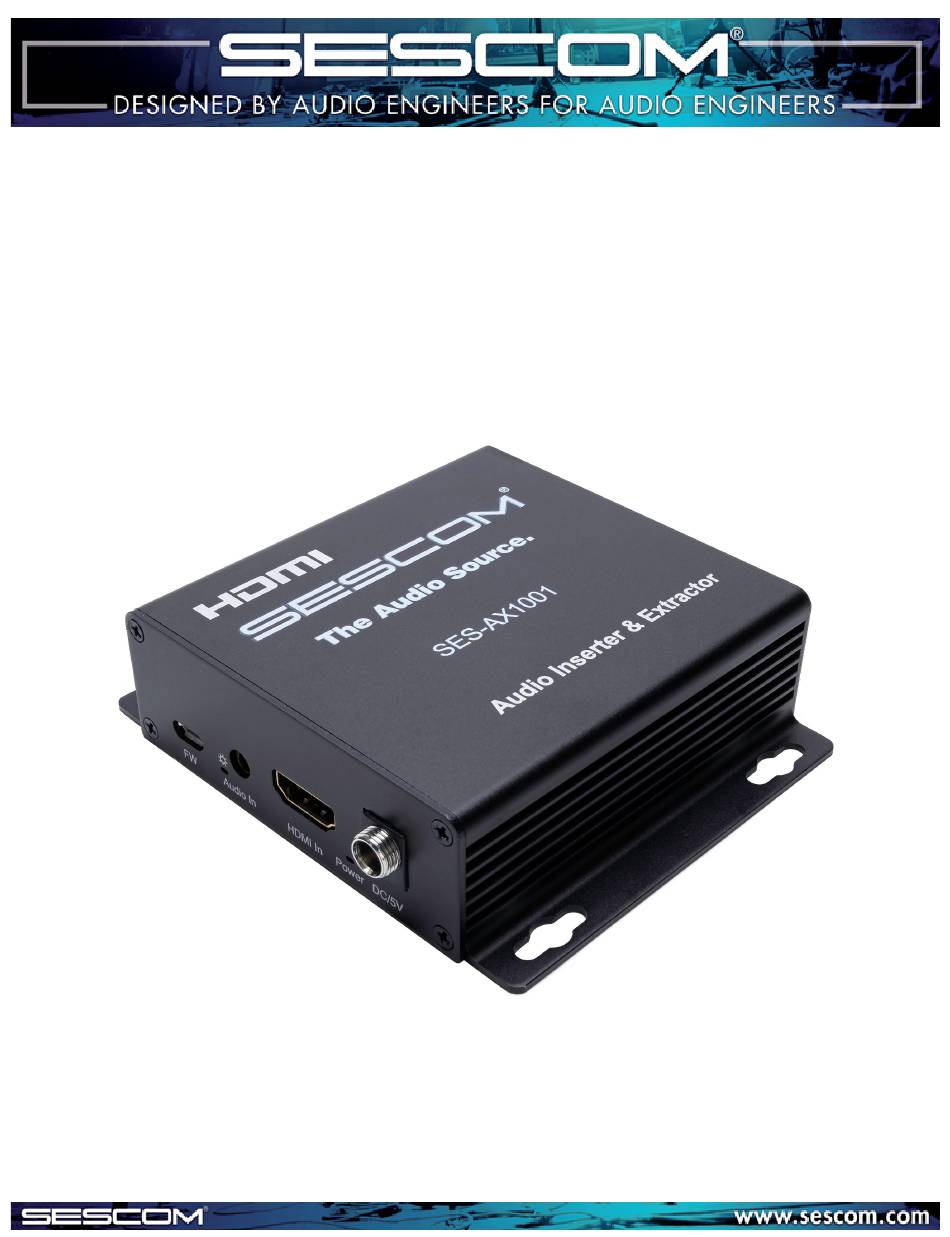

- Page 1 SES-AX1001 User Manual 4K HDMI Audio Embedder & Extractor...
- Page 2 Operating Instruction FEATURES: Supports audio embedding and extracting SPDIF 5.1 and Analog Audio PCM 2.0 Outputs 2 DIP Switches for audio embedding or extraction configuration Audio Uncompressed PCM, Dolby, DTS Supported Supports Resolutions up to 4K2K 60Hz Bandwidth: up to 18Gbps Compliance: HDCP 2.2 / 1.4 CEC Supported ...
- Page 3 Operating Instruction Connecting and Operating: 1) Connect your desired HDMI signal source into the HDMI input of the unit. 2) Connect the HDMI display device (such as: HDTV or Projector) into HDMI output of the unit. 3) Connect Optical audio cable or RCA audio cable to Amplifier. 4) Connect DC 5V power to the the unit.
- Page 4 Operating Instruction PANEL DESCRIPTIONS Front Panel Audio Indicator For factory use only Audio Input HDMI input Power Indicator Power Supply Input Back Panel Audio Configuration: 00: Audio Embedded Audio DIP Switch HDMI Output Indicator 01: PCM2.0 Audio Extraction HDMI Output SPDIF Audio Output 10: 5.1 Audio Extraction Audio Output Indicator...
- Page 5 4) Safety check: After repairs or service, ask the service to perform safety checks to confirm that the unit is in proper working condition. WARRANTY 1 Year PO Box 720 | Mount Marion, NY 12456 | (845) 246-1915 | www.sescom.com 100% Employee Owned Division of Tower Products Incorporated...
