700C: Installing the Collimating Lens Assembly (700-42)

The 700C temperature controlled mount is designed for customers who want to have the option of
collimating their divergent light sources (laser diodes). The 700-42 collimating lens assembly, which is
purchased separately, is pre-installed into a "lens housing" assembly shown in Fig.1.
Unscrew the lens cartridge from the 700C mount prior to installation of the 700-42. First, the black
protective lens cover must be removed from the front of the 700C. Gently unscrew the now visible lens
cartridge, see Fig. 2.
Photonics Technical Note #5
700 Series Temperature Controlled Mounts

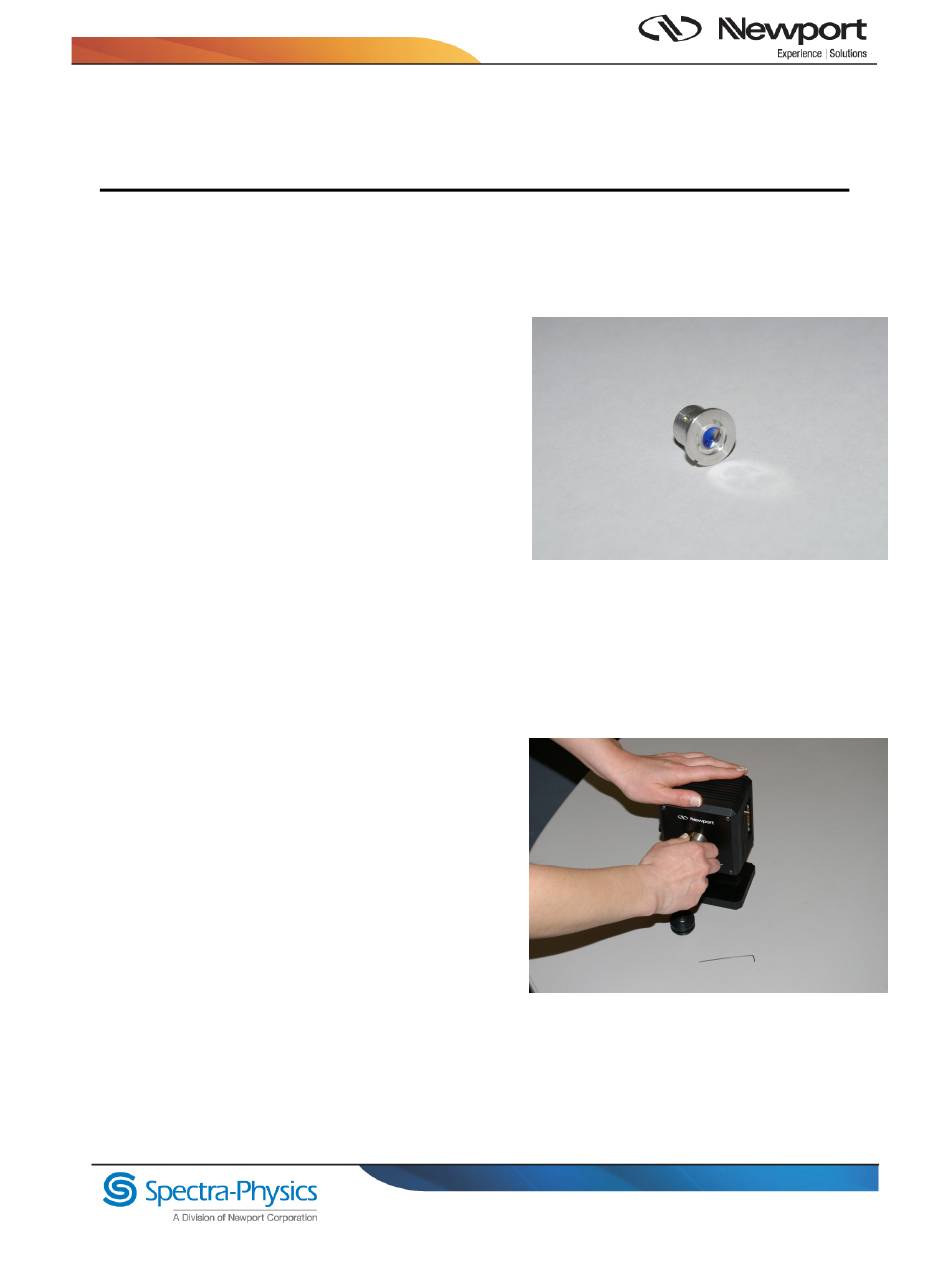

Figure 1. 700-42 collimating "lens housing"
assembly
Figure 2. 700-C mount shown with the black
protective lens cover and lens cartridge.
BS-10041 11/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700C and is the answer not in the manual?

Questions and answers

Summary of Contents for Newport 700C

  • Page 1 Unscrew the lens cartridge from the 700C mount prior to installation of the 700-42. First, the black protective lens cover must be removed from the front of the 700C. Gently unscrew the now visible lens cartridge, see Fig. 2.
  • Page 2 The 700-42 is then installed in the back of the lens cartridge that is shown in Fig. 3. The 700-42 is held in the lens cartridge via a set screw that is located on the lens cartridge. Figure 3. Installing 700-42 in the 700C mount Reassemble the mount and the collimation can be adjusted by turning the lens cartridge while observing/measuring the collimation.
